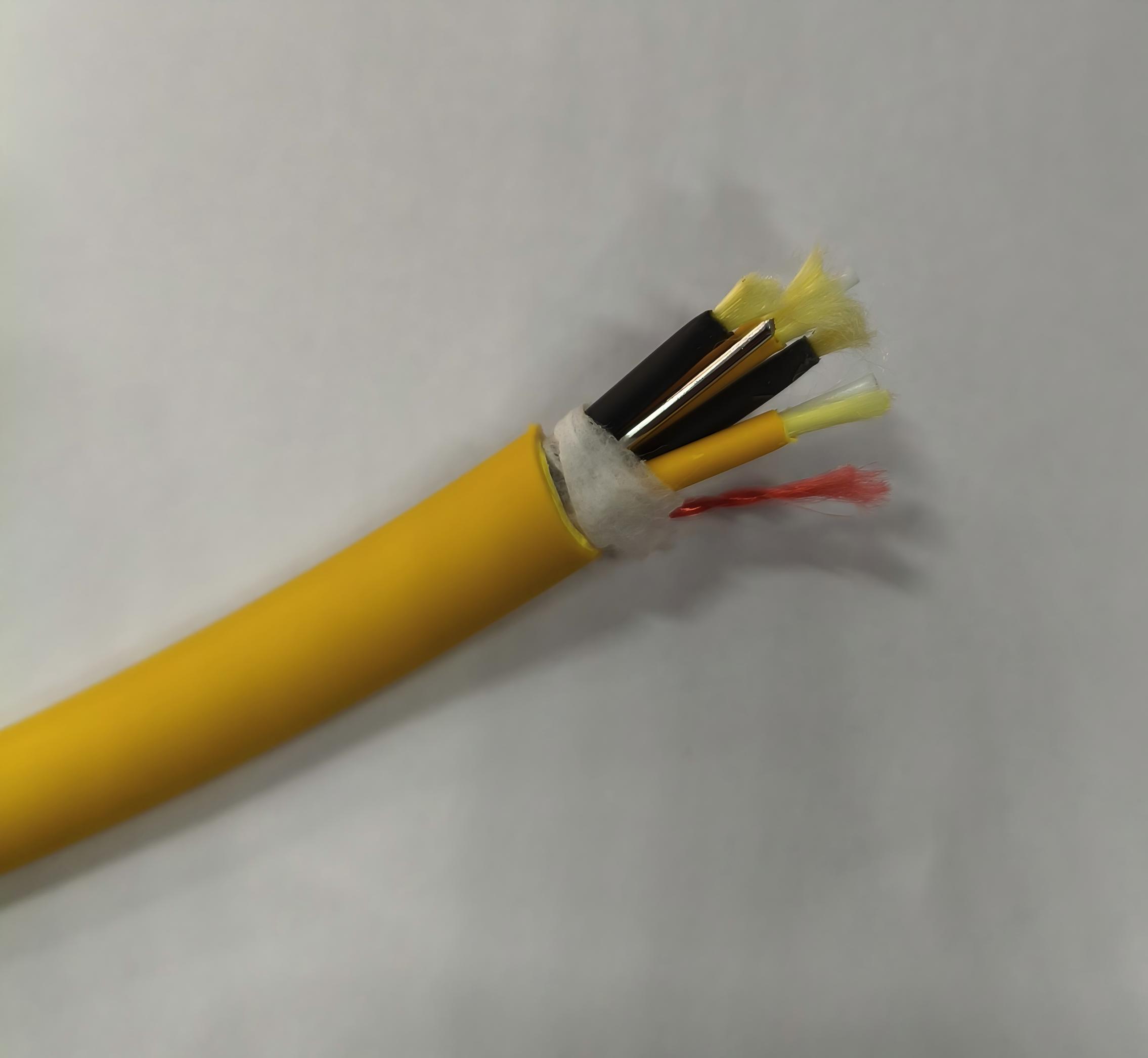

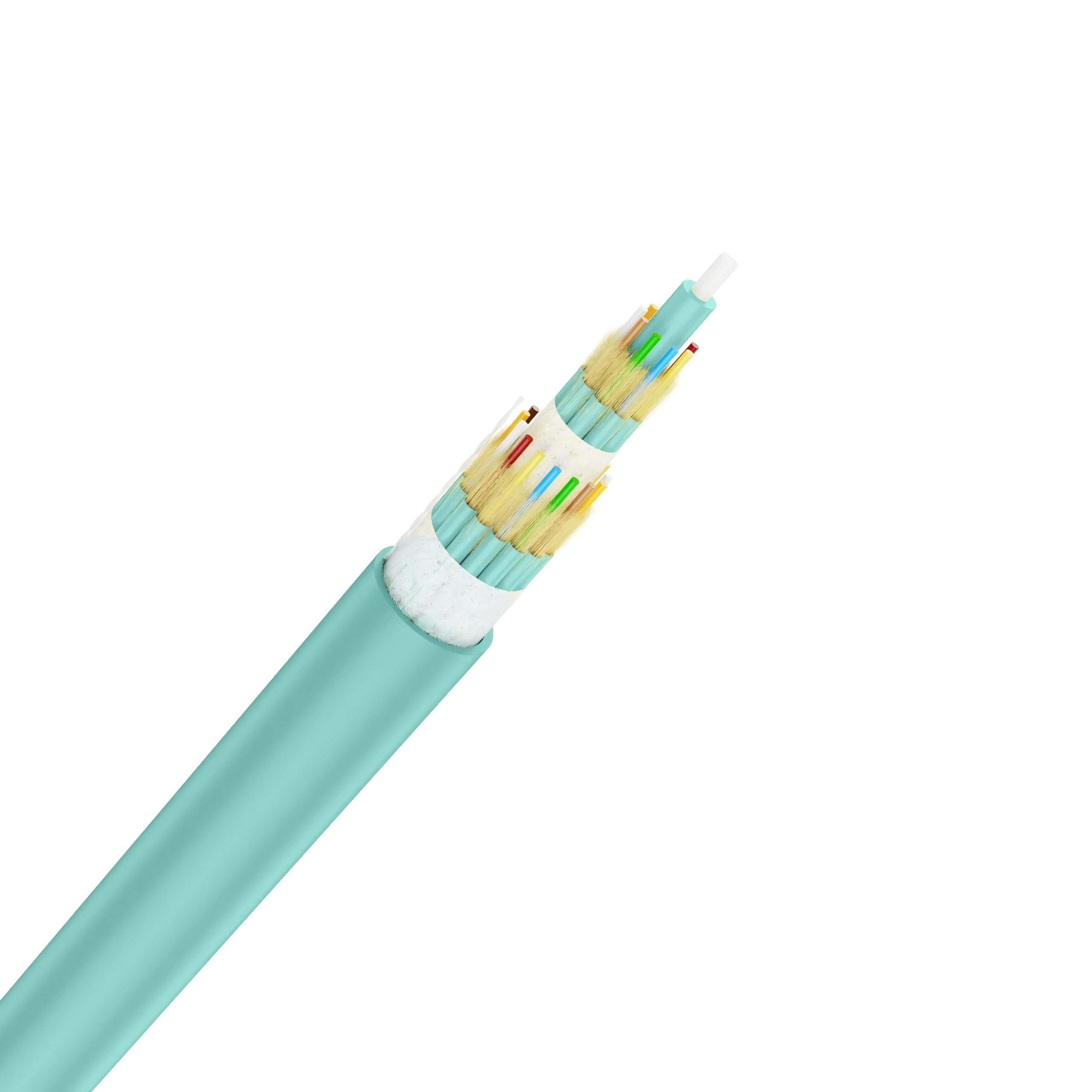

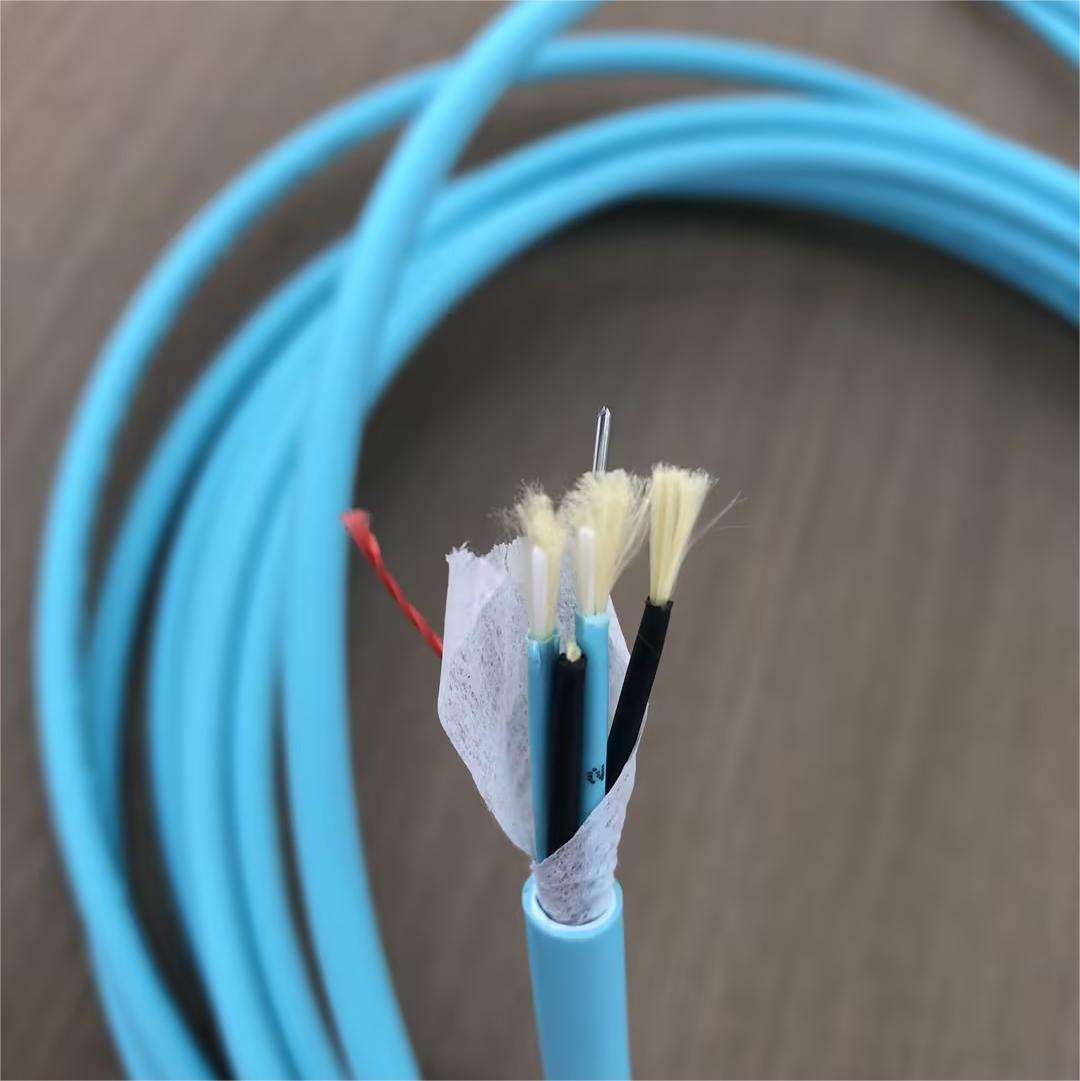

GJBFJH/V-(2-24)C Breakout Optical Fiber Cable

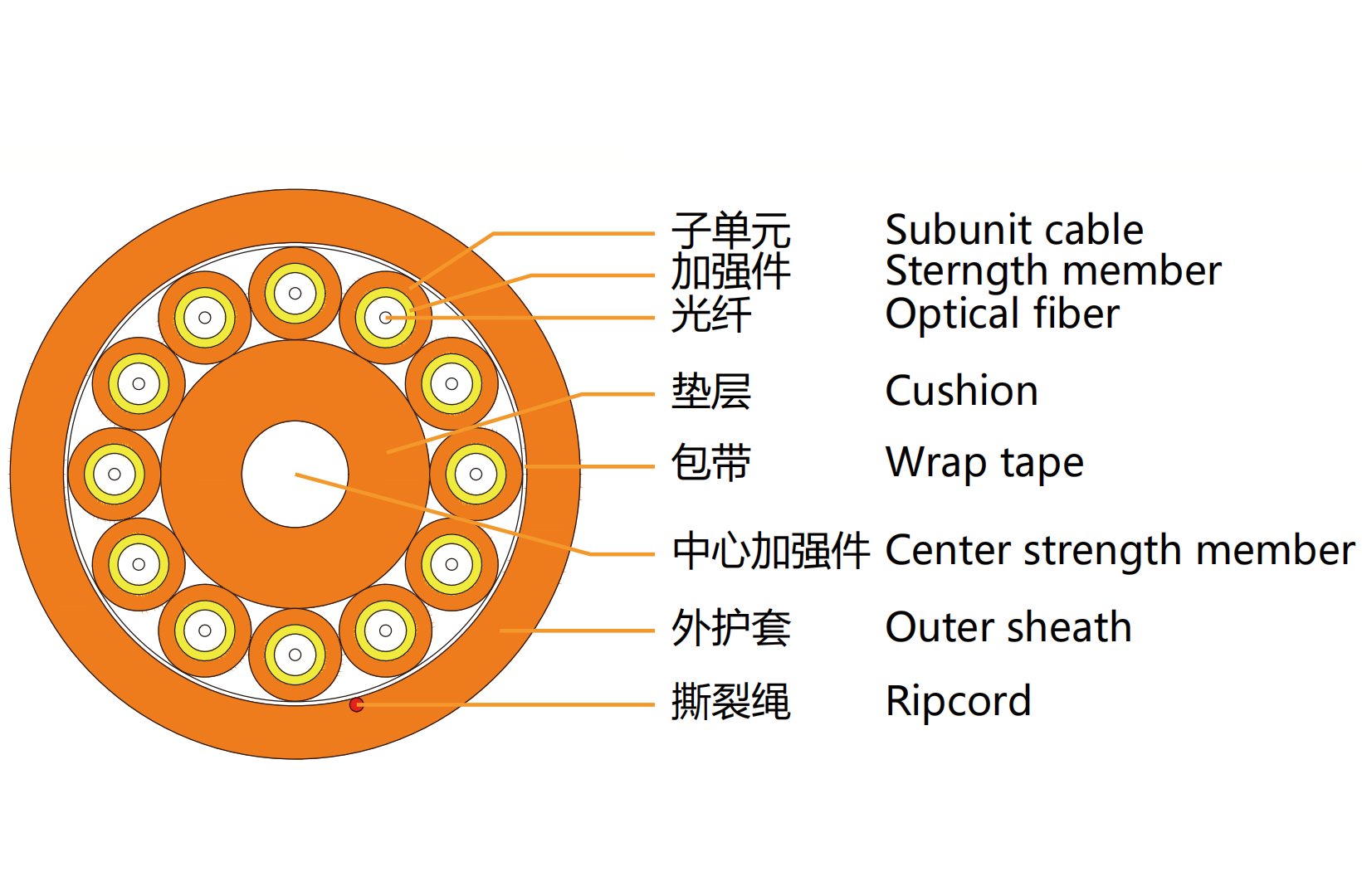

Breakout optical fiber cable use simplex cable(900μm tight buffer fiber,aramid yarn as strength member)as subunit. A fiber reinforced plastic(FRP)locates in the center of core as a non-metallic strength member.The subunits are stranded around the cable core.The cable is sheathed by a PVC or LSZH(Low smoke,Zero halogen,Flame-retardant)material.

Product Attributes:

Model:

GJBFJH/V-(2-24)C

Applications

Indoor General Cable Distribution

Backbone Distribution Cable in Buildings

Temperature Specifications

Item	Temperature Range
Transport / Storage / Operating Temperature	-20°C ~ +60°C
Installation Temperature	-5°C ~ +50°C

Technical Parameters

Cable Code	Cable Diameter (mm)	PVC Sheath Weight (kg/km)	LSZH Sheath Weight (kg/km)	Tensile Strength (N) Long / Short Term	Crush Resistance (N/100mm) Long / Short Term	Bending Radius Static / Dynamic
GJBFJH/V-4C	7.0 ± 0.2	43	44	130 / 440	300 / 1000	10D / 20D
GJBFJH/V-6C	8.0 ± 0.2	62	64	200 / 660	300 / 1000	10D / 20D
GJBFJH/V-8C	9.2 ± 0.3	83	85	200 / 660	300 / 1000	10D / 20D
GJBFJH/V-12C	12.2 ± 0.3	146	150	200 / 660	300 / 1000	10D / 20D
GJBFJH/V-24C	13.8 ± 0.3	182	185	400 / 1320	300 / 1000	10D / 20D
