Feature

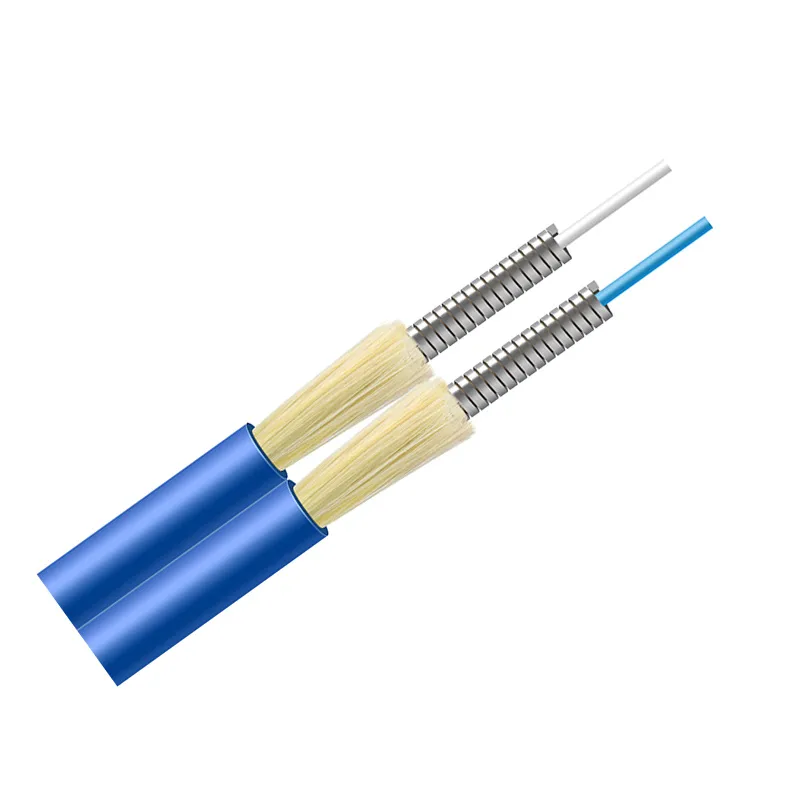

- Duplex zipcord armored cable use 900μm or 600μm flame-retardant tight buffer fiber as optical communication medium.
- The tight buffer fiber wrapped with a layer of steel wire , and aramid yarn as strength member units,such unit is extruded with a layer of PVC or LSZH material as inner jacket.
- Then the cable is completed with a layer of flat PVC or LSZH(Low smoke,Zero halogen,Flame-retardant) jacket as out sheath .
Core Specifications
Optical fiber | Diameter | 0.25mm | ||
| Category | G652D/G657A1/G657A2 | ||
Tight buffered fiber | Diameter（mm） | 0.6 | 0.9 | 0.9 |
| Material | LSZH/PVC | ||
Strength member | Aramid yarn | |||
Outer sheath | Diameter（mm） | 1.6*3.3 | 2.0*4.1 | 3.0*6.1 |
| Material | LSZH/PVC | ||
Weight（kg/km） | Approx. 4.8 | Approx. 7.8 | Approx. 13.8 | |
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
