Feature
- We wholesale fiber optic pigtails at unbeatable price
- Excellent Quality
- Custom length - OK
- Custom connector type - OK
- Custom connector count - OK
- Custom package, sticker - OK
- Custom Color - OK
- Rapid delivery
Core Specifications
Prefabricated fiber optic connector components are designed for indoor and outdoor fiber optic access networks. This terminal provides users with protection and fast and convenient incremental cable connections, while also improving deployment speed. Its reliability and flexibility make it an ideal choice for fiber optic access networks outside of factories,including network access point terminals in fiber to home (FTTH) network deployments.
replace traditional water blocking ointment, Corning ClearCurve fiber. This is a revolutionary fiber optic cable and cable. The optical cable assembly adopts a fully dry design, using water blocking yarn and wrapped water blocking tape to that is not sensitive to bending and can ensure almost no attenuation loss even in sharp bends.
Feature
- Cost effective solution for in house termination
- Low insertion loss and added loss
- The material in the jumpel cable are all-weather and UV-resistant
- Mechanical performance: IEC 61754-4 standard
- RoHS and REACH materials compliant
Application
- Telecommunication networks
- Outdoor communication equipment connection
- Remote wireless base station
- FTTX applications
Specification

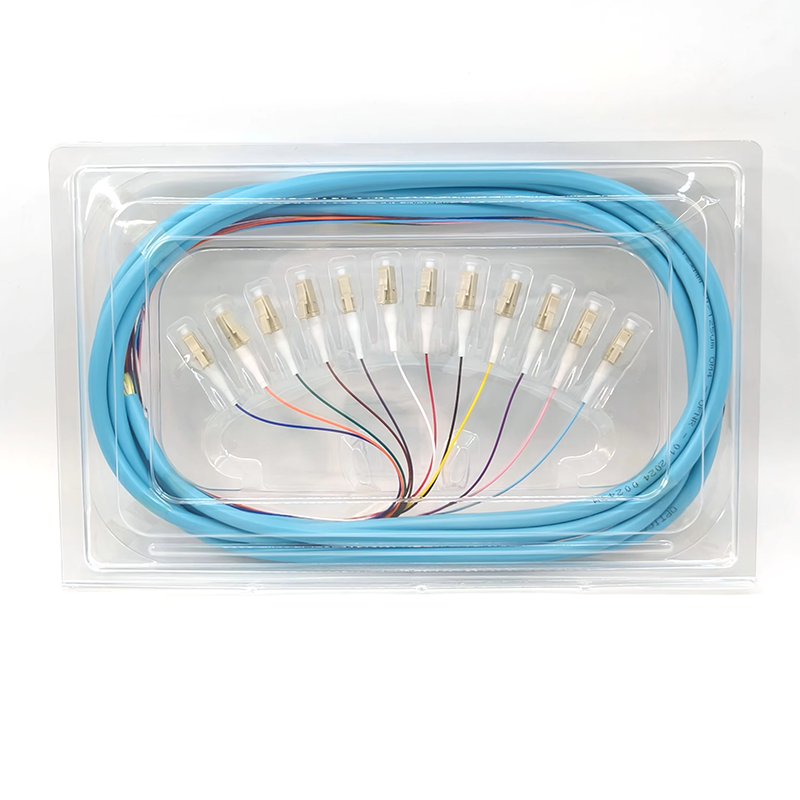

Model Number | Fiber Pigtail | Connector Type | LC |
Place of Origin | Guangdong, China | Brand | OEM/ODM |
Wavelength | 850nm/1300 nm | Fiber Mode | 50/125 μm |
Min. Bend Radius | 7.5mm | Fiber Type | OM4 |
Fiber count: | 12 | Polish Type | UPC/PC |
Insertion loss | ≤0.3dB(UPC/PC) | Return loss | UPC/PC ≥30dB |
Cable Jacket: | PVC/OFNR/LSZH/Plenum(OFNP) | Jacket Color | 12-Color |
Cable Diameter | 0.9mm | Length | Customized |
Interchangeability | ≤0.2 dB | Vibration | ≤0.2 dB |
Operating Temperature (° C) | -40~ + 75 | Storage Temperature (° C) | -45 |
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
