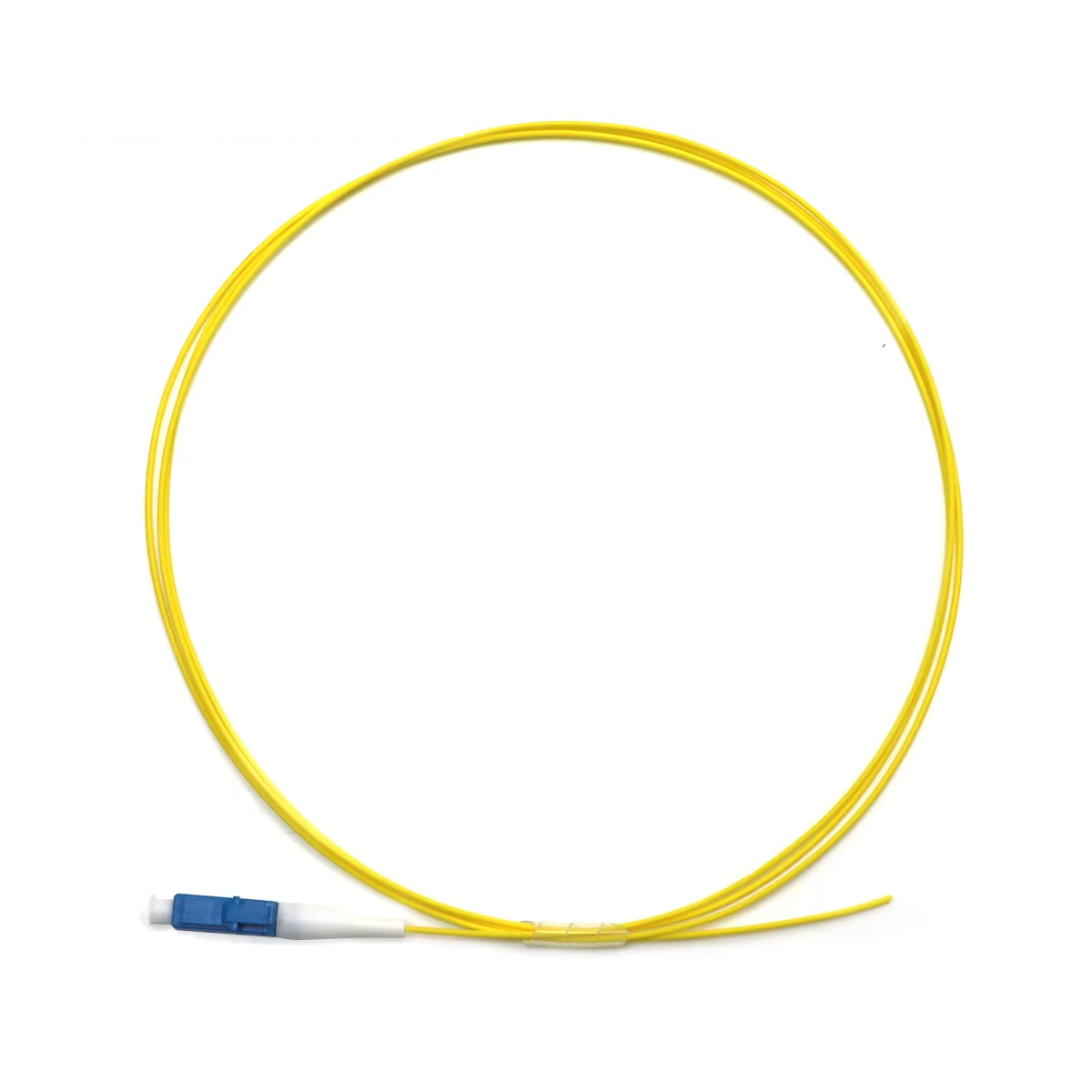

LC/UPC Single mode Simplex Fiber Optic Pigtail

LC/UPC Single mode Simplex Fiber Optic Pigtail

We are a manufacturer of LC/UPC Single mode Simplex Fiber Optic Pigtail in competitive cost and short lead time. Our factory approved ISO9001:2015, and we have UL, CE, FCC, ROHS, CCC, CPR certificates. Our Optical Fiber Cable quality is excellent, price is unbeatable.

Feature

LC/UPC Single mode Simplex Fiber Optic Pigtail

Core Specifications

LC/UPC Singlemode Simplex 0.9mm Customized Length Fiber Optic Pigtail

Patch cord pigtail, is in the end of a fiber optic cable plus fiber connector, the other end of the original state, to achieve optical network equipment and equipment, equipment and cable between the active connection, simple, convenient and fast. It is one of the essential passive products for optical network construction.

we can provide all kinds of patch cord pigtail products; the transmission mode, optical cable type and connector type can be arbitrarily matched. It has the advantages of stable transmission, high reliability and customization; it is widely used in optical network scenarios such as central office, FTTX and LAN etc.
item
Fiber Optic Pigtail
Model Number
LC/UPC SM Pigtail
Type
Fiber optic pigtail
Use
FTTH NETWORK
Product name
Fiber optic pigtail
Type
LC/UPC 9/125 pigtail
Connector Type
SC FC ST LC UPC
Color
YELLOW
Wavelength
850nm
Fiber Type
Singlemode
Material
PVC LSZH
Application
FTTH System
Operating temperature
40~+85
Durability
>1000 Times



Feature


1. Low insertion loss and back reflection loss
2. Good echangeability
3. Good Durability
4. High temperature stability
5. Standard: Telcordia GR-326-CORE


Application

1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4.Optical fiber sensor
5.Industry and military application

FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
