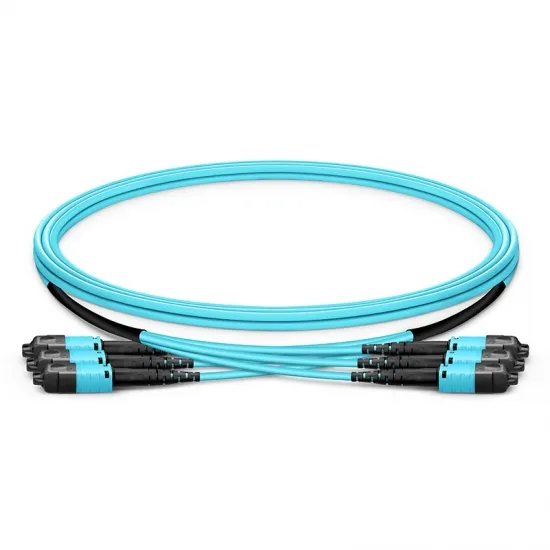

MTP®-12 OM4 Multimode Trunk Cable

MTP®-12 OM4 Multimode Trunk Cable

We are a manufacturer of MTP®-12 OM4 Multimode Trunk Cable. We supply MPO / MTP fiber optic patch cord cables. in competitive cost and short lead time. Our factory approved ISO9001:2015, and we have UL, CE, FCC, ROHS, CCC, CPR certificates. Our Optical Fiber Cable quality is excellent, price is unbeatable.

Feature

MTP®-12 OM4 Multimode Trunk Cable

Core Specifications

Customized MTP® PRO 8-144 Fibers MTP®-12 OM4 Multimode Trunk Cable

The MTP® PRO connector is the newest addition to the US Conec MTP® brand MPO product family. This state-of-the-art connector brings simplified use to the MPO format by offering optimal field flexibility and enhanced performance, all while leveraging the proven features and technology of US Conec’s MTP® connectors. With a novel design focused on simplicity and reliability, the MTP® PRO connector offers quick and effective polarity and pin reconfiguration in the field while ensuring product integrity and performance.

The MTP® PRO patch cord is bend-insensitive and pre-terminated with MTP® PRO connectors, factory polished for low loss performance.
MTP® PRO design is focused on simplicity and reliability, ensuring a quick and effective method for polarity and pin configuration without the need to remove the housing or handle loose pins. One simple insertion into a specially designed MTP® PRO tool reverses the keying configuration by retracting the exposed key while simultaneously extracting a hidden key on the opposite side of the connector.
Connector A
US Conec MTP® PRO
Connector B
US Conec MTP® PRO
Fiber Mode
OM4 50/125μm
Wavelength
850/1300nm
40/100G Ethernet Distance
150m at 850nm
10G Ethernet Distance
400m at 850nm
Glass Fiber
Corning ClearCurve®
RoHS Compliancy Status
Compliant
Polish Type
UPC to UPC
Minimum Bend Radius
7.5mm
Insertion Loss
0.35dB Max
Return Loss
≥20dB
Attenuation at 850nm
≤2.3dB/km
Attenuation at 1300nm
≤0.6dB/km
Jacket OD
3.0mm
Cable Jacket
OFNP/LSZH
Installation Tensile Load
66N
Tensile Strength (Long/Short Term)
80/240N
Operating Temperature
-10 to 70°C (14 to 158℉)
Storage Temperature
-40 to 85°C (-40 to 185℉)

FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
