Feature
- Wholesale MPO fiber cable at unbeatable price
- The MTP® PRO connector is the newest addition to the US Conec MTP® brand MPO product family
- This state-of-the-art connector brings simplified use to the MPO format by offering optimal field flexibility and enhanced performance
- all while leveraging the proven features and technology of US Conec’s MTP® connectors
Core Specifications
The MTP® PRO connector is the newest addition to the US Conec MTP® brand MPO product family. This state-of-the-art connector brings simplified use to the MPO format by offering optimal field flexibility and enhanced performance, all while leveraging the proven features and technology of US Conec’s MTP® connectors. With a novel design focused on simplicity and reliability, the MTP® PRO connector offers quick and effective polarity and pin reconfiguration in the field while ensuring product integrity and performance.

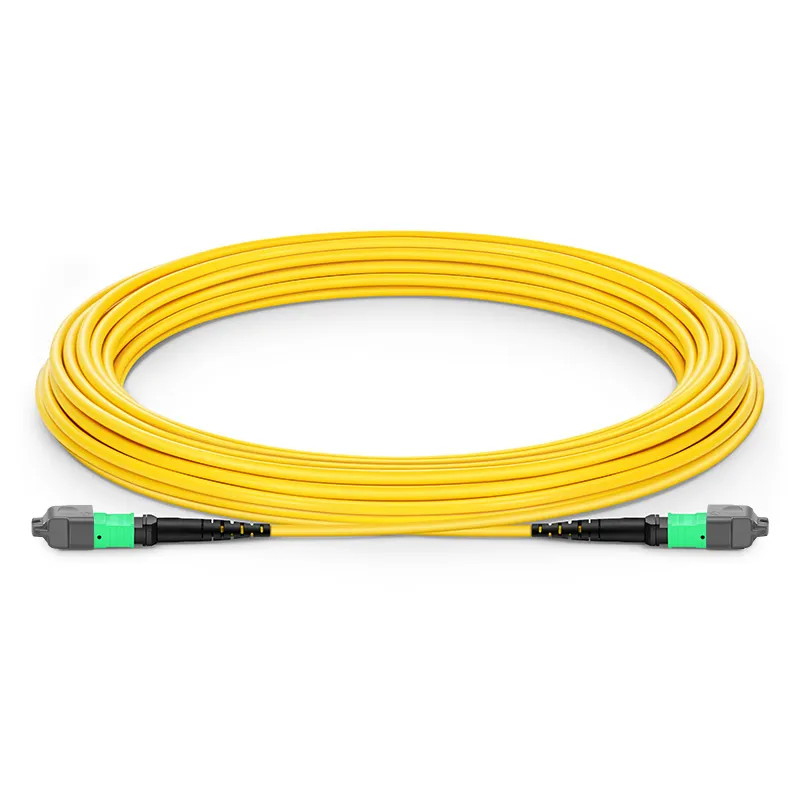

The MTP® PRO patch cord is bend-insensitive and pre-terminated with MTP® PRO connectors, factory polished for low loss performance.
MTP® PRO design is focused on simplicity and reliability, ensuring a quick and effective method for polarity and pin configuration without the need to remove the housing or handle loose pins. One simple insertion into a specially designed MTP® PRO tool reverses the keying configuration by retracting the exposed key while simultaneously extracting a hidden key on the opposite side of the connector.
MTP® PRO design is focused on simplicity and reliability, ensuring a quick and effective method for polarity and pin configuration without the need to remove the housing or handle loose pins. One simple insertion into a specially designed MTP® PRO tool reverses the keying configuration by retracting the exposed key while simultaneously extracting a hidden key on the opposite side of the connector.
Connector A | US Conec MTP® PRO | Connector B | US Conec MTP® PRO |
Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
Glass Fiber | Corning Ultra® | RoHS Compliancy Status | Compliant |
Polish Type | APC to APC | Minimum Bend Radius | 10mm |
Insertion Loss | 0.35dB Max | Return Loss | ≥60dB |
Attenuation at 1310nm | ≤0.32dB/km | Attenuation at 1550nm | ≤0.18dB/km |
Jacket OD | 3.0mm | Cable Jacket | OFNP/LSZH |
Installation Tensile Load | 66N | Tensile Strength (Long/Short Term) | 80/240N |
Operating Temperature | -10 to 70°C (14 to 158℉) | Storage Temperature | -40 to 85°C (-40 to 185℉) |
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
