Feature
- Wholesale MPO fiber cable at unbeatable price

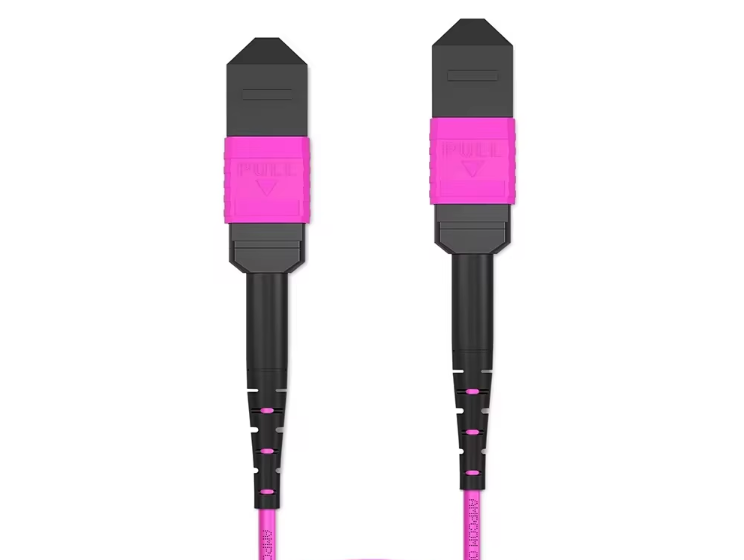

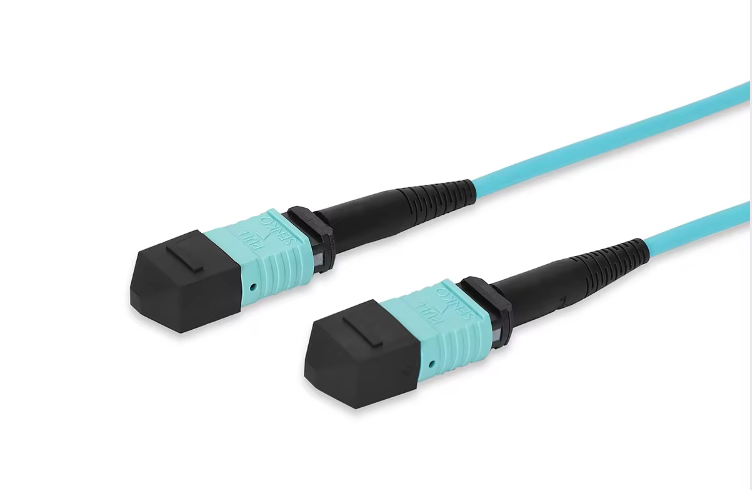

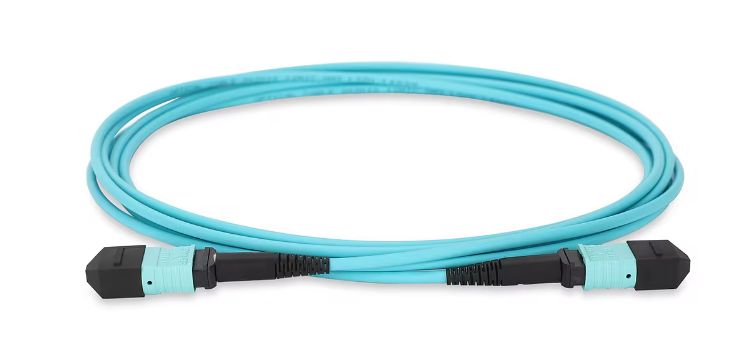

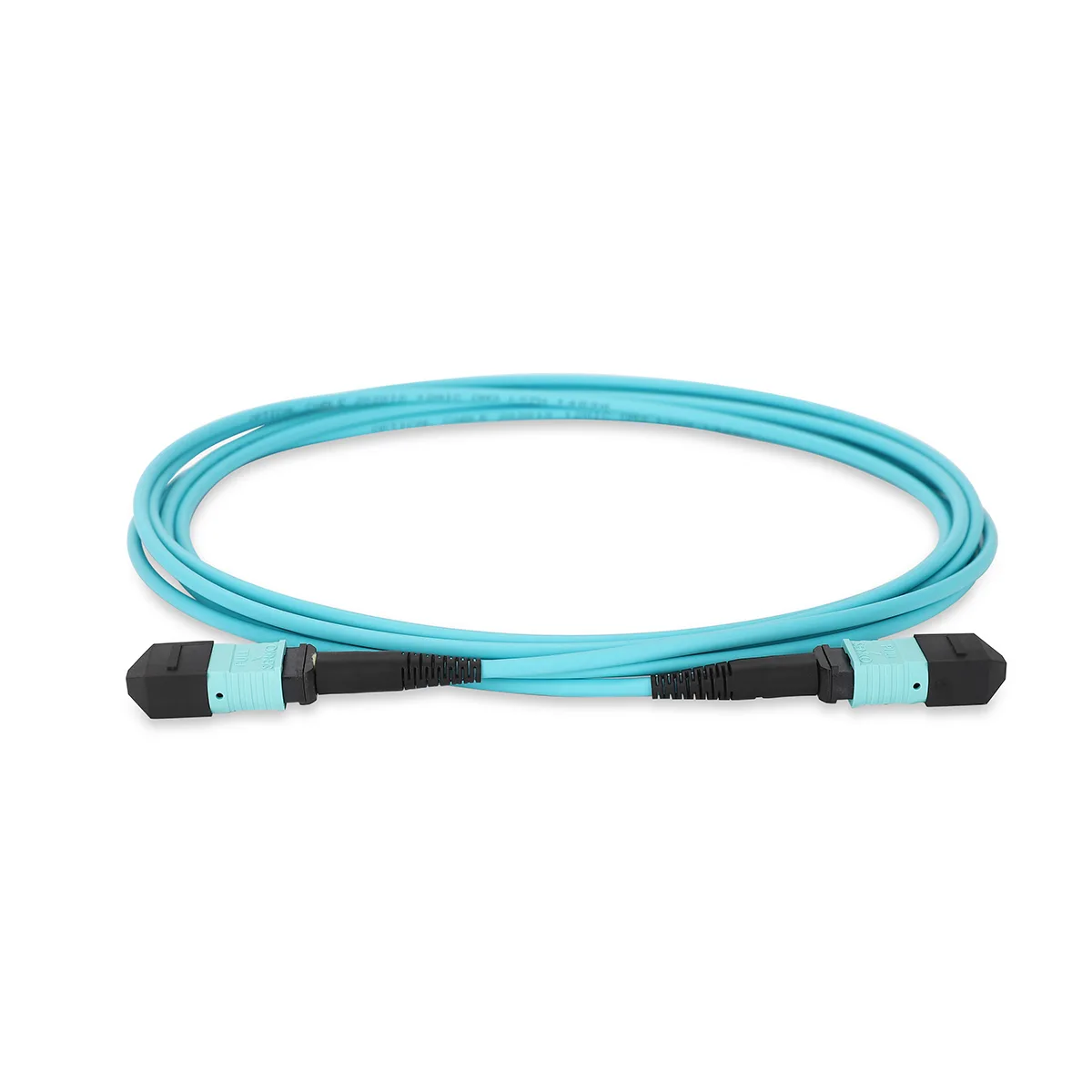

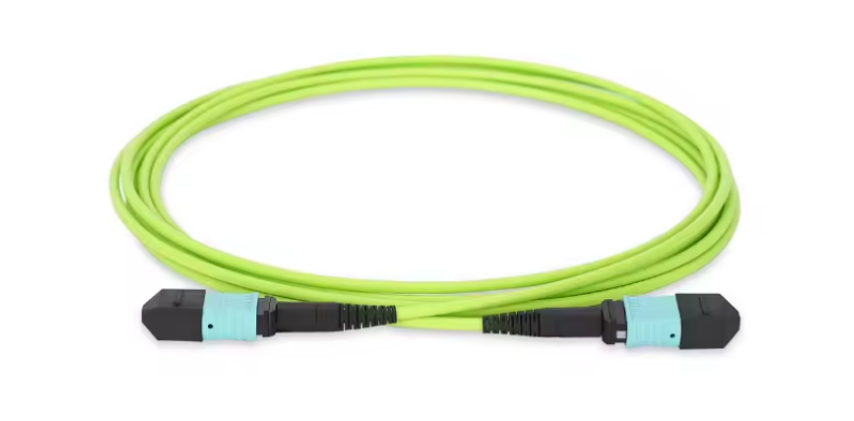

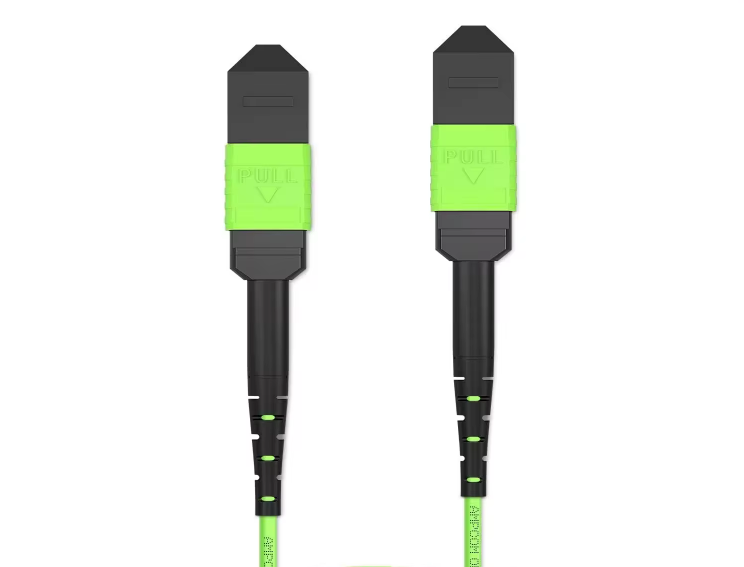

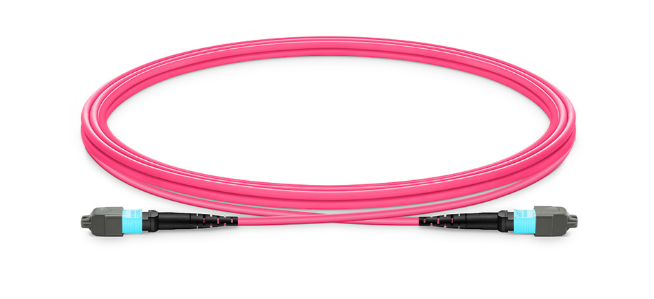

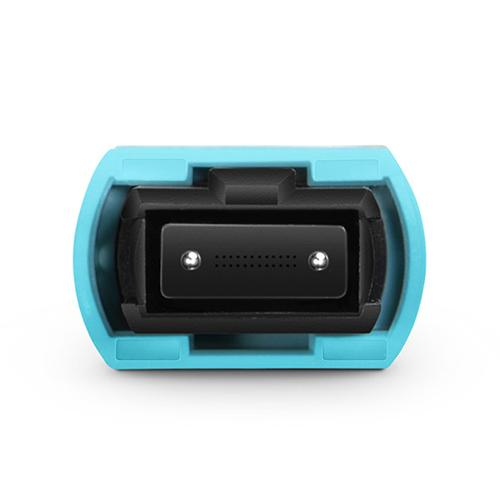

- MPO Trunk patch cord is used for signal transmission, both sides are MPO connectors
- The MPO patch cable is designed to achieve higher speeds and density in the network, support long-range backbone cabling, and reduce cabling congestion by consolidating 12 OM3 multimode fiber strands into a single jacket
- MPO cable is performance tested to exceed TIA industry standards with less than 0.35dB insertion loss, 0.2dB is typical
- MPO cable is bend-insensitive, supporting a 1.2 inch minimum bend radius which helps reduce optical loss in tight bends
- The MPO-MPO patch cable is 100% factory terminated using high-performance machine polishing, 3D metrology testing to ensure a high-quality connector, and high-power scopes to eliminate contaminants
Core Specifications
High Speed and High Densit：
1.MPO Trunk patch cord is used for signal transmission, both sides are MPO connectors;
2.Fiber optic cable features premium quality OM3 multi-mode fiber, ensuring stable transmission and low insertion loss for
high-speed data transfer in short-distance, high-density environments.
3.The outer layer adopts LSZH, which has effective anti-corrosion, flame-retardant, and wear-resistant properties.
4.Compatible with 40G/100G QSFP+/QSFP28 transceivers, this cable offers flexibility and scalability for your network system.
| Connector A | MPO | Connector B | MPO |
| 10G Ethernet Distance | 300m at 850nm | 40/100G Ethernet Distance | 100m at 850nm |
| Insertion Loss | ≤0.35dB | Return Loss | ≥20dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
| Installation Tensile Load | 66N | Tensile Strength (Long/Short Term) | 80/240N |
| Operating Temperature | -10 to +70°C (14 to 158℉) | Storage Temperature | -40 to +85°C (-40 to 185℉) |
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
