Feature
- Wholesale MPO fiber cable at unbeatable price
- 24 Fibers MTP® trunk cable is optimized for 100GBASE-SR10 CXP/CFP/CPAK optics direct connection and high-density data center applications
- With US Conec MTP® connectors and Corning ClearCurve® fiber
- it is optimized for high-density fiber patching in data centers which need space saving and reduce cable management troubles
Core Specifications

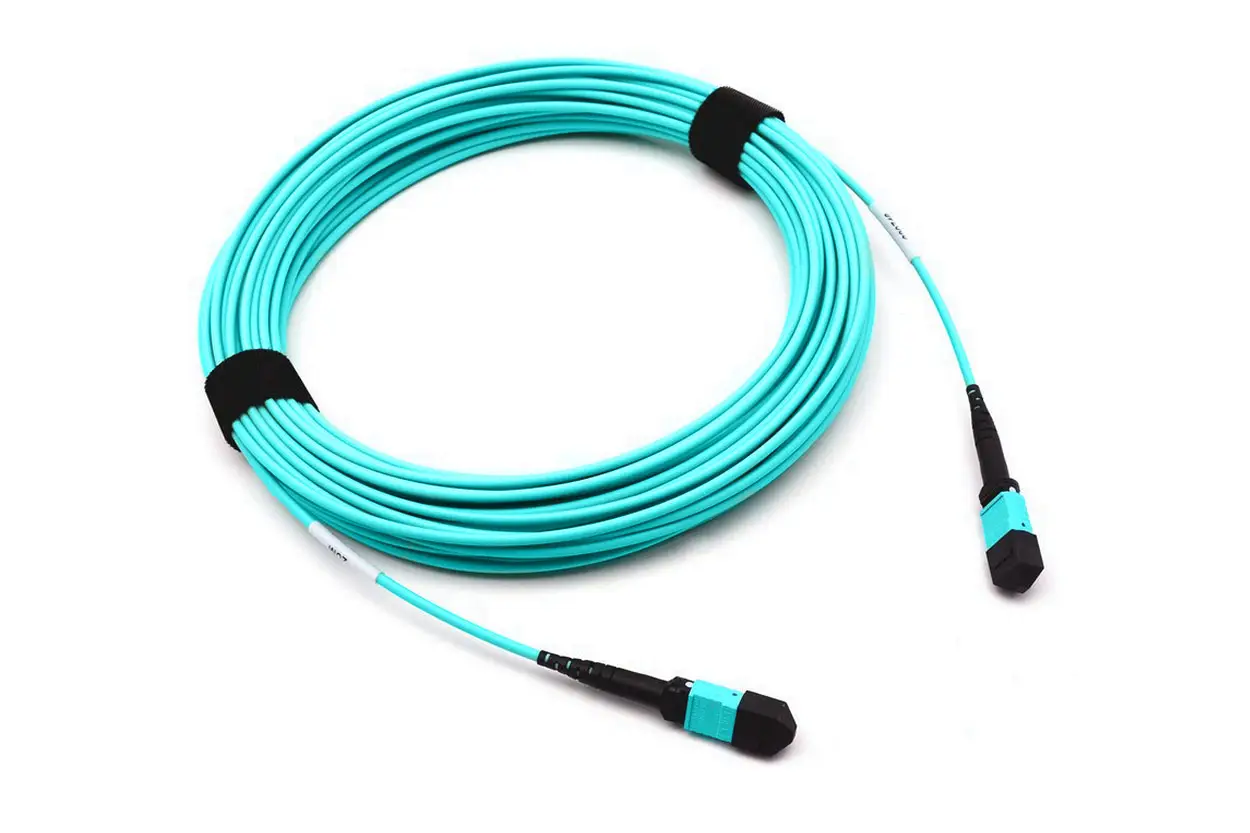

MTP® Female to MTP® Female OM4 Multimode Trunk Cable
MTP® trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP® Connectors and Corning ClearCurve® fiber, it is optimized for 100GBASE-SR10 CXP/CFP/CPAK optics direct connection and high-density data center applications.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors

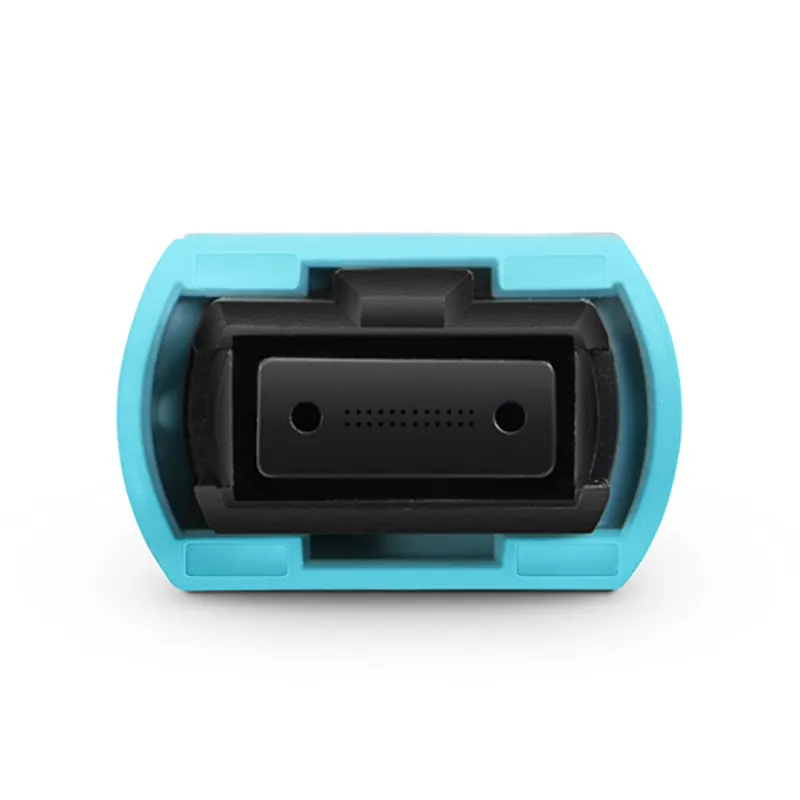

Connector A | US Conec MTP® Female (Pinless) | Connector B | US Conec MTP® Female (Pinless) |
Fiber Mode | OM4 50/125μm | Wavelength | 850/1300nm |
40/100G Ethernet Distance | 150m at 850nm | 10G Ethernet Distance | 400m at 850nm |
Glass Fiber | Corning ClearCurve® | RoHS Compliancy Status | Compliant |
Polish Type | UPC to UPC | Minimum Bend Radius | 7.5mm |
Insertion Loss | 0.35dB Max (0.15dB Typ.) | Return Loss | ≥20dB |
Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
Jacket OD | 3.0mm | Cable Jacket | Plenum (OFNP) |
Installation Tensile Load | 66N | Tensile Strength (Long/Short Term) | 80/240N |
Operating Temperature | -10 to 70°C (14 to 158℉) | Storage Temperature | -40 to 85°C (-40 to 185℉) |
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
