Feature
- Wholesale MPO fiber cable at unbeatable price
- The same size as SC connectors but 12 times denser created for high density cabling.
- 0.35dB Low IL and stable signal transmission ensuring your network safety.
- High-quality MPO/MTP connectors tested and guaranteed by 3D interferometer.
Core Specifications

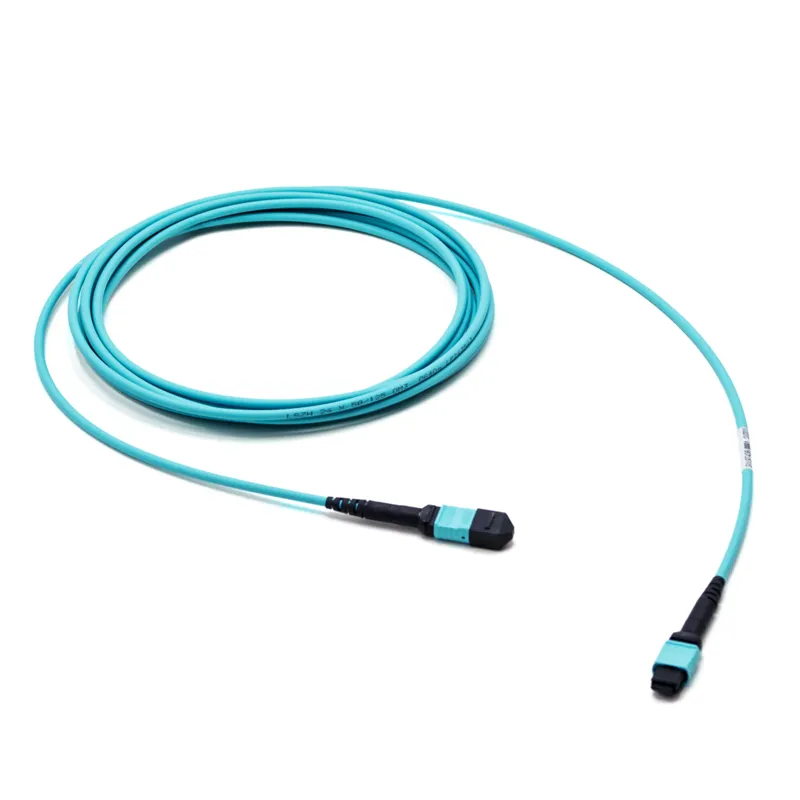

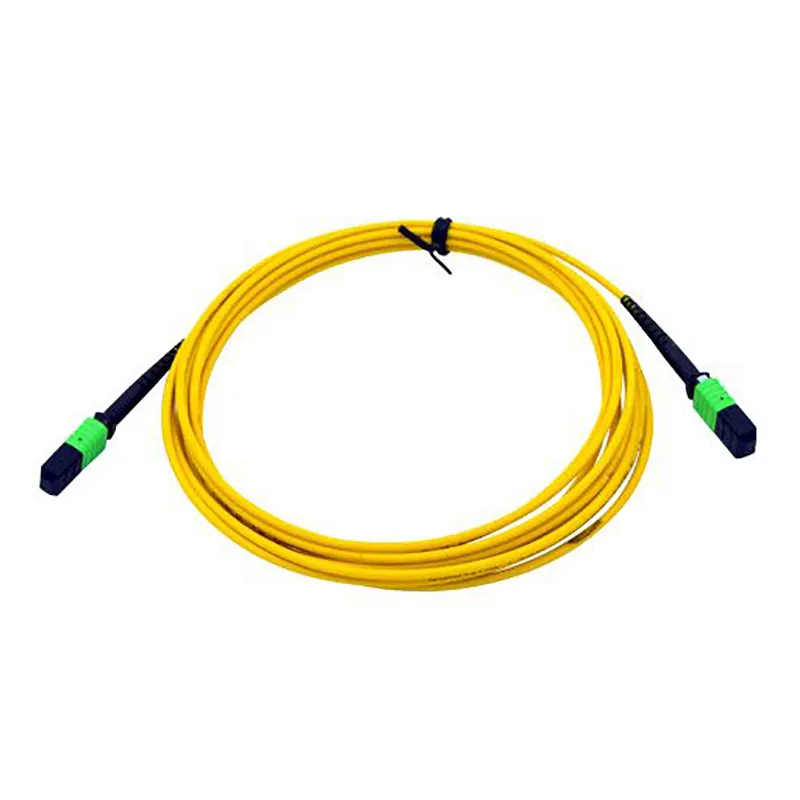

MPO/MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.0.35dB IL, MPO Female to MPO Female connector and 3.0mm bunch cable is designed for 40G/100G direct connection and high-density data center applications. Theoretically, trunk cables are available with 12, 24, 48 and 72 fibers. Their ends are terminated with the customer’s choice of 12-fiber or 24-fiber MTP/MPO connectors.
Advantage:
(1) The same size as SC connectors but 12 times denser created for high density cabling.
(2) 0.35dB Low IL and stable signal transmission ensuring your network safety.
(3) High-quality MPO/MTP connectors tested and guaranteed by 3D interferometer.
| Model Number | MPO Trunk Cable |
| Use | FTTH |
| Product name | MPO Trunk Cable |
| Connector | MPO-MPO |
| Gender | Female to Female |
| Fiber Count | 8/12/24 Cores |
| Fiber Type | SM/OM1/OM2/OM3/OM4 |
| Insertion Loss | ≤0.35dB |
| Application | Data Center |
| Durability | ≥500 times |
| Outer Jacket Color | Yellow/Aqua/Pink |
| Length | 5M/10M/15M/20M… customize |
MTP/MPO Specifications:
| Type | Single Mode | Single Mode | Multi Mode | |||
| (APC Polish) | (UPC Polish) | (PC Polish) | ||||
| Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. | |||
| Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. | |||
| Maximum Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| Low Loss | Low Loss | Low Loss | ||||
| ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB | |
| Return Loss | ≥60 dB | ≥60 dB | NA | |||
| Durability | ≥500 times | ≥500 times | ≥500 times | |||
| Operating Temperature | -40℃ ~ +80℃ | -40℃ ~ +80℃ | -40℃ ~ +80℃ | |||
| Test Wavelength | 1310nm | 1310nm | 1310nm | |||
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
