Outdoor optical cable Adss Asu 4 8 12 24 Core Mini Adss Span 80-150m Non Metallic Sm Aerial Fiber Cable

Outdoor optical cable Adss Asu 4 8 12 24 Core Mini Adss Span 80-150m Non Metallic Sm Aerial Fiber Cable

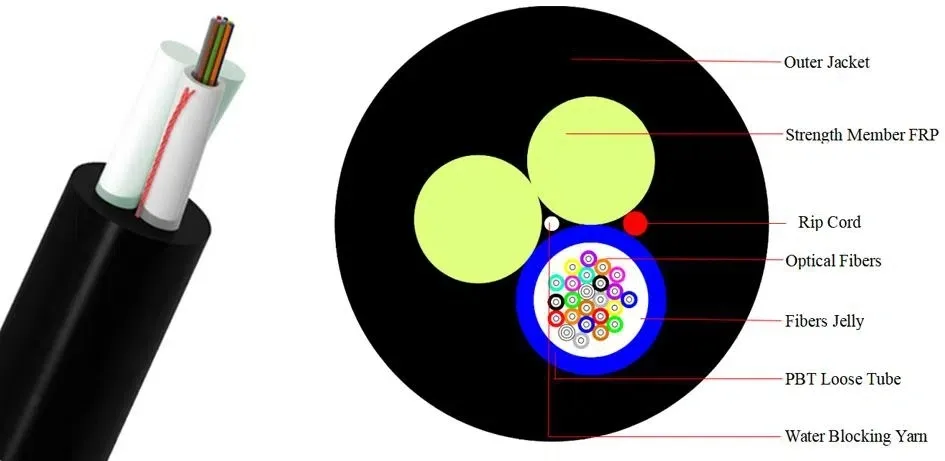

The optical fiber is put in a loose tube.The fiber can be 4-12 cores in the tube. Tube filling compound will be used for as water blocking elements. FRP are put together for the tensile strength purpose. This is economic and compact design for replace GYFTY in SZ stranded design. The cable is finished with PE or LSZH jacket.

Feature

Outdoor optical cable Adss Asu 4 8 12 24 Core Mini Adss Span 80-150m Non Metallic Sm Aerial Fiber Cable

Core Specifications

Items

Descriptions

Optical fiber

Counts

2-12



Color

1、Blue 2、Orange 3、Green 4、Brown 5、Gray 6、White 7、Red 8、Black 9、Yellow

10、Violet 11、Pink 12、Aqua

Loose tube

Diameter(mm)

1.6-2.0



Color

White



Material

PBT/PC



Infilling

Fiber ointment

Strength member

FRP

Outer sheath

Diameter(mm)

7.0±0.2



Material

HDPE



Color

Black

Net weight(kg/km)

Approx. 40

FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
