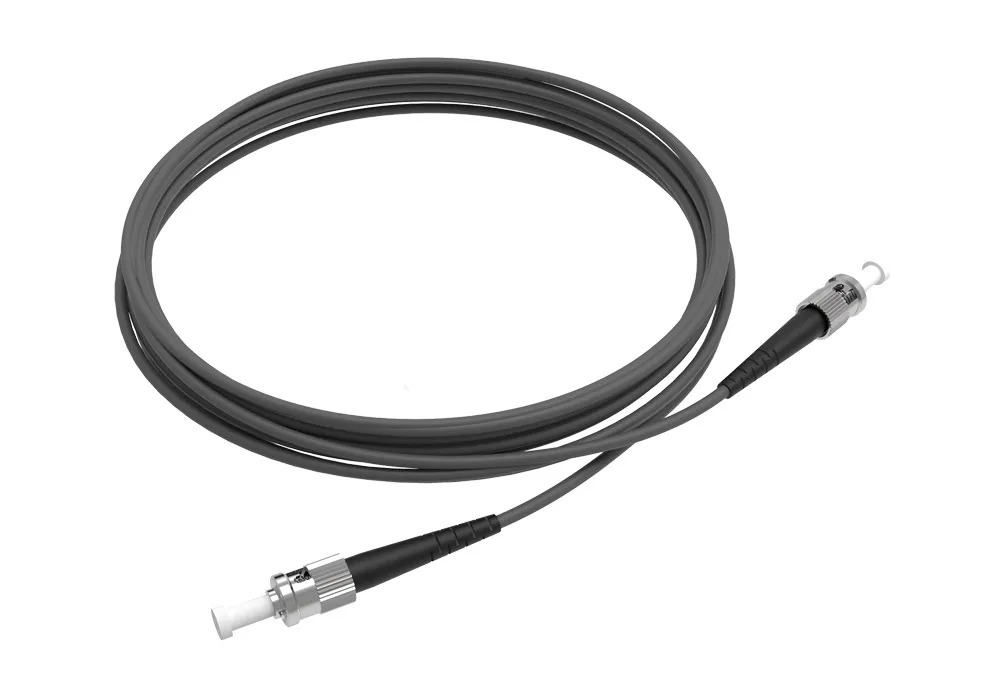

Owire Armored Patchcord

Owire Armored Patchcord

$
Armoured Fiber Optic Patch Cord The Armoured patch cord is used in the connection of fiber optic equipment to equipment or patch panel to equipment in a more rugged environment. It comprises of a patch cable that is armoured with a spiral steel tape and terminated with a fiber optic connector. The spiral steel tape armouring will provide additional crush resistance and prevention of rodent attacks.
Follow Us

Feature

Owire Armored Patchcord

Core Specifications

Item
Single mode
Multi mode

PC
UPC
APC
PC
Insertion Loss
≤0.3dB
≤0.3dB
≤0.3dB
≤0.3dB
Reture Loss
≥50dB
≥55dB
≥60dB
≥35dB
Repeatability
≤0.1dB
≤0.1dB
≤0.1dB
≤0.1dB
Durability(Times)
≥600
≥600
≥600
≥600
Tensile strength(N)
≥55
≥55
≥55
≥55
Operating Wavelength
1310nm,1550nm
Temperature Stability
Additional Loss≤0.2dB, Return Loss Variability<5dB
Working Temperature
-50ºC~+75ºC

FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
