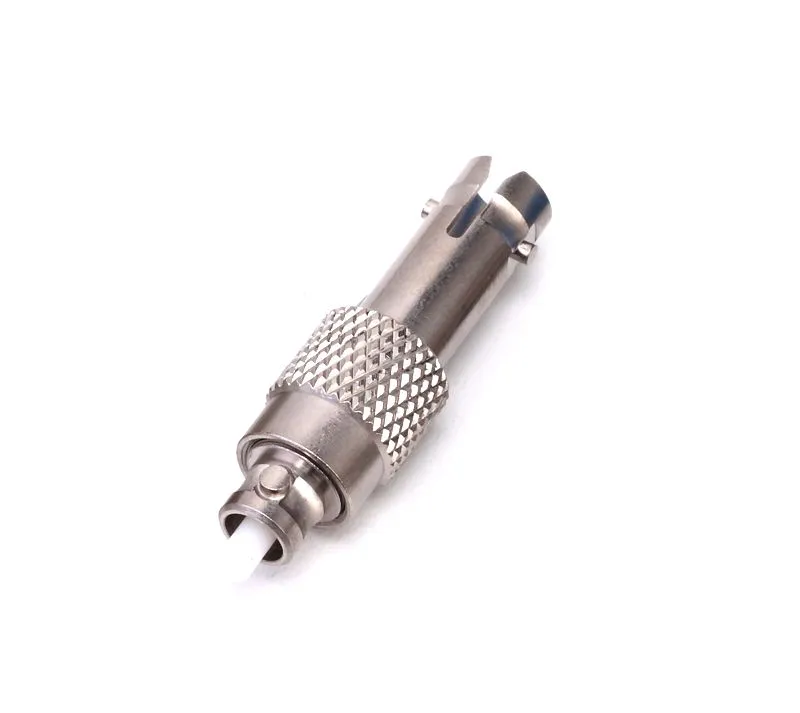

Owire FC Connector

Owire FC Connector

$
FC is the abbreviation of Ferrule Connector, indicating that its external reinforcement method is metal sleeve, and the fastening method is turnbuckle. At the earliest time, the mating end face of the ceramic pin used in the FC type connector was in the plane contact mode (FC). This type of connector has simple structure, convenient operation and easy fabrication
Follow Us

Feature

Owire ST Connector

Core Specifications

Mode

 FC

Operation Time

 about 15s(exclude fiber presetting)

Insertion Loss

 ≤ 0.3dB(1310nm & 1550nm)

Return Loss

 ≤ -45dB

Success Rate

 >98%

Reusable Times

 >10 times

Tighten Strength of Naked Fiber

 >5 N

Tensile Strength

 >50 N

Teperature

 -40~+85℃

On-line Tensile Strength Test (20 N)

 IL ≤ 0.3dB

Mechanical Durability(500 times)

 IL ≤ 0.3dB

Drop Test(4m concrete floor, once each direction, three times total)

 IL ≤ 0.3dB

FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
