Feature
- we can custom fiber Patch cord cable structure, fiber count, connector types, length, package for you.
- price unbeatable
- Shortest delivery time
- Slide out drawer for easy cable management
- Suitable for different adapters: FC, SC, ST, LC
- Front access panel design for easy operation
Core Specifications
| Product name | Fiber Optic Din Rail Metal Box 8Ports |
| Protection | IP20 |
| Adapter Type | SC, LC, ST, FC |
| Adapter Mode | SC/SX, LC/DX |
| Ports | 12Ports |
| Fiber core capacity | 12Core (ST) |
| Material | Cold-roll steel |
| Color | Light Grey |
| Dimensions | 129*130*40MM |
| Application | FTTH solutions |
| Product Keywords | Fiber optics Wall Box DIN-rail mounting,12-port ST Fiber Optics Wall Box DIN-rail Mounting,12-port Fiber Optics Wall Box DIN-rail Mounting |
Description:

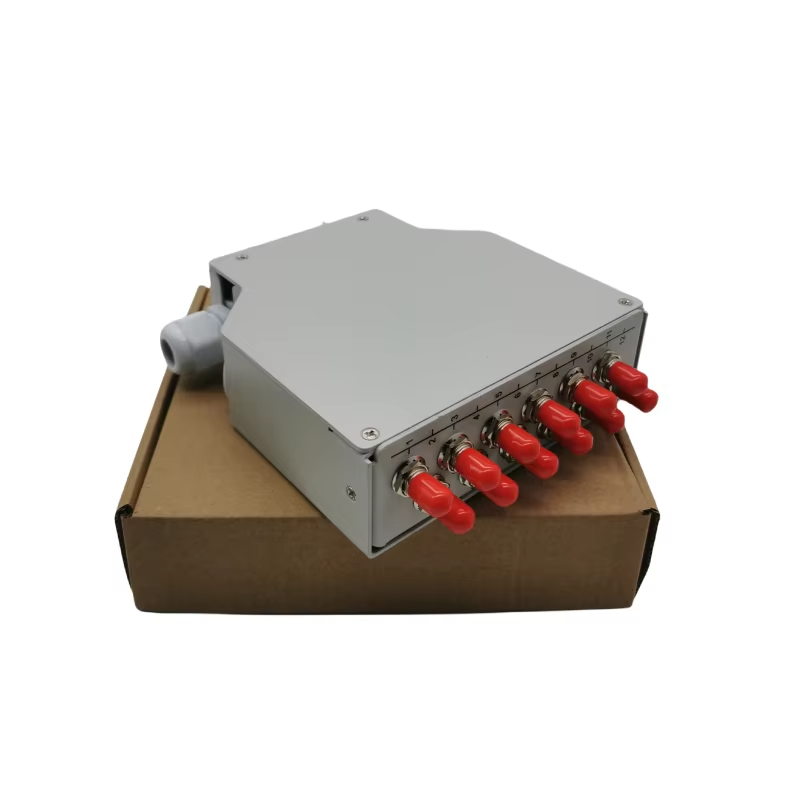

Din Rail Patch Panel 12 Ports is metal box special designed to be snapped on din rail, DIN RAIL fiber box accepts one modular panel making it ideal for smaller fibre count applications of up to 24 fibers (DX). This compact enclosure makes it possible to direct terminations or fusion splices in much smaller protected areas.
Feature:
Cold-roll steel, electrostatic painting
Suitable for different adapters: FC, SC, ST, LC …
Max. 12pcs adapters can be loaded
Integrated splice holders (fusion splices)
2pcs cable entry/exit ports; 16pcs pigtail entry/exit ports
IP20 protection
Rear or aside DIN rail fixation
2x rear entries (PG 11 cable gland)
Light Grey color
Dimensions : 129*130*40MM
Application:
Suitable for Pigtail, ribbon and bunch cable connect distribution Used for wall-mounted applications
Used in FTTH, Telecommunications, CATV etc.
Front Panels:
6 ST/LC duplex adapters |
4/6 ST simplex adapters |
8 LC simplex adapters |
8 LC Duplex adapters |
12 SC/LC simplex adapters |
12 LC duplex adapters |
12 ST simplex adapters |
Others on request |
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
