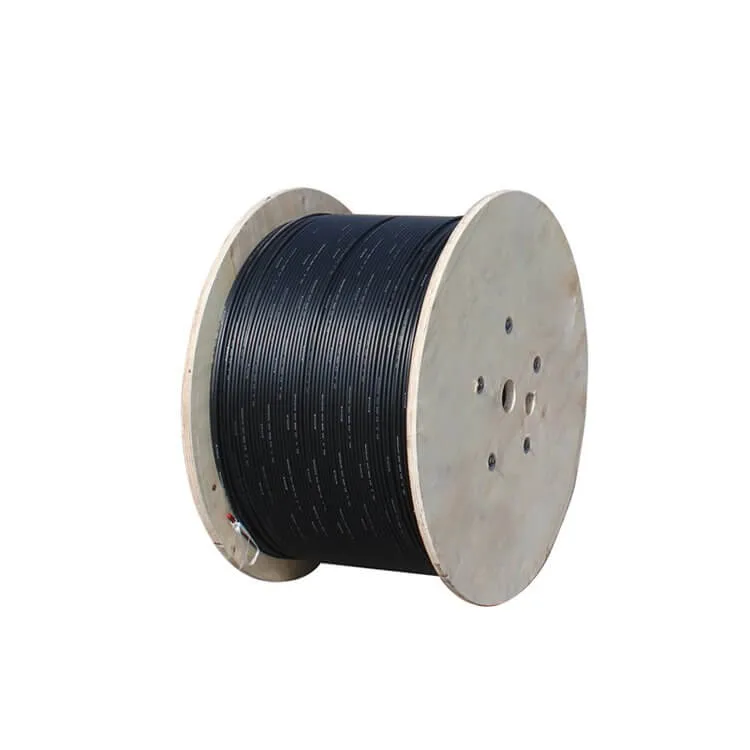

Owire Flat Fiber Optic Drop Cable FRP PE Sheath

Owire Flat Fiber Optic Drop Cable FRP PE Sheath

$
This aerial drop fiber cable is a flat shape non armored cable. It consists of 1-24 fibers uni-tube, 2 parallel FRP strength member, water blocking materials and flat outer PE jacket. The cable is usually used in rural areas as self-supporting drop cable, enable subscribers access to the distribution network.

Feature

Owire Flat Fiber Optic Drop Cable FRP PE Sheath

Core Specifications

SM fiber
Fiber type
G657A1
Concentricity error
≤0.5um
MFD
8.6~9.8um
Cladding non-circularity
≤0.7%
Cladding diameter
124.8±0.7um
Fiber color
standard spectrum
Loose tube
Material
PBT
Color
Natural color
Diameter
1.8±0.1mm
Thickness
0.2±0.05mm
Strength member
Material
FRP
Color
white
Type
Ф2.0mm
Qty
2
Out sheath
Material
HDPE
Color
black
Diameter
3.5*7.5(±0.3mm)
Thickness
≧1.0mm

FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.

Related Product

The optical fiber is put in a loose tube.The fiber can be 4-12 cores in the tube. Tube filling compound will be used for as water blocking elements. FRP are put together for the tensile strength purpose. This is economic and compact design for replace GYFTY in SZ stranded design. The cable is finished with PE or LSZH jacket.
Fiber optic fast connector: * A high performance, easy to use mechanical fiber optic connector. * It can be widely used in FTTH drop cable connection and inter-connection. * It has the same connection performance as the standard SC connector,and can be connected directly to the standard SC adapter.
* Insertion loss: no more than 0.2dB (PC, UPC and APC), no more than 0.3dB (mm) * Durability: no more than 0.2dB * Withdraw force: 100 to 300g/f
