Owire GYTC8A Figure-8 Cable with Aluminum Tape

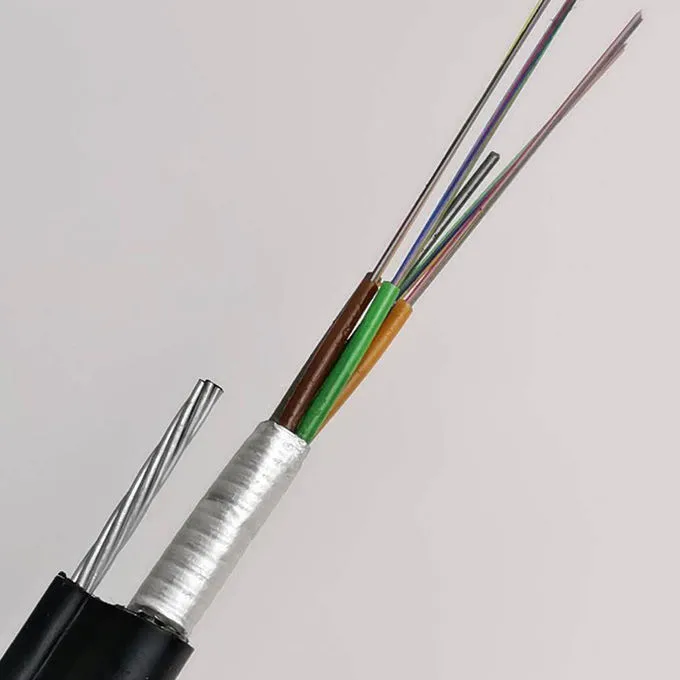

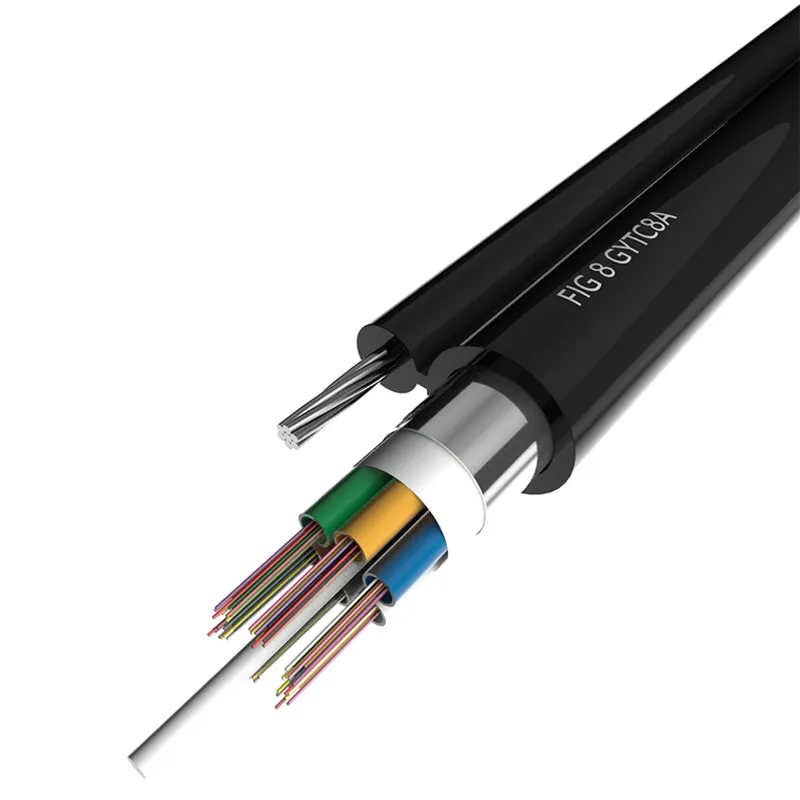

GYTC8A Figure-8 Cable with Aluminum Tape In the GYTC8A cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around metallic central strength member into a compact and circular cable core, and the water-blocking materials are distributed into interstices of it. After a APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.

Feature

Core Specifications

Technical Parameters

Performance	Long-term	Short-term
Max.Tension(N)	3500	7000
Max.Crushing	300	1000
Resistance(N/100mm2)	30D(Dynamic)	15D(static)
Storage and operating temperature	-40℃ to +70℃

Optical Characteristics:

G.652D	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm		≤3.0 dB/km	≤3.0 dB/km
	@1300nm		≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km
	@1550nm	≤0.22 dB/km
Bandwidth (Class A)	@850nm		≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm		≥1000 MHz·km	≥600 MHz·km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm

FAQ

1.Are you the real manufacturer?

Yes. We are the real manufacturer with more than 500 staff.

2.How many years have you been in the field of fiber optics ?

Since 2001.

3.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

10 years for Lan cable , 25 years for fiber optic cable

5.Which kind of certification you have ?

ISO9001, SGS, UL, CPR, CE, RoHs

6.What is your delivery time?

Usually within 10-15 working days

7.What about your annual production capacity?

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8.What is your payment way?

T/T, L/C, Western Union and Ali pay.

9.Can you supply customized products and logo?

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.

We are a manufacturer of Non-metallic Central Loose Tube Optical Fiber Cable GYFXTY 2-24 core. We supply fiber optic Cable in competitive cost and short lead time. Our factory approved ISO9001:2015, and we have UL, CE, FCC, ROHS, CCC, CPR certificates. Our Optical Fiber Cable quality is excellent, price is unbeatable.

OW-F109H 144/288 Core Fiber Optic Cable Closure DOME Vertical Joint Closure Box

optical splice closures are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. They are applicable to situations such as overhead, manwell of pipeline, embedded situation etc. Comparing with terminal box, the closure requires much stricter requirement of seal. Sealing ring and air valve are required for closure, but that are not necessary for terminal box.

Armored LC to LC patch cord 50m to 1000M 6 Strand Multimode 50/125 10 Gigabit Fiber Optic Patch Cord Cable

We are a LC UPC / APC patch cords 1/2/4/8 core singlemode multimode lc upc/apc Fiber patch cords Manufacturer. We supply fiber optic patch cord cables in competitive cost and short lead time. Our factory approved ISO9001:2015, and we have UL, CE, FCC, ROHS, CCC, CPR certificates. Our Optical Fiber Cable quality is excellent, price is unbeatable.
