Feature
- we can custom fiber cable structure, fiber count, length, package for you.
- price unbeatable
- Shortest delivery time for you, we produce 2000KM / day
- Adopted to indoor distribution.
- As pigtail of communication equipment.
- Suitable for communication equipment served.
- Can be installed conveniently and perated simply.
- Hight strength kevlar yarn member.
- High quality tight buffered or loose tube.
- Soft and easy to strip.
- Round construction.
Core Specifications

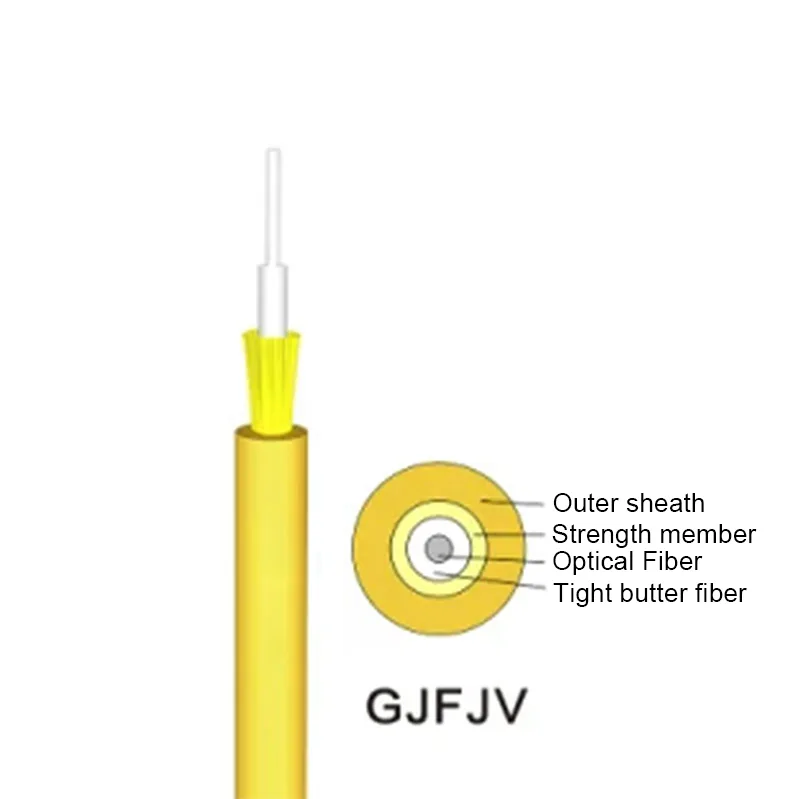

Structions
Optical fiber | Count | 1 | |||
Category | SM/MM | ||||
Tight buffer fiber | Diameter(mm) | 0.6±0.05 | 0.85±0.05 | ||
Material | LSZH/PVC | ||||
Strength member | Aramid yarn | ||||
Outer sheath | Color | Yellow for SM Blue or Orange for OM1/OM2 Aqua for OM3 Auqa or Violet for OM4 Light green for OM5
| |||
Diameter(mm) | 1.6±0.1 | 2.0±0.1 | 3.0±0.2 | ||
Thickness(mm) | 0.3±0.05 | 0.35±0.05 | 0.45±0.05 | ||
Material | LSZH/PVC | ||||
Net weight（kg/km） | Approx. 2.4 | Approx. 3.9 | Approx. 6.9 | ||
Optical Fiber Characteristics
Single mode
Category | G652D （1310nm/1550nm） | G657A1 （1310nm/1550nm） | G657A2 （1310nm/1550nm） | |
Attenuation | Typical | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km |
Max | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | |
Zero dispersion slope | ≤0.091ps/km·nm2 | ≤0.092ps/km·nm2 | ≤0.092ps/km·nm2 | |
Chromatic dispersion（1285-1340nm） | -3.5-3.5ps/（nm·km） | -3.5-3.5ps/（nm·km） | -3.5-3.5ps/（nm·km） | |
MFD（@1310nm） | 9.2±0.4μm | 8.8±0.4μm | 8.8±0.4μm | |
Cut-off wavelength | ≤1260nm | ≤1260nm | ≤1260nm | |
Min bending Radius | 16mm | 10mm | 7.5mm | |
Cladding diameter | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
Multi mode
Category | 62.5/125μm （850nm/1300nm） | 50/125μm （850nm/1300nm） | BIOM3 （850nm/1300nm） | BIOM4 （850nm/1300nm） | |
Attenuation | Typical | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km |
Max | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | |
Bandwidth（MHz·km） | ≥200/≥500 | ≥500/≥500 | ≥1500/≥500 | ≥3500/≥500 | |
Effective mode bandwidth（MHz·km） | —-/—- | —-/—- | ≥2000/—- | ≥4700/—- | |
Min bending Radius（mm） | 30 | 30 | 7.5 | 7.5 | |
Cladding diameter
| 125±1.0μm | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
Mechanical and Environmental performance：
Items | Out diameter(mm) | Short-term | Long-term |
Tensile performance | D≤1.6 | 80N | 40N |
1.6＜D≤2.8 | 100N | 60N | |
D＞2.8 | 150N | 80N | |
Crush resistance | / | 500N/100mm | 100N/100mm |
Min bending radius(“D” is the diameter of the cable) | Static：10D | ||
Dynamic：20D | |||
Installation temperature | -10℃～﹢50℃ | ||
Operating temperature | -20℃～﹢60℃ | ||
The mechanical properties of other optical fibers and optical cables shall meet the international standards of IEC60793 or IEC60794 | |||
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
