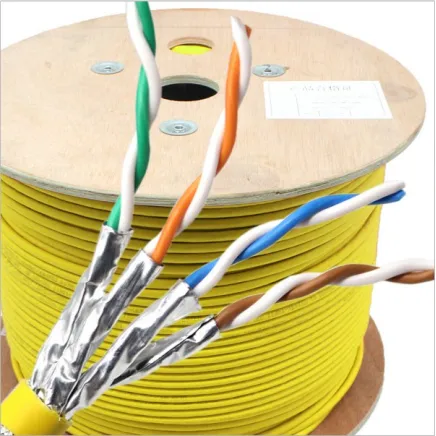

Owire Solid Cat7 Cable S/FTP 305m Box

Twisted pair double shielded data cable cat7 cable for computer

$
S/FTP CAT7(HSYV7) which is mainly adapted to the application and development of 10 Gigabit Ethernet technology. But it is no longer an unshielded twisted-pair cable, but a shielded one, so it can provide a comprehensive attenuation-to-crosstalk ratio of at least 500 MHz and an overall bandwidth of 600 MHz, which is two times Category 6 and Category 6a.
Product Attributes:
Model:
  • cat7 s/ftp
Follow Us

Feature

Owire Solid Cat7 Cable S/FTP 305m Box

Core Specifications

Model
SFTP Cat7 Cable
Conductor Size
26AWG,24AWG,23AWG,22AWG (Customized)
Conductor Material
BC/CU/CCA (Optional)
No.of Conductor
4 Pairs
Insulation Material
HDPE or Skin-foam-skin insulation
Insulation Thickness
0.2mm
Insulation Diameter
1.0mm(±0.02mm)
Jacket Thickness
0.92-0.95mm
Jacket Material
PVC, LSZH
Jacket Color
Grey, Black , Blue, Red, White (Customized)
Shield

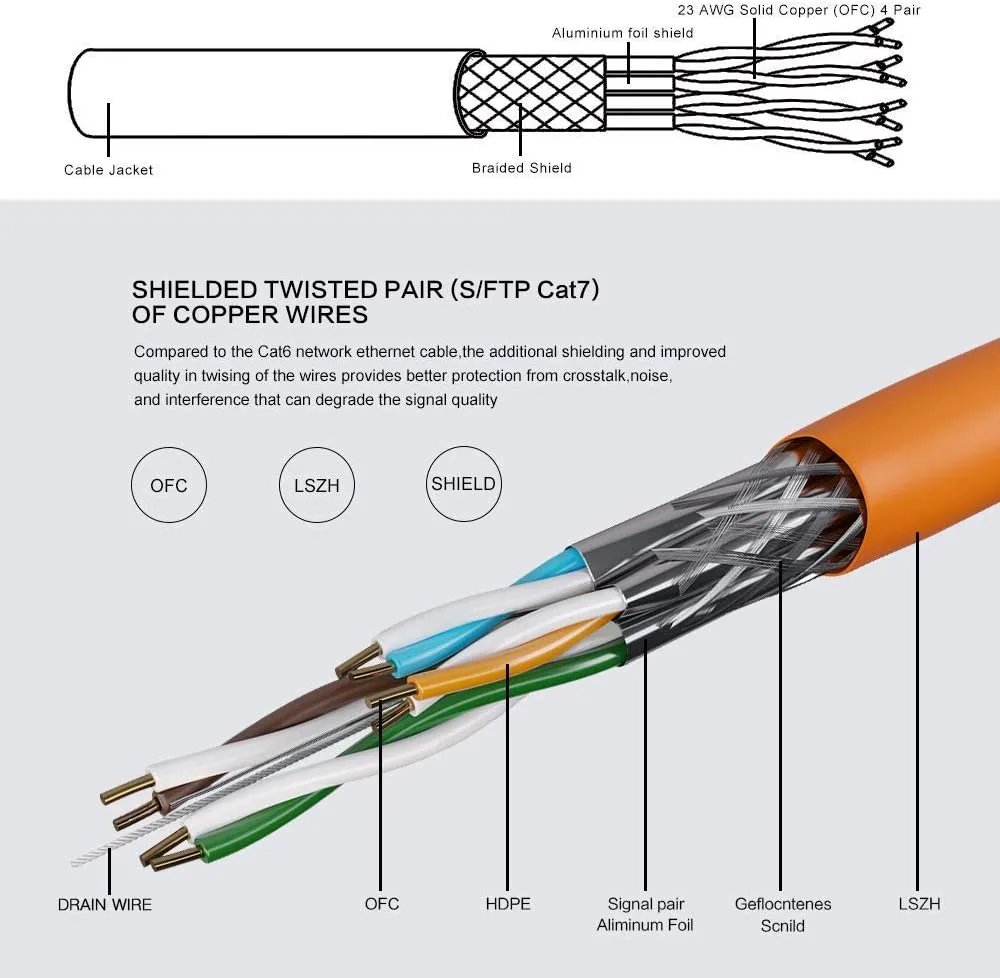

Double shield / shielded with Al foil +braiding net
Impedance
100 ± 22%Ω
Length
1000ft/roll 305m/roll, 100m/roll (Customized)
Printing Words on Cable
Customized
Packing
305m/1000ft, 500m with wooden reel, one roll one carton
Certificates
CE, RoHS, FCC
Operating Temperature
-40 °C – +70 °C
Application
Computer/Switch/Hubs/Router

FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
