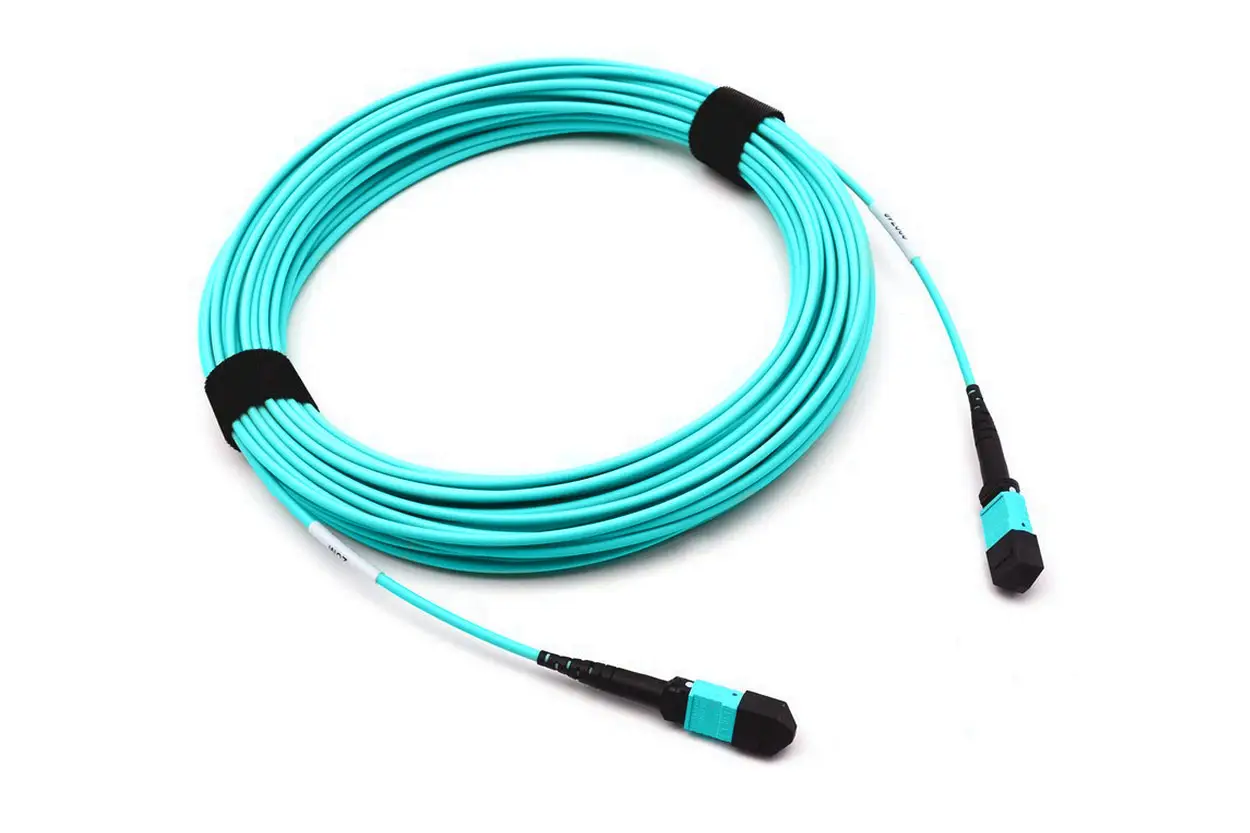

12 Fibers MPO MTP OM4 Trunk Cable Type B Plenum OFNP MTP-MTP MPO-MPO OM4 Multimode Elite Trunk Cable

12 Fibers MPO MTP OM4 Trunk Cable Type B Plenum OFNP MTP-MTP MPO-MPO OM4 Multimode Elite Trunk Cable

We are a manufacturer of 12 Fibers MPO MTP OM4 Trunk Cable Type B Plenum OFNP MTP-MTP MPO-MPO OM4 Multimode Elite Trunk Cable . We supply MPO / MTP fiber optic patch cord cables. in competitive cost and short lead time. Our factory approved ISO9001:2015, and we have UL, CE, FCC, ROHS, CCC, CPR certificates. Our Optical Fiber Cable quality is excellent, price is unbeatable.

Feature

12 Fibers MPO MTP OM4 Trunk Cable Type B Plenum OFNP MTP-MTP MPO-MPO OM4 Multimode Elite Trunk Cable

Core Specifications

MTP® trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. Due to the MTP®-12 also supporting MTP®-8 fiber systems, it is also ideal for 8-fiber parallel multimode optical transceivers applications, such as 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection.
Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.

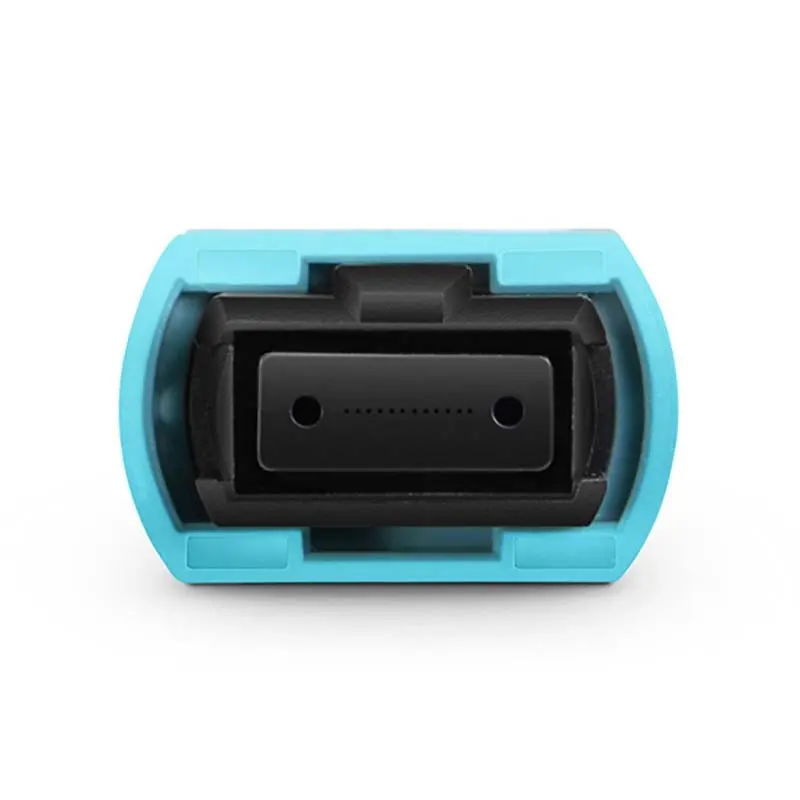

Connector A
US Conec MTP® Female (Pinless)
Connector B
US Conec MTP® Female (Pinless)
Fiber Mode
OM4 50/125μm
Wavelength
850/1300nm
40/100G Ethernet Distance
150m at 850nm
10G Ethernet Distance
400m at 850nm
Glass Fiber
Corning ClearCurve®
RoHS Compliancy Status
Compliant
Polish Type
UPC to UPC
Minimum Bend Radius
7.5mm
Insertion Loss
0.35dB Max (0.15dB Typ.)
Return Loss
≥20dB
Attenuation at 850nm
≤2.3dB/km
Attenuation at 1300nm
≤0.6dB/km
Jacket OD
3.0mm
Cable Jacket
Plenum (OFNP)
Installation Tensile Load
66N
Tensile Strength (Long/Short Term)
80/240N
Operating Temperature
-10 to 70°C (14 to 158℉)
Storage Temperature
-40 to 85°C (-40 to 185℉)


FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
