Feature
- we can custom fiber cable structure, fiber count, length, package for you.
- price unbeatable
- Shortest delivery time, one day produce 2000KM
- Good flame retardant performance.
- High strength loose tube that is hydrolysis resistant.
- Double sheathes and single armor providing excellent crush resistance, water proof, and avoiding rat bite.
- Loose tube wrapped by non-weaven tape has the water blocking ability.

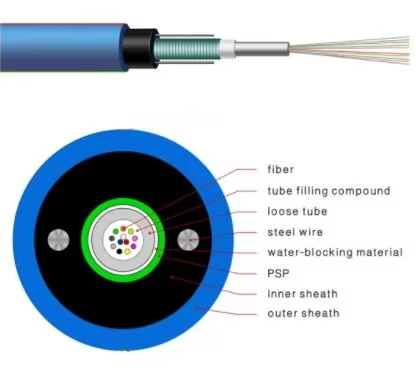

Core Specifications
Features
- Good flame retardant performance.
- High-strength loose tube that is hydrolysis resistant.
- Double sheath and single armor providing excellent crush resistance, waterproof, and rodent protection.
- Loose tube wrapped by non-woven tape provides effective water blocking.
- Special tube filling compound ensures critical fiber protection.
- Blue PVC or LSZH jacket: Flame retardant and easily identifiable by its blue color.
- Excellent crush resistance and flexibility.
Product Specifications
| Item | Description |
|---|---|
| Item Name | MGXTSV Fiber Optic Cable |
| Place of Origin | Guangdong, China |
| Model Number | MGTSV |
| Fiber Type | Single mode ITU-T G652D |
| Fiber No. | 2-24 cores |
| Strength Member | Central Steel Wire |
| Material of Jacket | Flame-retardant Sheath |
| Cable Structure | Unit Tube |
| Certificate | ISO9001/CE/RoHS |
| Storing Temperature | -40℃ to +70℃ |
| Application | Duct/Aerial |
Optical Characteristics
| Items | Wavelength (nm) | Unit | Specification (G652D) |
|---|---|---|---|
| Mode Field Diameter | 1310 | µm | 9.2±0.4 |
| 1550 | µm | 10.4±0.5 | |
| Cladding Diameter | – | µm | 124.8±0.7 |
| Cladding Non-Circularity | – | % | ≤0.7 |
| Core-Cladding Concentricity Error | – | µm | ≤0.5 |
| Coating Diameter | – | µm | 245±5 |
| Coating Non-Circularity | – | % | ≤6.0 |
| Cladding-Coating Concentricity Error | – | µm | ≤12 |
| Cable Cutoff Wavelength | – | nm | ≤1260 |
| Attenuation (max.) | 1310 | dB/km | ≤0.36 |
| 1550 | dB/km | ≤0.22 |
Technical Parameters
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Static/Dynamic |
|---|---|---|---|---|---|
| 2~12 | 8 | 78 | 1000/3000 | 1000/3000 | 10D/20D |
| 14~24 | 10 | 90 | 1000/3000 | 1000/3000 | 10D/20D |
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
