Feature
- FC, SC, ST, LC adapter patch panel for option
- price unbeatable
- Shortest delivery time
Core Specifications
| Product name | Optical Distribution Frame |
| Connector Type | Singlemode or multimode |
| Module Type | Drawer type |
| Simplex or Duplex | Max 96 cores |
| Connector | SC Duplex or LC Quad |
| Dimension | 2U, 19in |
| Material | cold rolled steel sheet |
| Size | 485*250*90mm |
| Color | Black white grey |
| Warranty | Limited life |
| Product Keywords | fiber distribution panel 2U 96 Core,FIBER OPTIC SPLICE BOX 2U 96 Core,2U 96 Core Patchpanel optic |
Description:
Fiber patch panel series of optic distribution boxes ,which are middle capacity and both side operation applicable in the branch connection of fiber termination ,working as distribution box.
It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to
avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.
Feature:
Standard size, light weight and reasonable structure

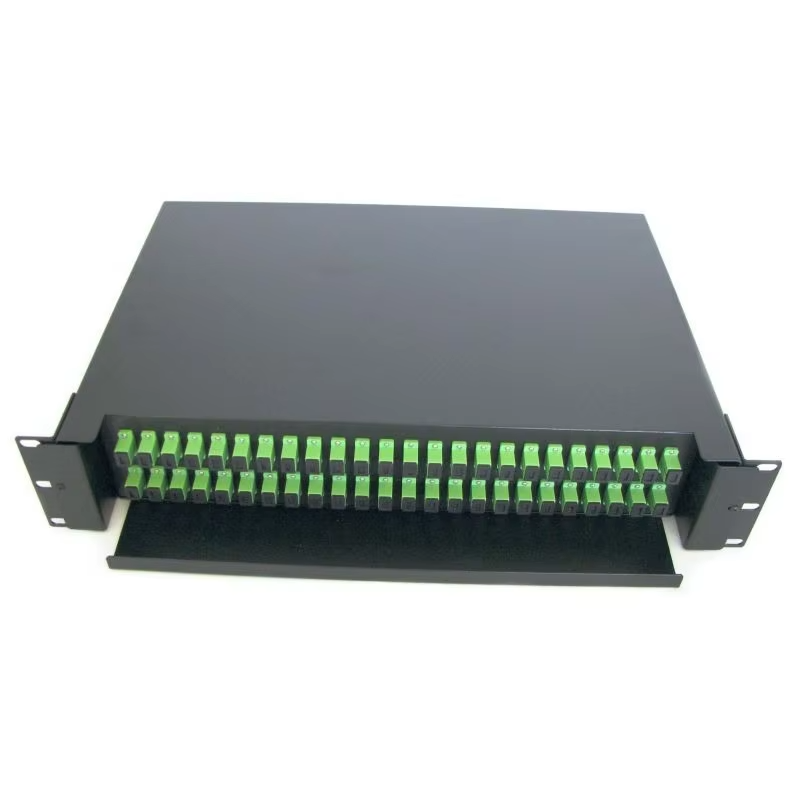

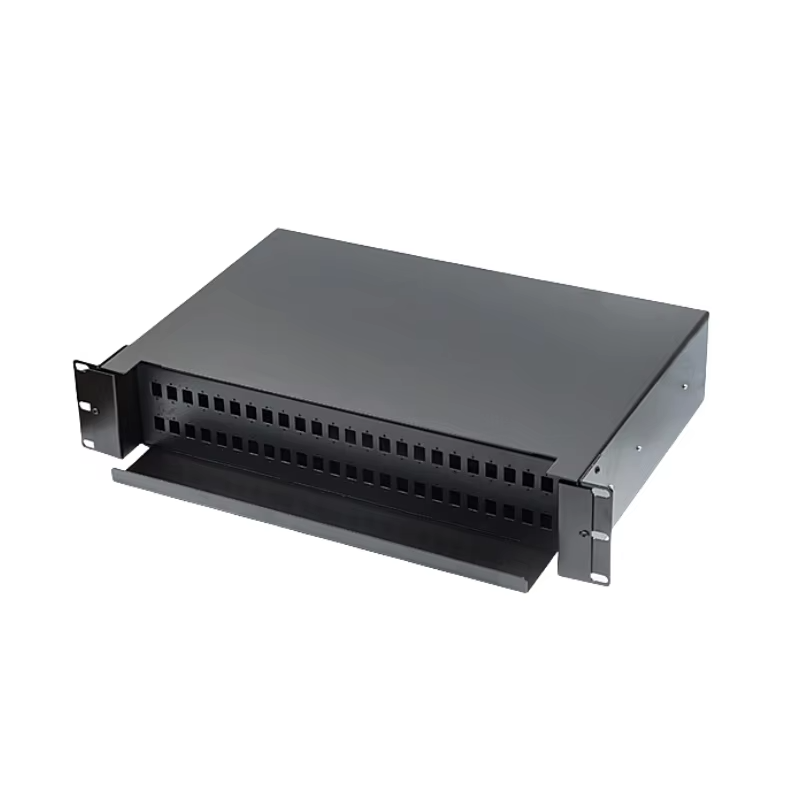

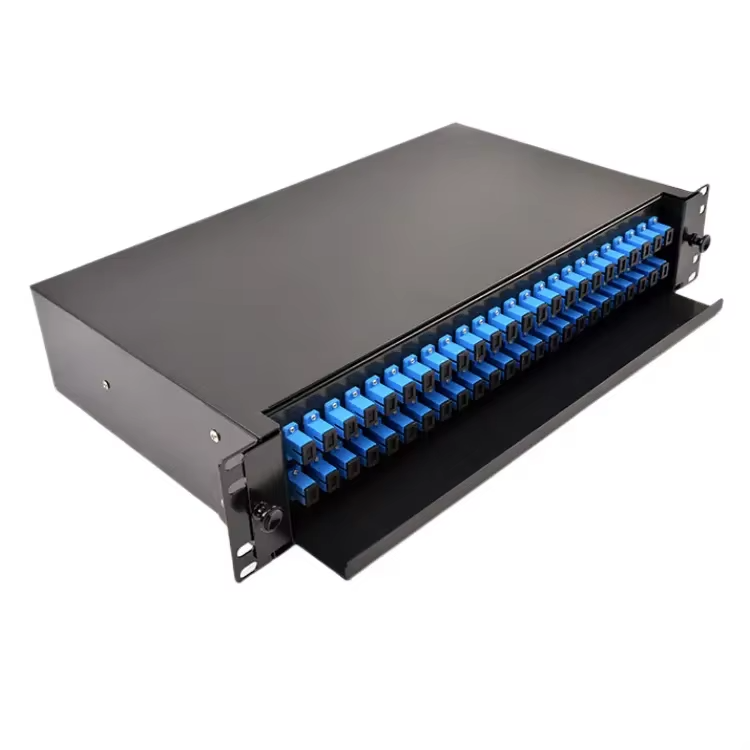

Slide out drawer for easy cable management
FC, SC, ST, LC adapter patch panel for option
Front access panel design for easy operation
Suitable for 19’’ or 23’’ standard optic distribution cabinets
With metal front cover

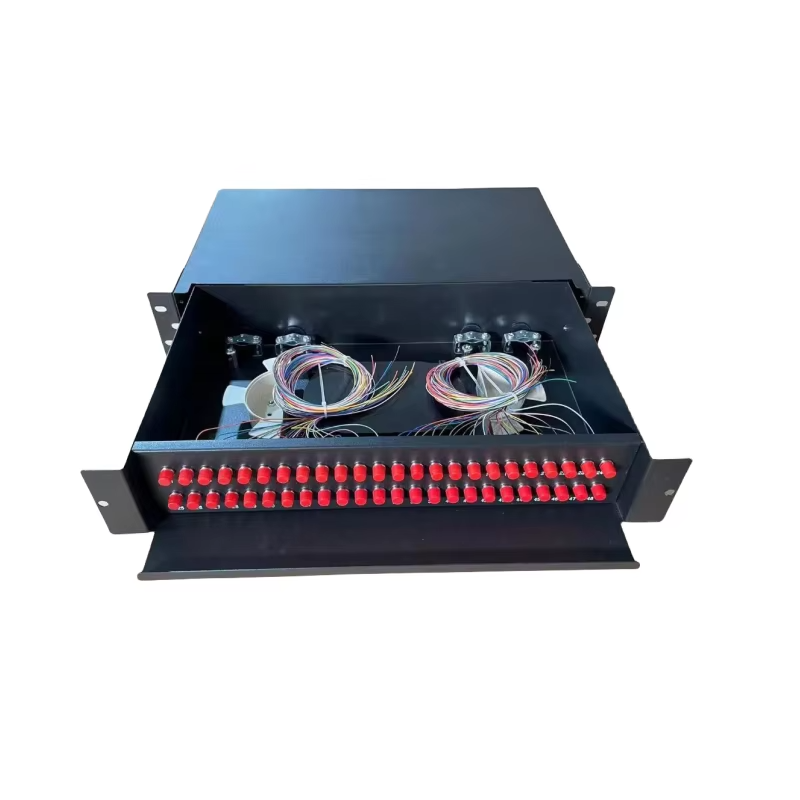

4 pcs splice trays (each 24 fibers)
Max. capacity 96 fibers

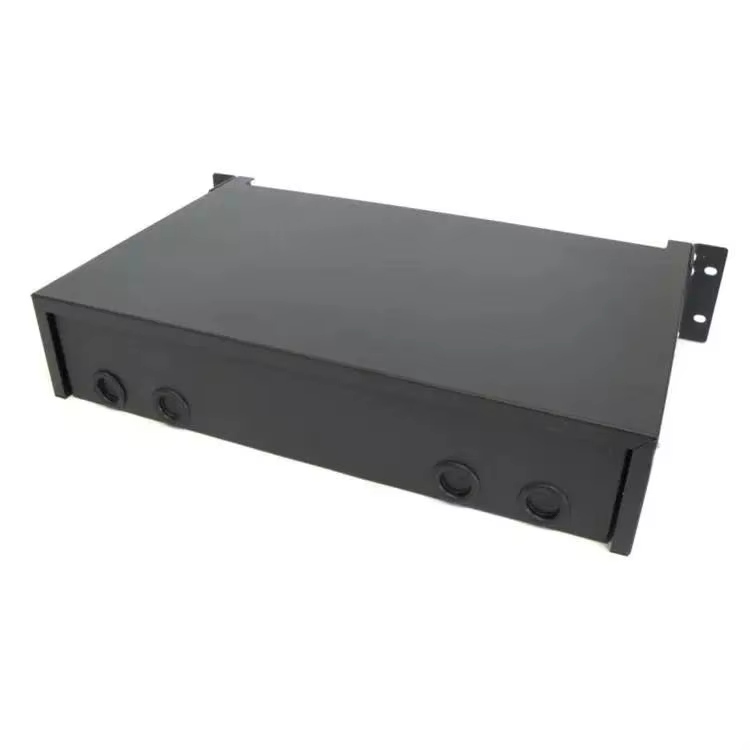

4 fiber cable entry ports at rear side
White or black color
Specification
Model | TW-DR03-2U-96 |
Type | 19inch Rock Mount |
Material | Cold Rolled Steel |
Size W*D*H (mm) | 485*250*90mm |
Max capacity (core) | 96 |
Included accessories | 4pcs cable fix accessories, heat shrink tubes, cable ties, number tapes, adapter screws |
Product color | White or black color |
Working temperature | -40~+85°C |
Storage temperature | -40~+85°C |
