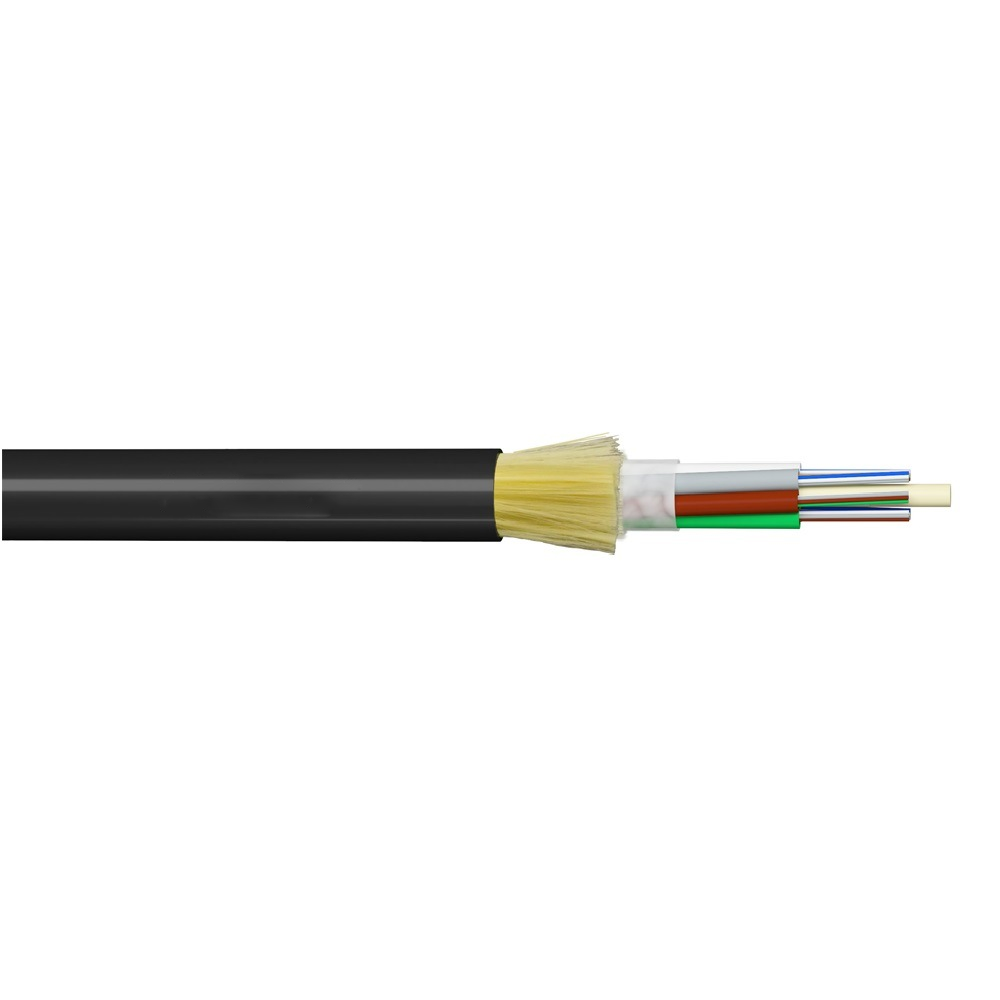

Feature
- Can be installed without shutting off the power
- Excellent AT performance.The maximum inductive at the operating point of AT sheath can reach 25kV
- Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
- Large span lengths and the largest span is over 1000m
- Good performance of tensile strength and temperature
- The design life span is over 30 years
- Self-supporting aerial,especially applicable for installation on the same pole as 220V and below power transmission lines
Core Specifications
Technical Parameters（Ref）
| Ref. Outer diameter (mm) | Ref. weigh(kg/km) | Rec.daily max working Tensile(KN) | Max allowable working tensile (KN) | Break strength | Strength member CSA (mm2) | Modulus of elasticity(KN/mm2) | Heat expansion coefficient(x10-6/K) | Suitable span(m) (NESC Standard,m) | ||||
| PE sheath | AT sheath | A | B | C | D | |||||||
| 11.8 | 117 | 124 | 15 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 12 | 121 | 129 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 12.3 | 126 | 134 | 3 | 8 | 20 | 10.35 | 9.45 | 13 | 300 | 200 | 290 | 200 |
| 12.6 | 133 | 141 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
| 12.8 | 138 | 145 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1 | 420 | 280 | 400 | 280 |
| 13.1 | 145 | 153 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
| 13.5 | 155 | 163 | 6.75 | 18 | 45 | 220 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
| 13.8 | 163 | 171 | 7.95 | 22 | 53 | 26.4 | 18 | 0.3 | 670 | 460 | 650 | 460 |
| 14.4 | 177 | 186 | 9 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
| 14.6 | 182 | 191 | 10.5 | 28 | 70 | 33 | 19.6 | 0.1 | 800 | 560 | 800 | 560 |
| 14.8 | 195 | 204 | 12.75 | 34 | 85 | 40 | 20.1 | 0.1 | 880 | 650 | 880 | 650 |
Optical Characteristics
| fiber type | Attenuation | (OFL) | Numerical Aperture | Cable Cut-off Wavelength（λcc） | |||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | ||||
| Typical | Max | Typical | Max | ||||
| unit | dB/km | dB/km | dB/km | dB/km | MHz.km | — | nm |
| G652 | 0.35/0.21 | 0.4/0.3 | — | — | — | — | ≤1260 |
| G655 | 0.36/0.22 | 0.4/0.3 | — | — | — | — | ≤1450 |
| 50/125 | — | — | 3.0/1.0 | 3.5/1.5 | ≥500/500 | 0.200±0.015 | — |
| 62.5/125 | — | — | 3.0/1.0 | 3.5/1.5 | ≥200/500 | 0.275±0.015 | — |
Transport/Storage/Operating Temperature:-40℃~+70℃
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
