Feature
- we can custom fiber cable structure, fiber count, length, package for you.
- price unbeatable
- Shortest delivery time for you, we produce 2000KM / day
- Suitable for use on distribution and high voltage transmission lines with mini spans or self-supporting installation for telecommunication
- Track -Resistant outer jacket available for the high voltage
- Gel-Filled buffer tubes are S-Z stranded
- The fiber counts from 2-288 fibers
Core Specifications
Fiber core can be customized.

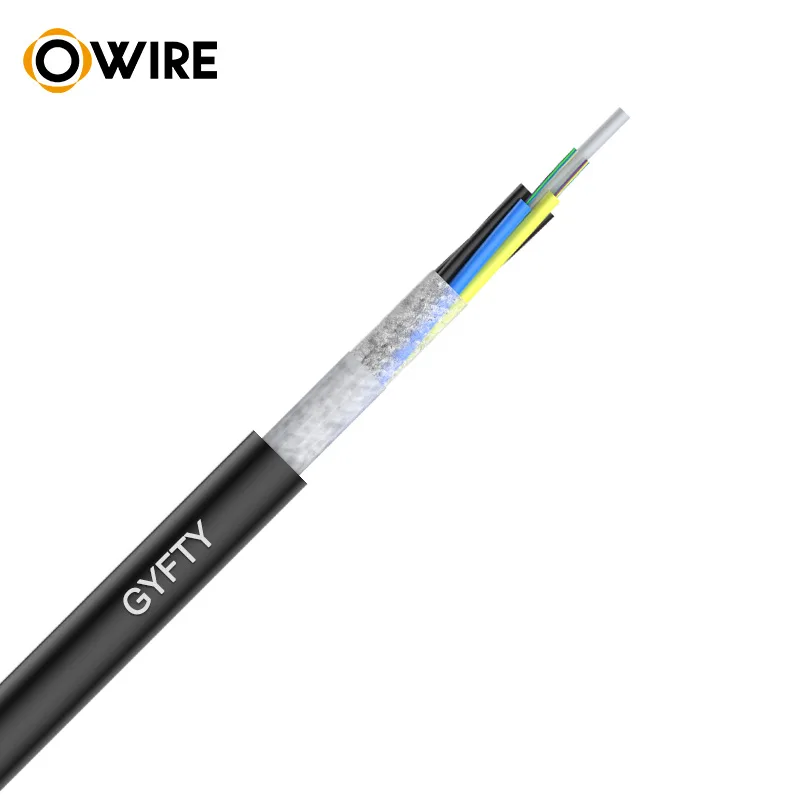

Non-armored loose tube fiber optic cable that comes with a Fiberglass Reinforced Plastic (FRP) central strength member which can contain up to a maximum of up to 24 water-blocking gel-filled tubes. Each tube can contain up to a maximum of 12 fibers. This cable comes with a layer of water blocking tape to prevent water penetration and PE outer jacket.
Features:
- Light weight, small diameter, easy to lay.
- Excellent mechanical and temperature performance.
- Low dispersion and attenuation.
- Special filling get filled loose tubes provide perfect optical fiber protection.
- Non-metal central strength has a excellent anti-electromagnetic ability.
- Water blocking system provide reliable performance of moisture-proof and water block.
- The fiber reinforced plastic and loose tube filling compound can ensure the cable watertight.
- The fiber counts from 2-288 fibers.
Application:
- Laying modes: Aerial or Duct
- Electromagnetic interfering places
- Outdoor distribution
- Access network and local network
Fiber Type:
G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options

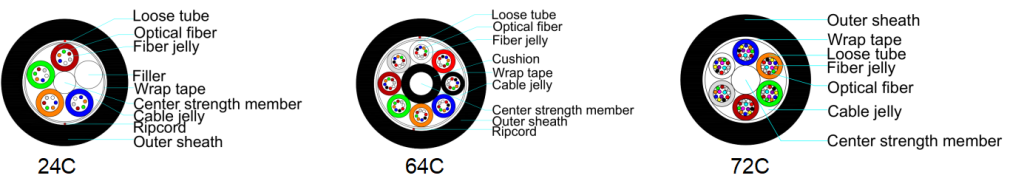

Structure:
Items | Descriptions | |
Optical fiber | Category | SM / MM |
Counts | 2-288 | |
Color | Blue 、Orange、Green、Brown、Gray、White、Red、Black、Yellow、Violet、Pink、Aqua | |
Loose tube | Material | PBT |
Color | Blue 、Orange、Green、Brown、Gray、White、Red、Black、Yellow、Violet、Pink、Aqua | |
Infilling | Fiber jelly | |
Possible filler | Material | PP |
Color | Natural or Black | |
Center strength member | Material | FRP |
Red ripcord | 2*3000D(Red) | |
Cable core water-blocking material | Cable jelly or Water-blocking yarn and Water-blocking tape | |
Outer sheath | Thickness(mm) | 1.6±0.1 |
Material | PE | |
Color | Black | |
Optical Characteristics
Single mode
Category | G652D （1310nm/1550nm） | G657A1 （1310nm/1550nm） | G657A2 （1310nm/1550nm） | |
Attenuation | Typical | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km |
Max | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | |
Zero dispersion slope | ≤0.091ps/km·nm2 | ≤0.092ps/km·nm2 | ≤0.092ps/km·nm2 | |
Chromatic dispersion（1285-1340nm） | -3.5-3.5ps/（nm·km） | -3.5-3.5ps/（nm·km） | -3.5-3.5ps/（nm·km） | |
MFD（@1310nm） | 9.2±0.4μm | 8.8±0.4μm | 8.8±0.4μm | |
Cut-off wavelength | ≤1260nm | ≤1260nm | ≤1260nm | |
Min bending Radius | 16mm | 10mm | 7.5mm | |
Cladding diameter | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
Multi mode
Category | 62.5/125μm （850nm/1300nm） | 50/125μm （850nm/1300nm） | BIOM3 （850nm/1300nm） | BIOM4 （850nm/1300nm） | |
Attenuation | Typical | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km |
Max | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | |
Bandwidth（MHz·km） | ≥200/≥500 | ≥500/≥500 | ≥1500/≥500 | ≥3500/≥500 | |
Effective mode bandwidth（MHz·km） | —-/—- | —-/—- | ≥2000/—- | ≥4700/—- | |
Min bending Radius（mm） | 30 | 30 | 7.5 | 7.5 | |
Cladding diameter | 125±1.0μm | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
Mechanical and Environmental performance:
Items | Descriptions | |
Long-term | Short-term | |
Tensile performance | 600N | 1500N |
Crush resistance | 300N/100mm | 1000N/100mm |
Min bending radius(“D” is the diameter of the cable) | Static：12.5D | |
Dynamic：20D | ||
Installation temperature | -20℃～﹢60℃ | |
Operating temperature | -40℃～﹢70℃ | |
The mechanical properties of other optical fibers and optical cables shall meet the international standards of IEC60793 or IEC60794 | ||
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
