Feature
- we can custom fiber Patch cord cable structure, fiber count, connector types, length, package for you.
- price unbeatable
- Shortest delivery time
- Door to door delivery to all over the world
- LC, SC, ST, FC, LSH,MTRJ, MU connectors are available.
- OS1, OS2, OM1, OM2, OM3, OM4,OM5 are available.
Core Specifications
| Product | Armoured (Spiral Steel Tape) LSZH Optical Patchcord |
| Pre-Terminated Connector | LC/SC/FC/ST |
| Polished | UPC or APC |
| Fiber Count | SX/DX/4C/6C/8C/12C/24C |
| Fiber Mode | 62.5/125,50/125 |
| Jacket Color | Grey,Black |
| Insertion Loss | < 0.3 DB |
| Return Loss | SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
| Jacket Materials | PVC LSZH,TPU |
| Diameter | 3.0mm,4.8mm |
| Product Keywords | 12 core armored patch cable,12 Core Armoured Fiber Jumper,62.5/125 Fiber Optic Cable LC to LC |

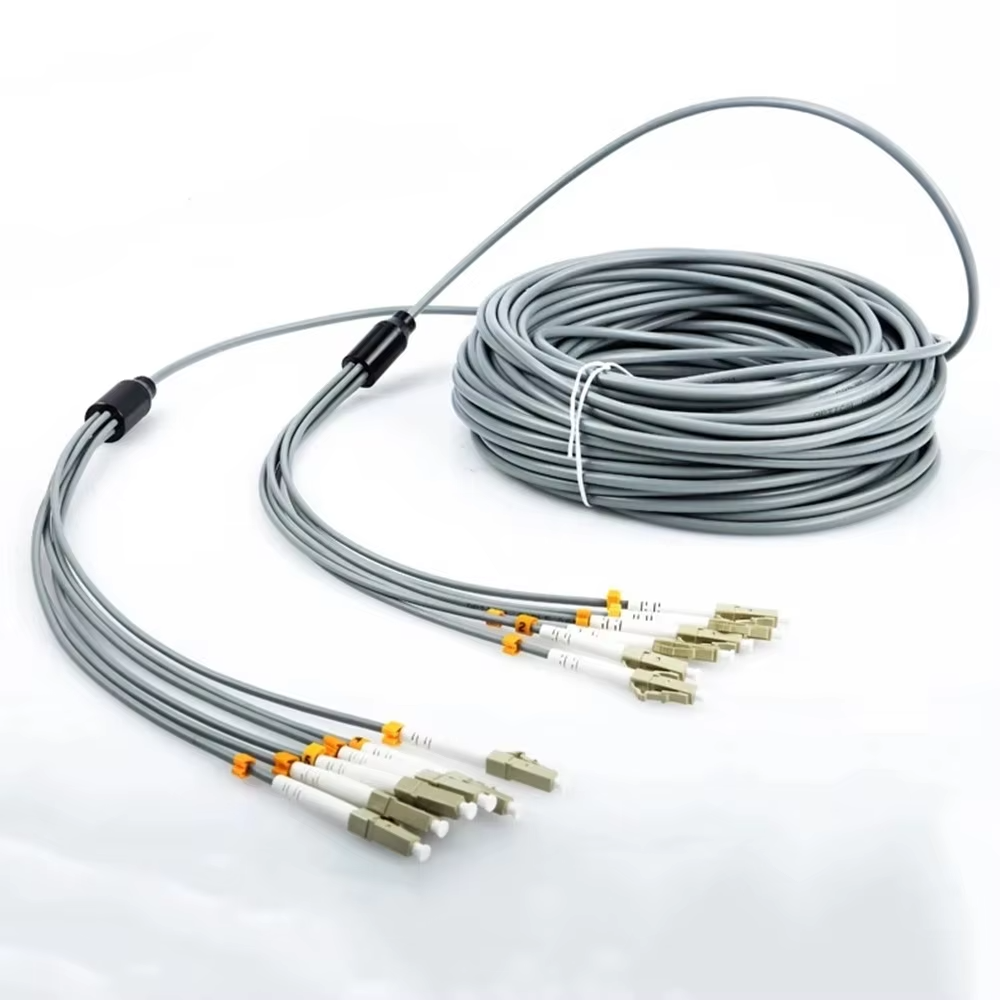

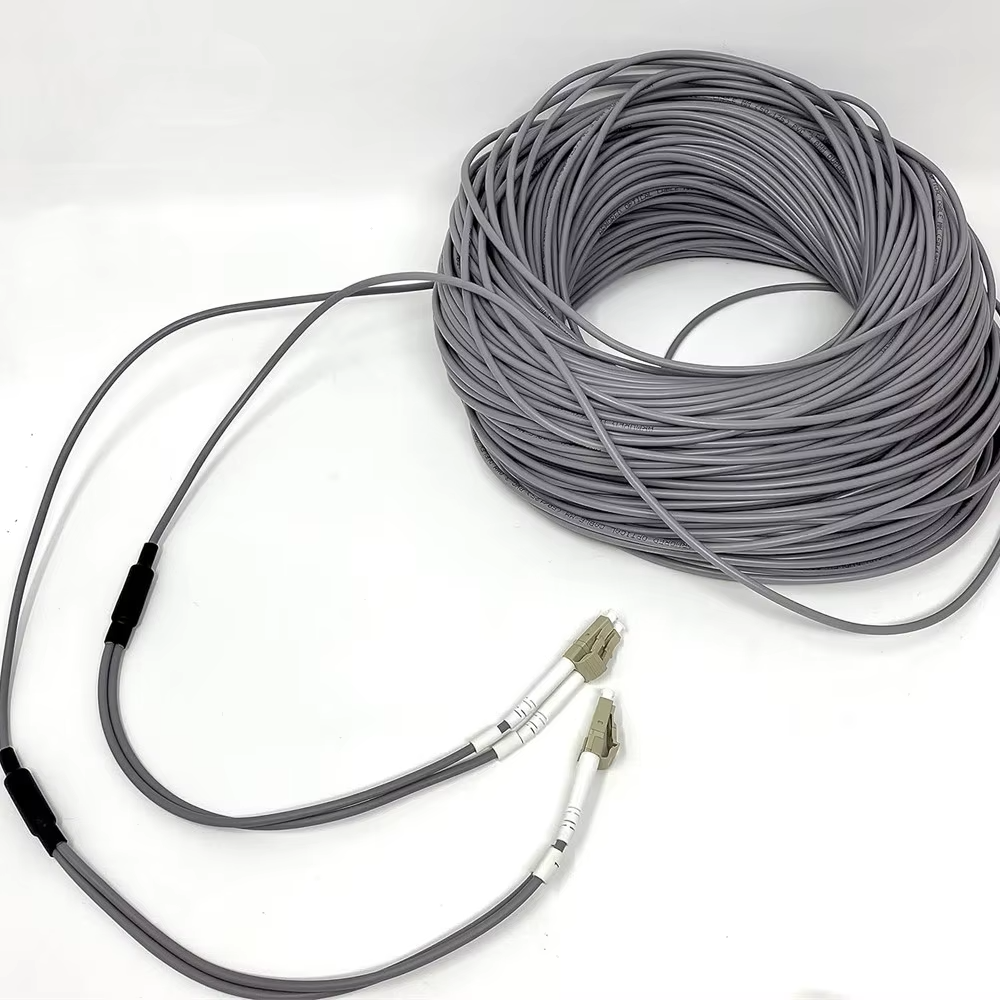

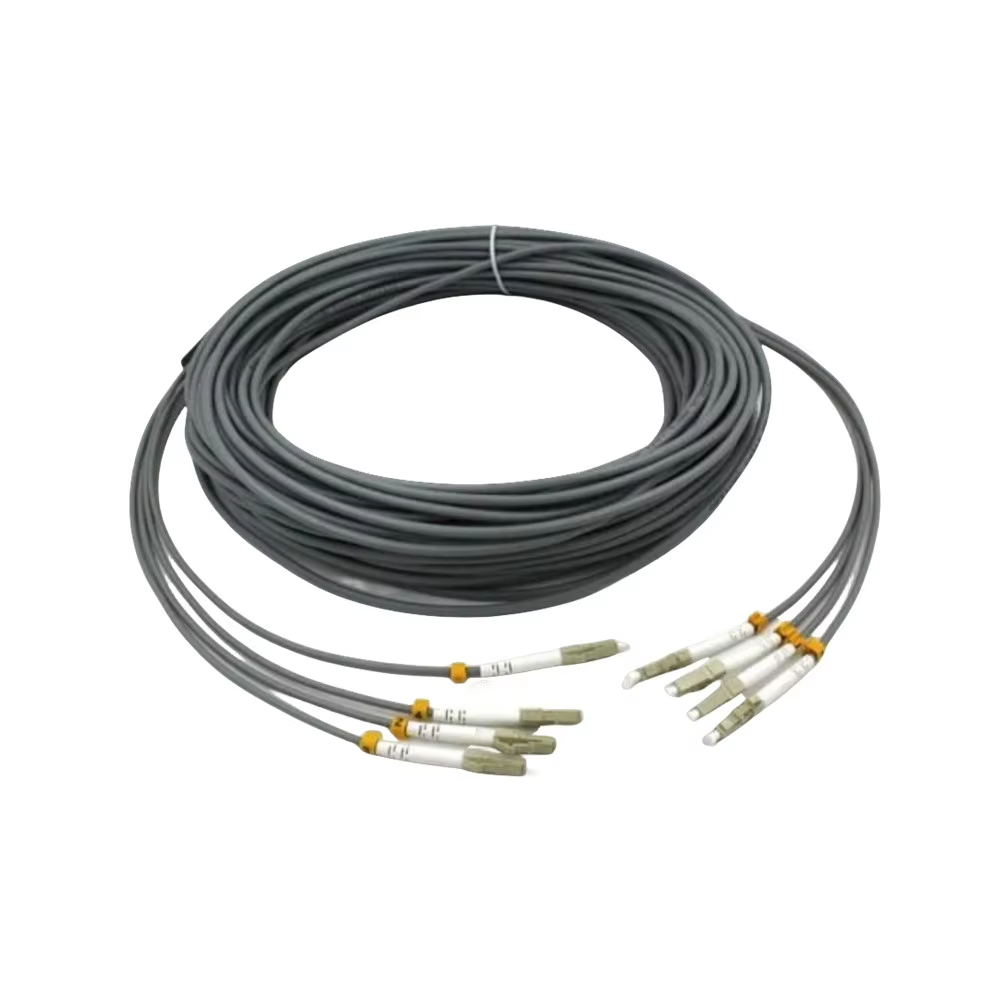

Product description:
Armored tactical cable features strong tensile strength, strong pressure resistance and good flexibility characteristics. Besides, it is bending resistant, oil resistant, wear resistant and flame retardant.
Therefore, armored tactical cable is ideal for both indoor and outdoor applications, such as rapid wiring or repeated retrieval in military field or connecting the networks of two buildings either through the use of an underground conduit or not.
Product Highlights

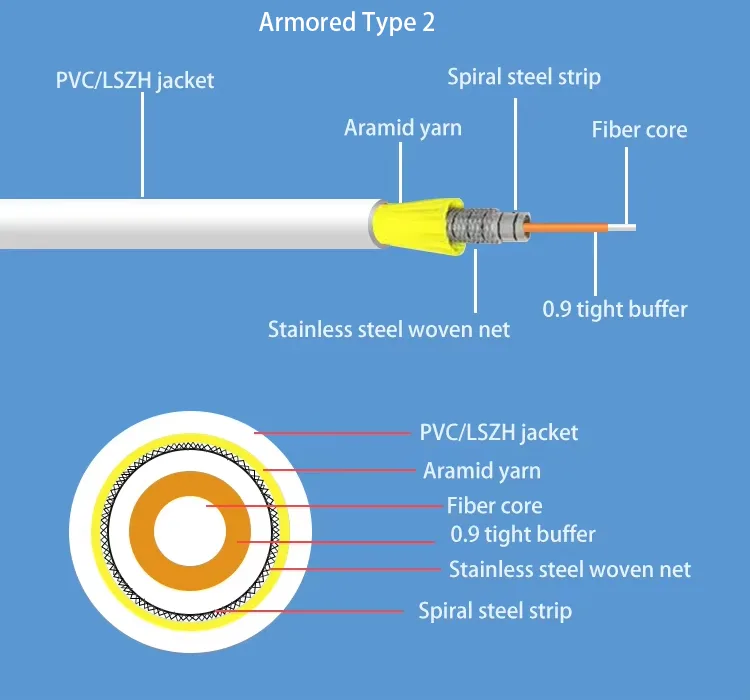

- Helical Steel Armor Provides Additional Crush and Rodent Protection
- Routing Indoor Including Data Center Racks, Raised Floors and Runs Between Floors
- Eliminate the Need for Conduits to Improve Design Flexibility and Lower Installed Costs

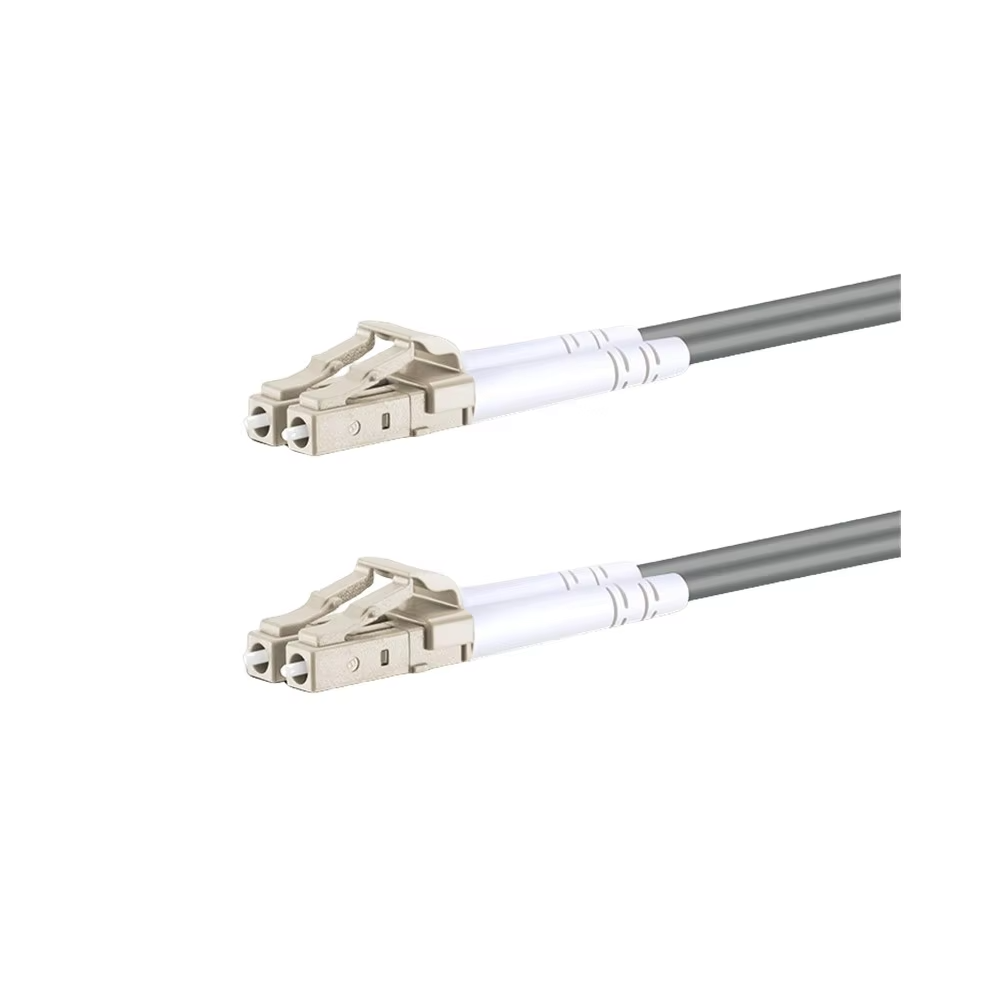

- Precision Zirconia Ferrule Connectors Ensure Consistent Loss
- Pull-proof Jacket with Max. 225N Tensile Strength
Performance:
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Return Loss | SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
| Mechanical life | 500cycles |
| Working temperature | -20°C~+70°C |
| Storage temperature | -20°C~+70°C |
| Tensile Data | Tensile between junction and fiber cable≥100N |
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
