Feature
- we can custom fiber cable structure, fiber count, length, package for you.
- price unbeatable
- Shortest delivery time for you, we produce 2000KM / day
- Self supporting Aerial for FTTH Solution
- Used for indoor wiring, the end user with cable directly;
- Used for building introduction of optical cable;
- The user in the FTTH indoor wiring.
Core Specifications
Application:
Self supporting Aerial for FTTH Solution
1. Used for indoor wiring, the end user with cable directly;
2. Used for building introduction of optical cable;
3. The user in the FTTH indoor wiring.
Temperature Range:
Operating :-40℃ to +70℃
Storage :-40℃ to +70℃
Characteristic:
1. Accurate optical fiber excess length ensures good mechanical and temperature performance.,
2. High strength loose tube that is hydrolysis resistant and special tube filling compound and flexibility.

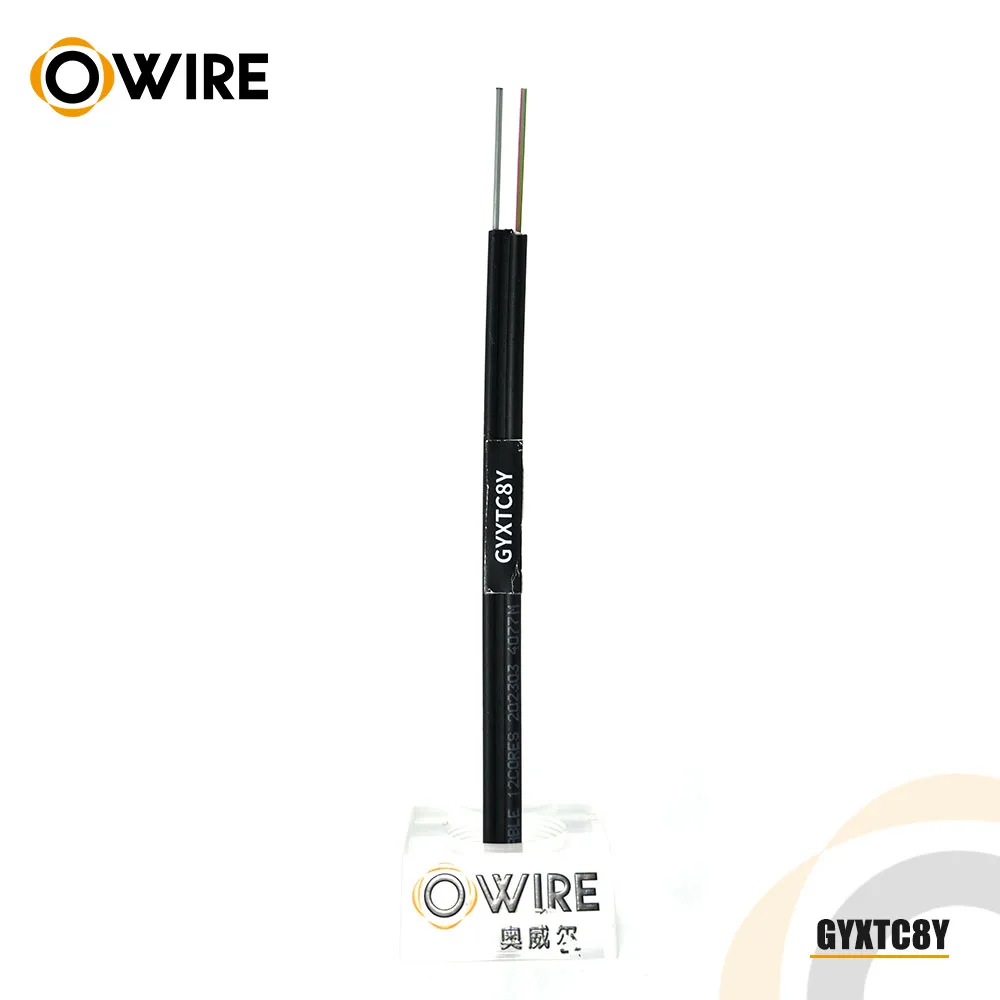

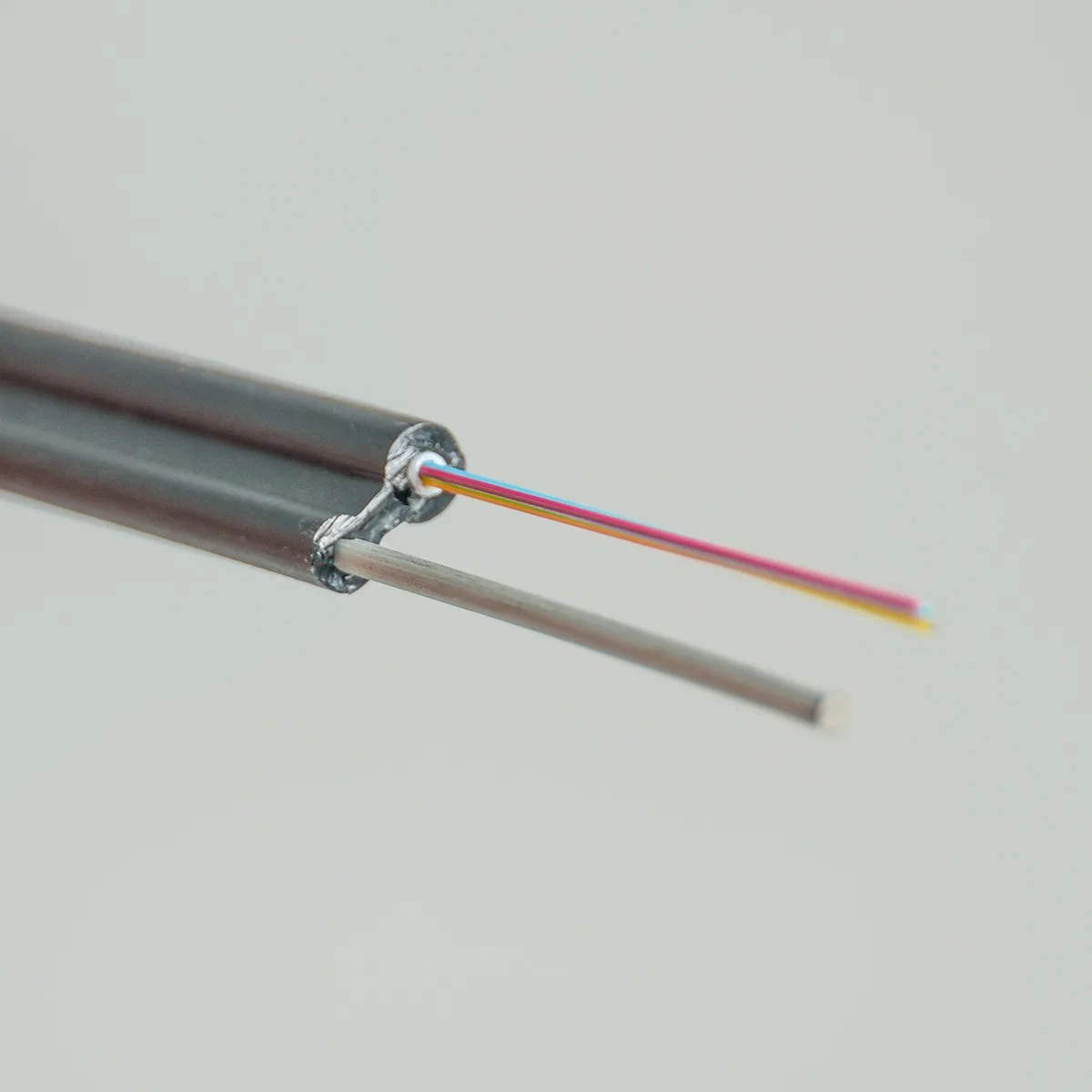

3. Figure 8 self supporting type structure possesses high tensile strength and is convenient for aerial installation and its installation cost is cheap.
4. The service life of the products willbe more 30 years.
5. Light, flexible, easy for the laying and it is used for FTTH solution.
Standards:
Comply with stand YD/T 1155-2001 as well as IEC60794-1.

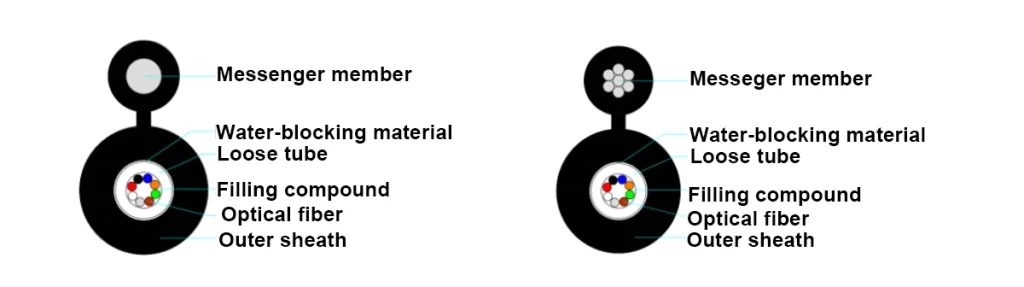

The 250μm fibers are positioned in a loose tube made of a high modulus plastic.The tube is filled with a water-resistant filling compound.The tube is located in the center of the cable,covered with water-blocking yarn or water-blocking tape ,steel wire or stranded steel wire as self-supporting member,the cable is sheathed by PE material.The cross section of the cable is figure 8.
Technical Parameters
Cable Model | Fiber Count | Cable Diameter mm | (kg/km) Cable Weight (Ref) | (N) Tensile Strength Long/Short Term | (N/100mm) Crush Resistance Long/Short Term | (mm) Bending Radius Static/Dynamic |
GYXTC8Y-(2-8)C | 2-8 | 3.7×6.0 | 22 | 300/600 | 300/1000 | 10H/20H |
GYXTC8Y-(10-12)C | 10-12 | 4.6×9.0 | 40 | 600/1500 | 300/1000 | 10H/20H |
Optical Characteristics
fiber type | Attenuation | (OFL) | Numerical Aperture | Cable Cut-off Wavelength（λcc） | |||
Condition | 1310/1550nm | 850/1300nm | 850/1300nm | ||||
Typical | Max | Typical | Max | ||||
unit | dB/km | dB/km | dB/km | dB/km | MHz.km | — | nm |
G652 | 0.35/0.21 | 0.4/0.3 | — | — | — | — | ≤1260 |
G655 | 0.36/0.22 | 0.4/0.3 | — | — | — | — | ≤1450 |
50/125 | — | — | 3.0/1.0 | 3.5/1.5 | ≥500/500 | 0.200±0.015 | — |
62.5/125 | — | — | 3.0/1.0 | 3.5/1.5 | ≥200/500 | 0.275±0.015 | — |
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
