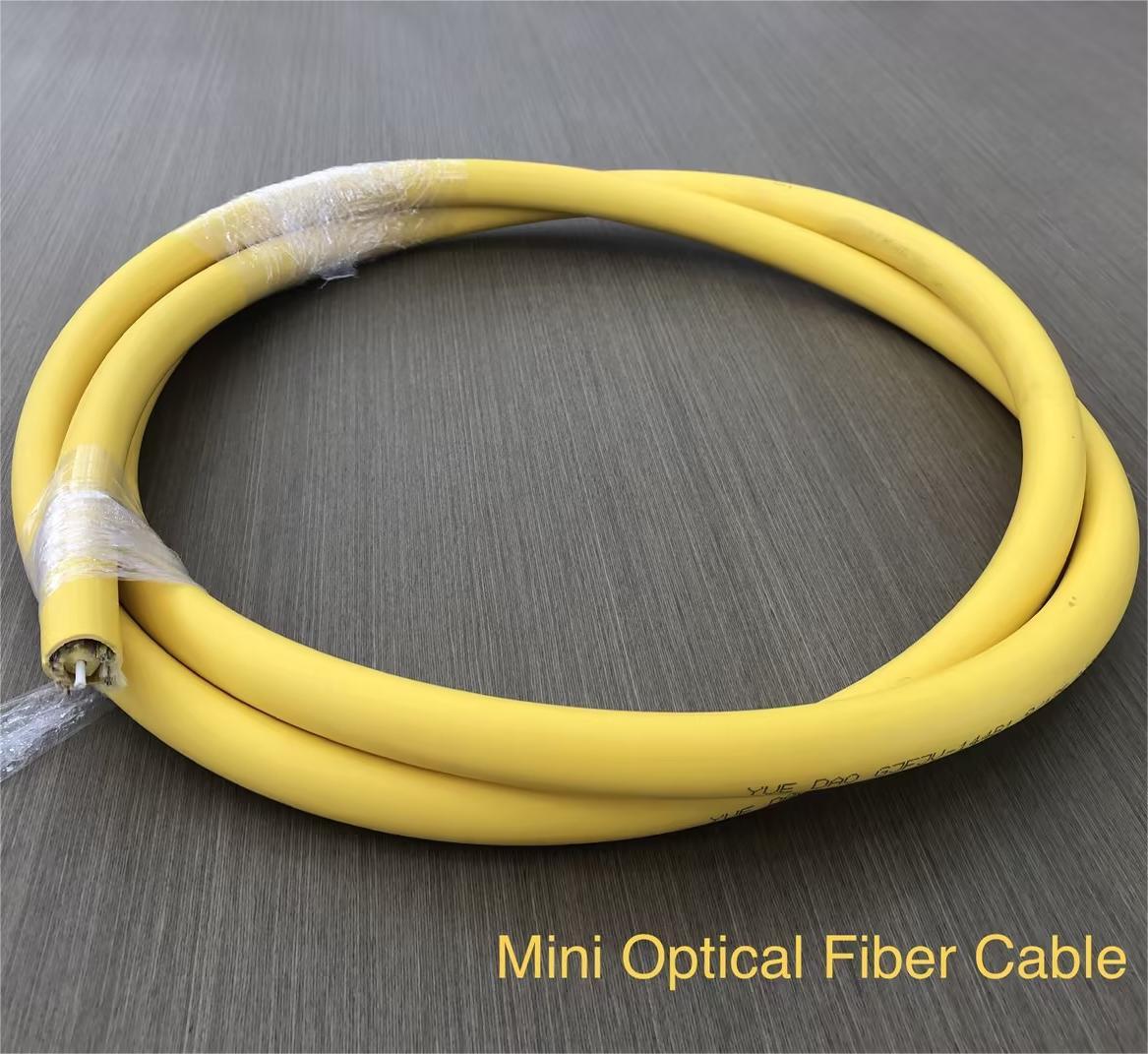

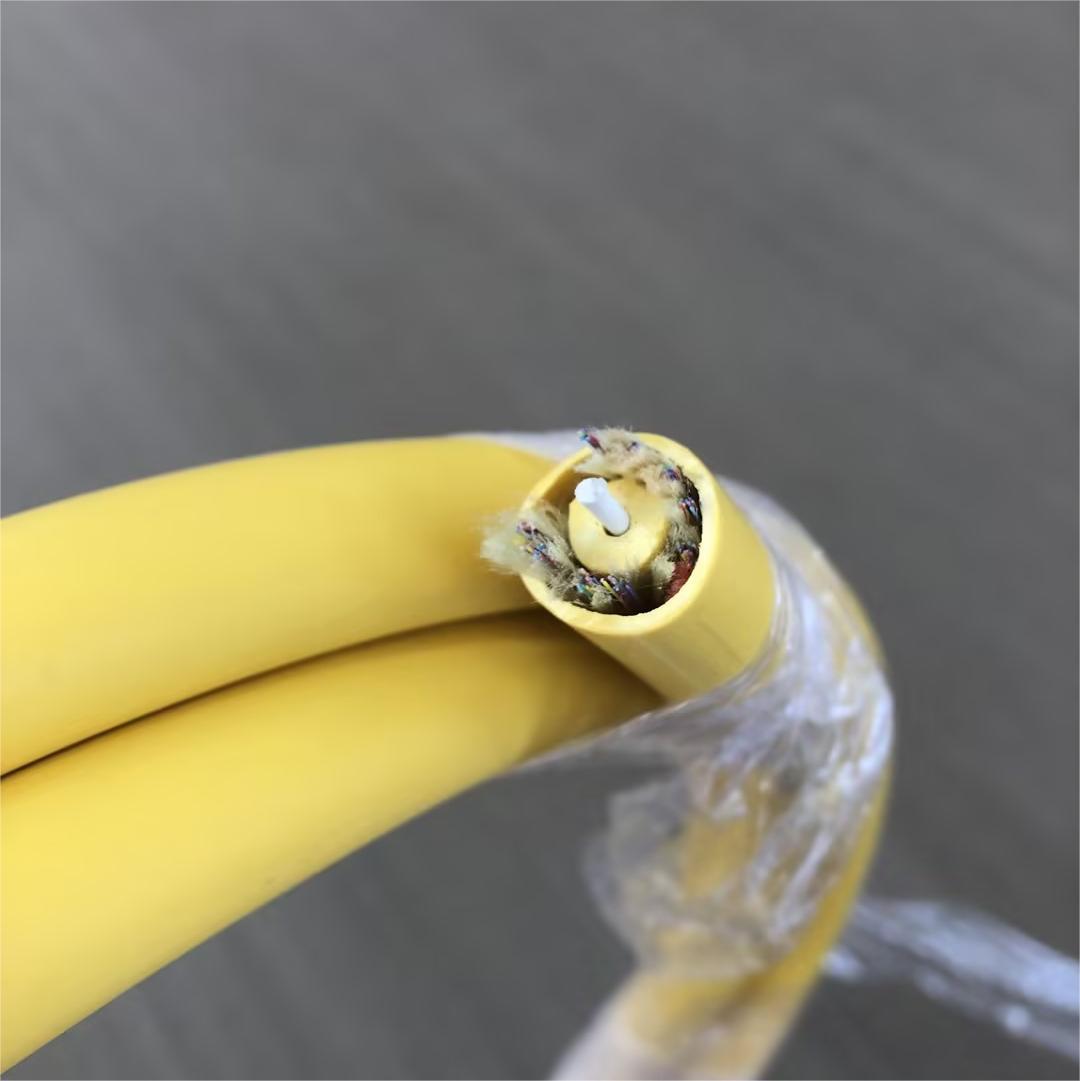

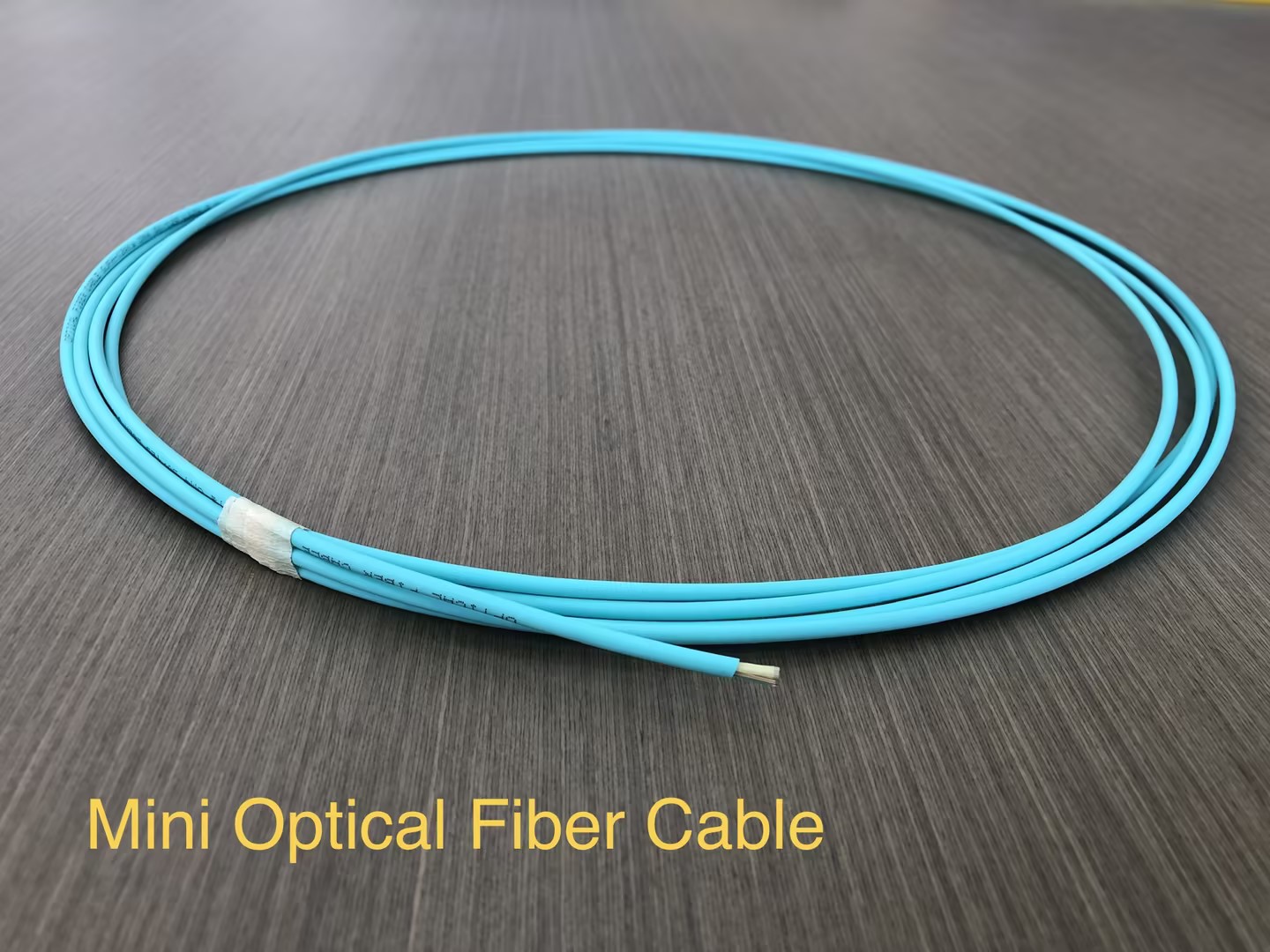

GJIFH/V-(2-384)C Mini Optical Fiber Cable

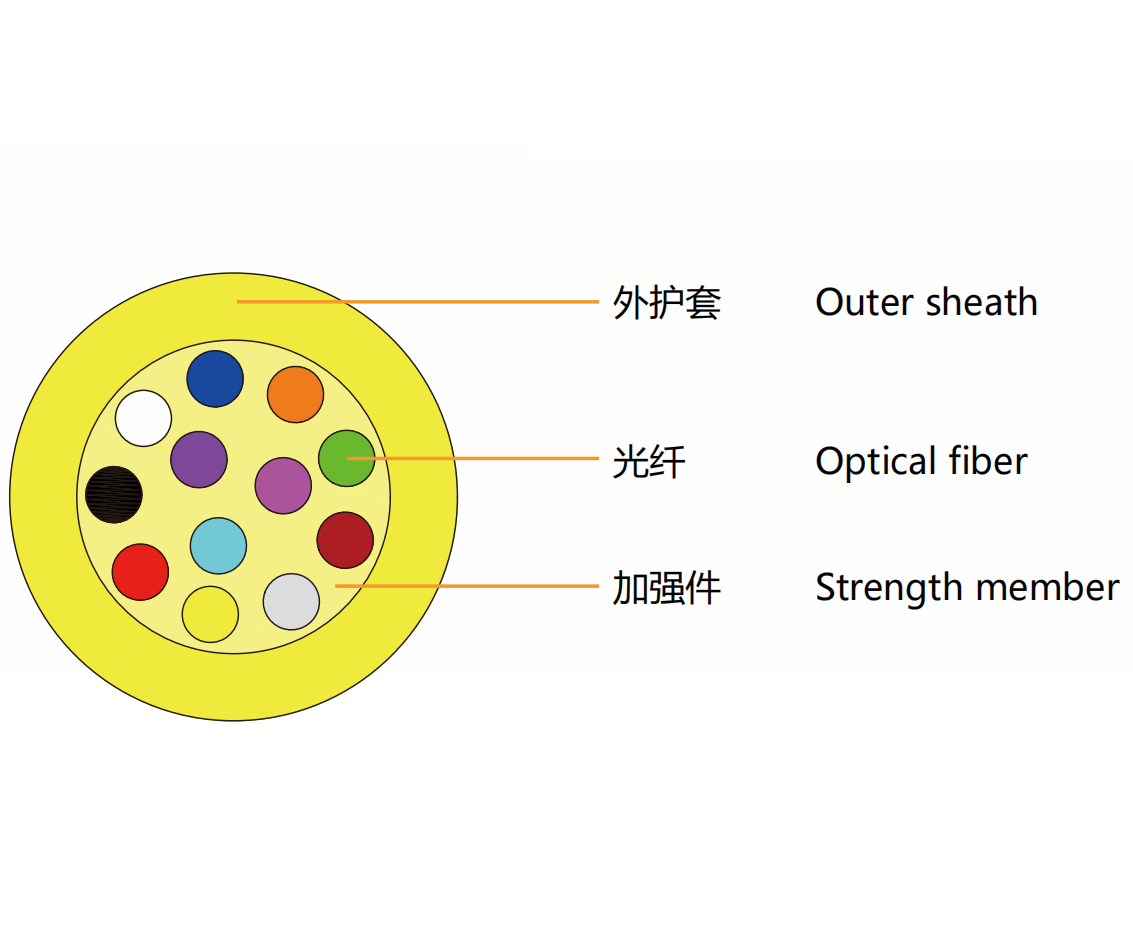

Mini optical fiber indoor cable use several φ250μm colored fiber as optical communication medium,the colored fiber wrapped with a layer of aramid yarn as strength member units,and the cable is sheathed by a PVC or LSZH(Low smoke,Zero halogen, Flame-retardant)material.

Product Attributes:

Model:

GJIFH/V-(2-384)C

Applications

Indoor General Cable Distribution

Backbone Distribution Cable in Buildings

Temperature Specifications

Item	Temperature Range
Transport / Storage / Operating Temperature	-20°C ~ +60°C
Installation Temperature	-5°C ~ +50°C

Technical Parameters

Cable Code	Cable Diameter (mm)	PVC Sheath Weight (kg/km)	LSZH Sheath Weight (kg/km)	Tensile Strength (N) Long / Short Term	Crush Resistance (N/100mm) Long / Short Term	Bending Radius Static / Dynamic

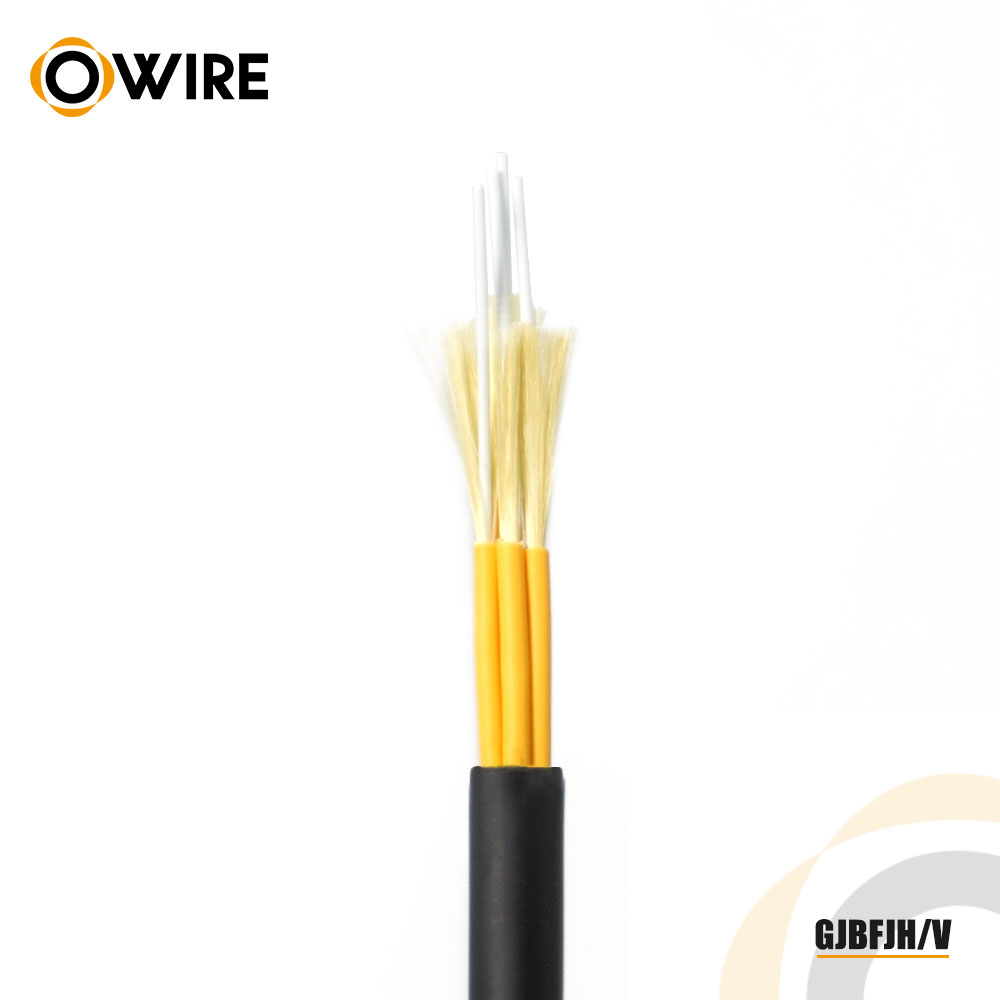

GJBFJH/V-4C	7.0 ± 0.2	43	44	130 / 440	300 / 1000	10D / 20D
GJBFJH/V-6C	8.0 ± 0.2	62	64	200 / 660	300 / 1000	10D / 20D
GJBFJH/V-8C	9.2 ± 0.3	83	85	200 / 660	300 / 1000	10D / 20D
GJBFJH/V-12C	12.2 ± 0.3	146	150	200 / 660	300 / 1000	10D / 20D
GJBFJH/V-24C	13.8 ± 0.3	182	185	400 / 1320	300 / 1000	10D / 20D

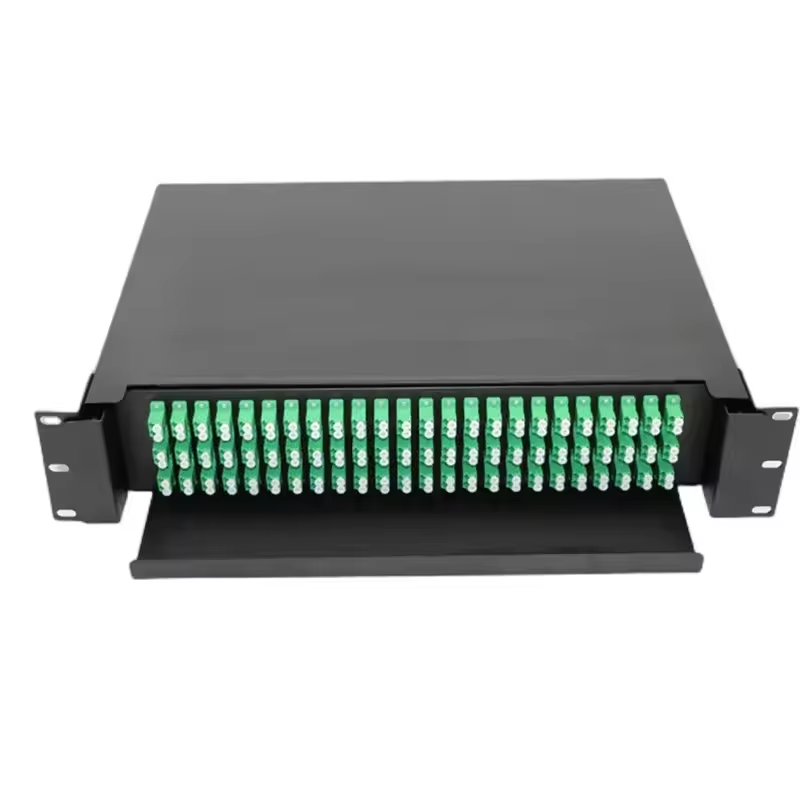

We are a SC LC FC ST 6port Distribution Box 1u 19'' Rack mount Sliding ODF Fiber Optic Patch Panel Manufacturer. We supply fiber optic panels in competitive cost and short lead time. Our factory approved ISO9001:2015, and we have UL, CE, FCC, ROHS, CCC, CPR certificates. Our Optical Fiber Cable quality is excellent, price is unbeatable.
