Feature
- Designed to prevent the hindrance of cross talk in all applications
- Consistent high rate connections with proven speed and reliability
- Shielded and unshielded CAT cable meet the needs of various job and project requirements
- Quickly and easily connect Ethernet connections, telephony, and video signals, and more with cable designed for longevity.
Core Specifications
Model | U/FTP Cat6a Cable | |||
Conductor Size | 26AWG,24AWG,23AWG,22AWG (Customized) | |||
Conductor Material | BC/CU/CCA(Optional) | |||

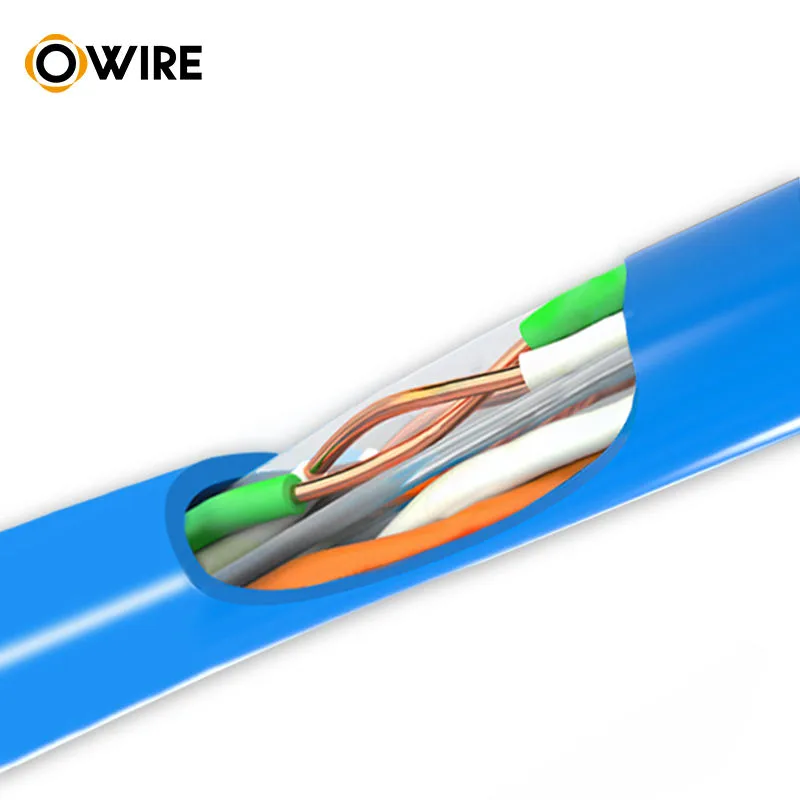

No.of Conductor | 4 Pairs | |||
Insulation Material | HDPE or Skin-foam-skin insulation | |||
Insulation Thickness | 0.2mm | |||
Insulation Diameter | 1.0mm(±0.02mm) | |||
Jacket Thickness | 0.92-0.95mm | |||
Jacket Material | PVC, LSZH | |||
Jacket Color | Grey, Black , Blue, Red, White (Customized) | |||
Shield | shielded, 4 pairs with Al foil | |||
Impedance | 100 ± 22%Ω | |||
Length | 1000ft/roll 305m/roll, 100m/roll (Customized) | |||

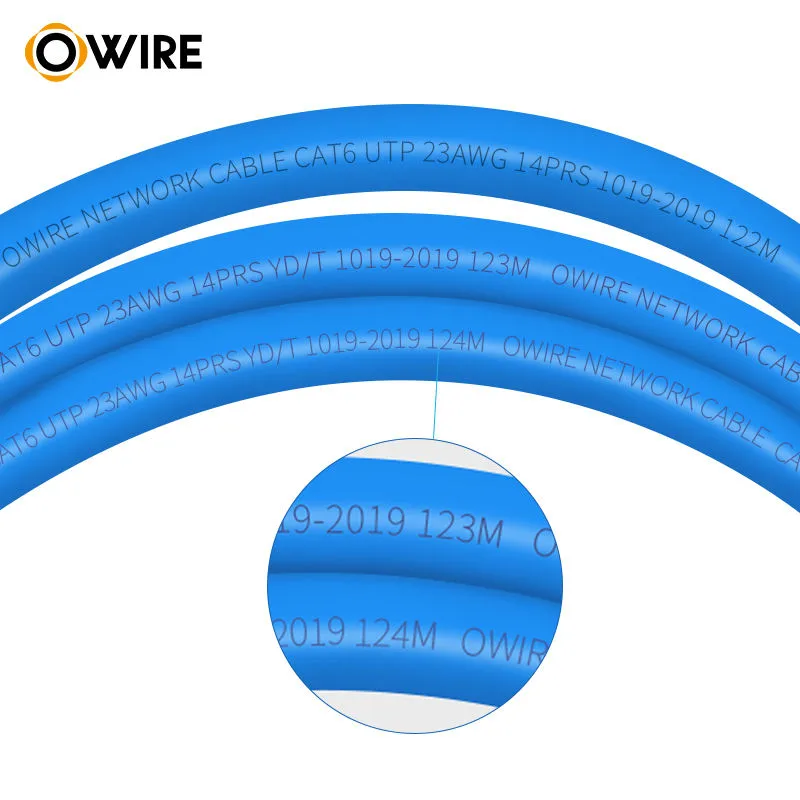

Printing Words on Cable | Customized | |||
Packing | 305m/1000ft, 500m with wooden reel, one roll one carton | |||
Certificates | CE, RoHS, FCC | |||
Operating Temperature | -40 °C – +70 °C | |||
Application | Computer/Switch/Hubs/Router | |||
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
