| Model Name: | PV1-F / H1Z2Z2-k | Size: | 1.5mm2–16mm2 |
|---|---|---|---|
| Rated Voltage: | 0.6/1 KV | Type: | 1.5kV DC |
| Conductor Type: | Stranded Tinned Copper | Sheath: | Sunlight Resistant PVC |
| Insulation: | XLPE | Application: | Power Station, PV Power Dc,ac System |
| High Light: | TUV 1.5mm2 XLPE Photovoltaic Cable, Pv1-F 1.5mm2 1.5kV DC Photovoltaic Cable | ||

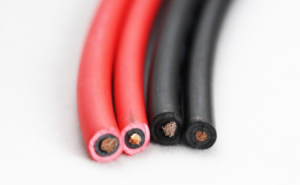

PV system AC and DC power cable h1z2z2-k 1X1.5mm2 High quality photovoltaic cable
Solar Cable
Application
Double insulation, electron-beam cross-linked cables for photovoltaic power station.
Especially for the connection between Solar power generation device connector and connection of inverter,Under the condition of different climate outdoor installation,and can adapt to the dry and wet indoor working environment
Construction
Conductor: Tinned copper, according to the VDE 0295/ IEC 60228,Class5
Insulation: Polyolefin copolymer electron-beam cross-linked
Outer Sheath: Polyolefin copolymer electron-beam cross-linked
Sheath color: Black/Red/Blue or as per customer’s requeit
Technical Specification
Nominal Votage: U0/U=600/1000VAC,1000/1800VDC
Test Voltage: 1.5kV DC
Temperature Rating:
-45ºC ~ +120ºC
-40°F ~ +257°F
Ambient temperature
-40ºC ~ +90ºC
-40°F ~+194°F
Max. Short circuit temperature:280ºC,+536°F
Bending Radius: Fixed installation>4X, Occasionally moved>5X
Material Properties/ Standards
Fire-resistance performance: IEC 60332-1
Smoke emission: IEC 61034; EN 50268-2
Low fire load: DIN 51900
Approvals: TUV 2PfG 1169/08.2007 PV1-F
Application standards: EN 50618:2014
Compressed Conductor easy for installation, UV – resistant , total protection for the cable
