एमपीओ से एलसी कैसेट 12 24 फाइबर एमपीओ/एमटीपी कैसेट

एमपीओ से एलसी कैसेट 12 24 फाइबर एमपीओ/एमटीपी कैसेट

We are a manufacturer of MPO to LC Cassette 12 24 Fiber MPO/MTP Cassette. We supply MPO to LC Cassette 12 24 Fiber MPO/MTP Cassette in competitive cost and short lead time. Our factory approved ISO9001:2015, and we have UL, CE, FCC, ROHS, CCC, CPR certificates. Our Optical Fiber Cable quality is excellent, price is unbeatable.

विशेषता

एमपीओ से एलसी कैसेट 12 24 फाइबर एमपीओ/एमटीपी कैसेट

मुख्य विशिष्टताएँ

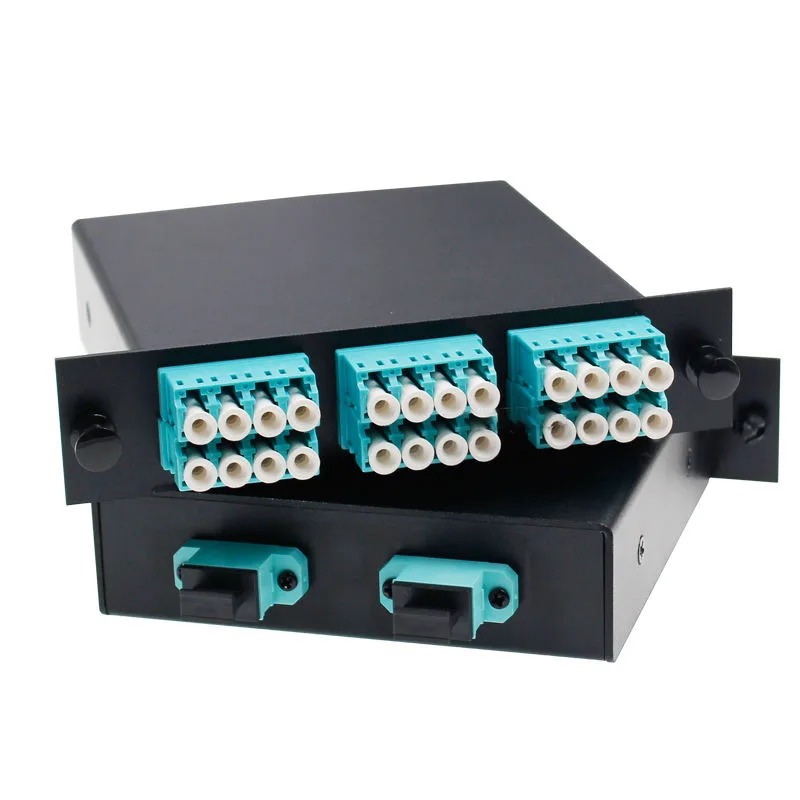

MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used  to interconnect MPO backbones with LC or SC patching.  Modular system allows for rapid deployment of high density  data centre infrastructure as well as improved troubleshooting and  reconfiguration during moves, adds and changes.  can be mounted  in 1U or 4U 19” multislot chassis.

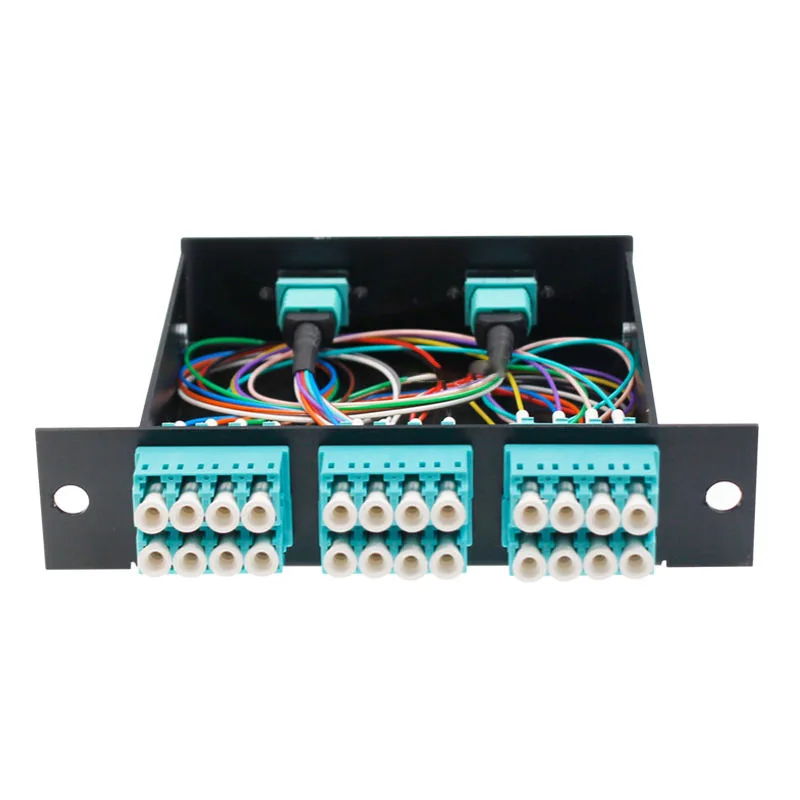

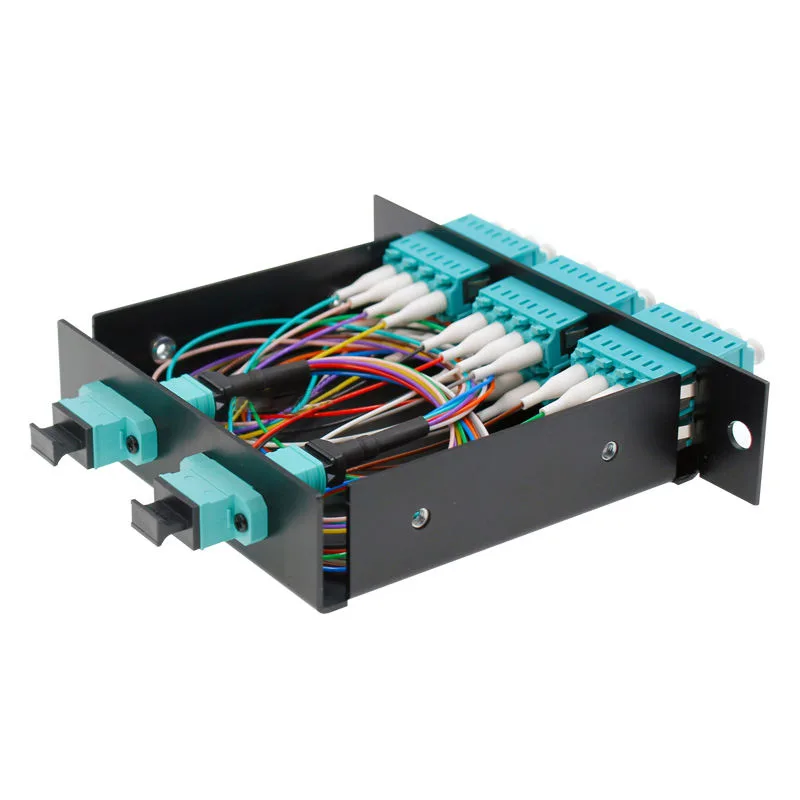

MPO Cassettes  contain factory controlled and tested  MPO-LC  fan-outs to deliver optical performance and reliability.  Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.

Advantage:

1,Versatile panel with extendable double slide rails for smooth sliding

2,1RU suitable 2-4pcs KNC standard adapter plates at different size

3,Silkscreen printing on the front aperture for fiber identification

4,Comprehensive accessory kit for cable entry and fiber management

5,Able to hold MTP (MPO) loaded cassettes

6,Customize design available

MTP/MPO Specifications:

     प्रकारSingle ModeSingle ModeMulti Mode
(APC Polish)(UPC Polish)(PC Polish)
फाइबर गिनती8,12,24 etc.8,12,24 etc.8,12,24 etc.
फाइबर प्रकारG652D,G657A1 etc.G652D,G657A1 etc.OM1,OM2,OM3 etc.
Maximum Insertion LossEliteStandardEliteStandardEliteStandard
Low LossLow LossLow Loss
≤0.35 dB≤0.75dB≤0.35 dB≤0.75dB≤0.35 dB≤0.60dB
वापसी हानि≥60 dB≥60 dBNA
Durability≥500 times≥500 times≥500 times
परिचालन तापमान-40℃ ~ +80℃-40℃ ~ +80℃-40℃ ~ +80℃
Test Wavelength1310nm1310nm1310nm

अक्सर पूछे जाने वाले प्रश्न

हाँ. हम 500 से अधिक कर्मचारियों के साथ वास्तविक निर्माता हैं।

हां, छोटा ऑर्डर उपलब्ध है। हम अपने ग्राहकों के नए प्रोजेक्ट का समर्थन करते हैं क्योंकि हम जानते हैं कि व्यवसाय हमेशा छोटे ऑर्डर से होता है।

लैन केबल के लिए 10 वर्ष, फ़ाइबर ऑप्टिक केबल के लिए 25 वर्ष

आमतौर पर 10-15 कार्य दिवसों के भीतर

लैन केबल, हमारा वार्षिक उत्पादन 500000*305m है
आउटडोर/इनडोर फाइबर ऑप्टिक केबल, हमारा वार्षिक उत्पादन 8,000,000 किलोमीटर है;
FTTH/FTTX/FTTA केबल, यह प्रति वर्ष 6,000,000 KM है;
पैच कॉर्ड/पिगटेल, यह प्रति वर्ष 12,400,000 टुकड़े हैं।

टी/टी, एल/सी, वेस्टर्न यूनियन और अली भुगतान।

हाँ. हम OEM और ODM सेवा प्रदान करते हैं। आप हमें अपनी ड्राइंग भेज सकते हैं या हम अपनी पेशेवर अनुकूलित टीम द्वारा डिज़ाइन बनाते हैं।
