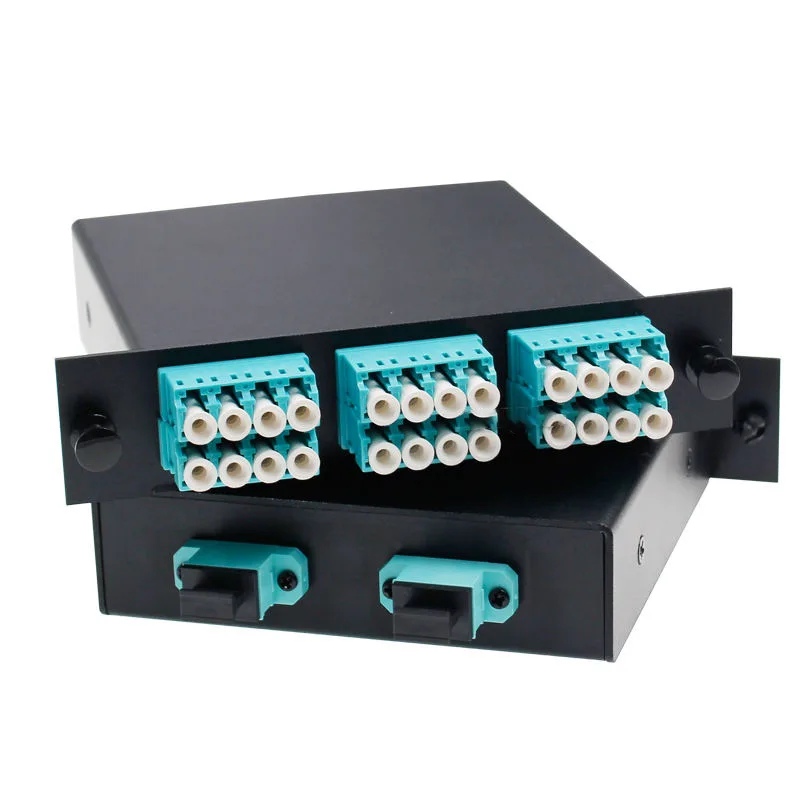

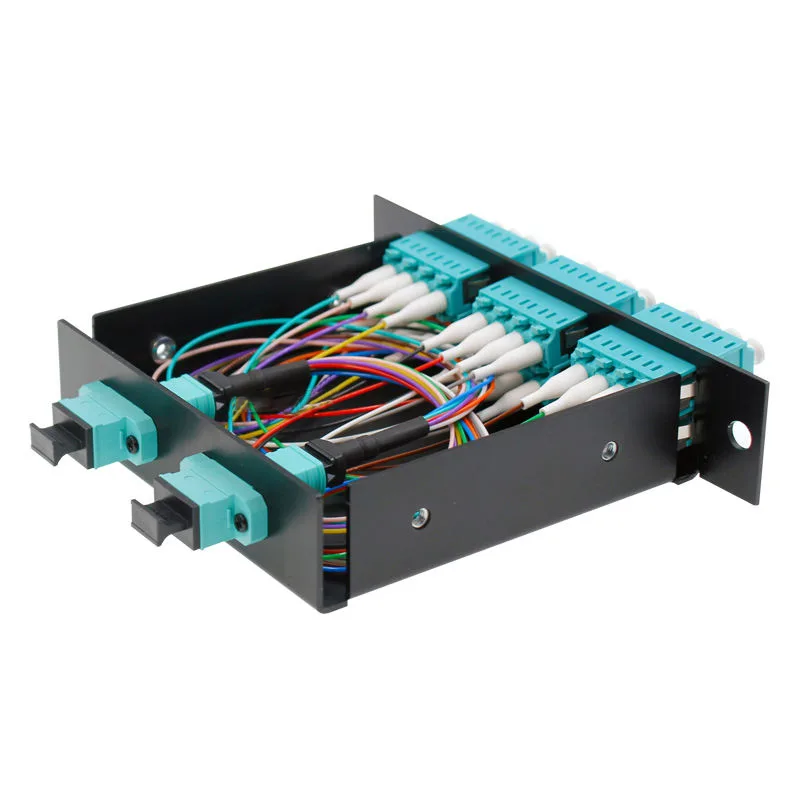

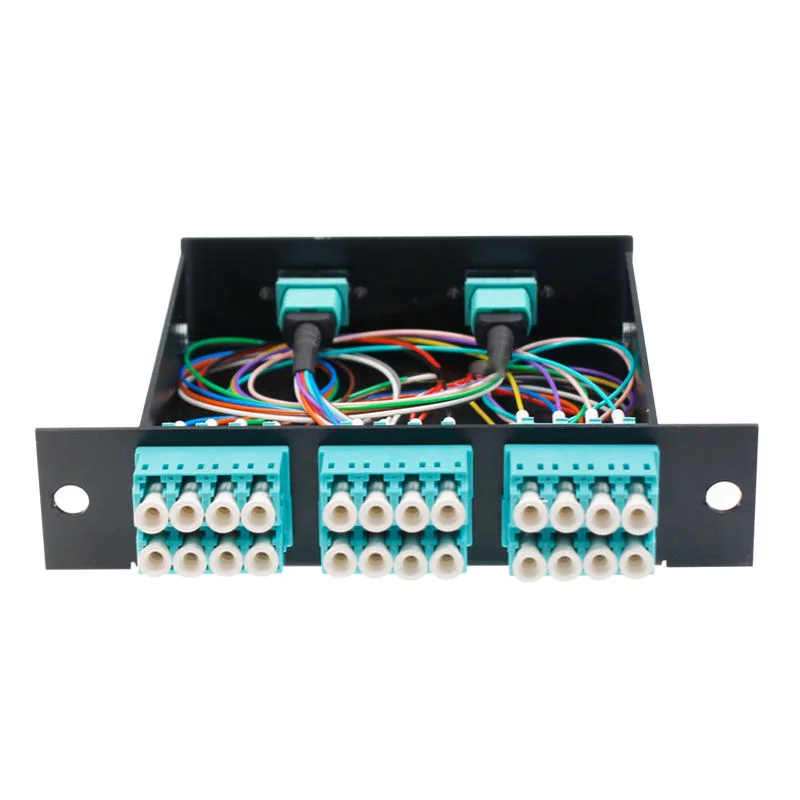

MPO to LC Cassette 12 24 Fiber MPO/MTP Cassette

We are a manufacturer of MPO to LC Cassette 12 24 Fiber MPO/MTP Cassette. We supply MPO to LC Cassette 12 24 Fiber MPO/MTP Cassette in competitive cost and short lead time. Our factory approved ISO9001:2015, and we have UL, CE, FCC, ROHS, CCC, CPR certificates. Our Optical Fiber Cable quality is excellent, price is unbeatable.

특징

핵심사양

MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching. Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 4U 19” multislot chassis.

MPO Cassettes contain factory controlled and tested MPO-LC fan-outs to deliver optical performance and reliability. Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.

Advantage:

1,Versatile panel with extendable double slide rails for smooth sliding

2,1RU suitable 2-4pcs KNC standard adapter plates at different size

3,Silkscreen printing on the front aperture for fiber identification

4,Comprehensive accessory kit for cable entry and fiber management

5,Able to hold MTP (MPO) loaded cassettes

6,Customize design available

MTP/MPO Specifications:

유형	Single Mode		Single Mode		Multi Mode
	(APC Polish)		(UPC Polish)		(PC Polish)
Fiber Count	8,12,24 etc.		8,12,24 etc.		8,12,24 etc.
섬유 종류	G652D,G657A1 etc.		G652D,G657A1 etc.		OM1,OM2,OM3 etc.
Maximum Insertion Loss	Elite	Standard	Elite	Standard	Elite	Standard
	Low Loss		Low Loss		Low Loss
	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.60dB
반사 손실	≥60 dB		≥60 dB		NA
Durability	≥500 times		≥500 times		≥500 times
작동 온도	-40℃ ~ +80℃		-40℃ ~ +80℃		-40℃ ~ +80℃
Test Wavelength	1310nm		1310nm		1310nm
