Fitur
- Wholesale MPO/MTP Cassette at unbeatable price

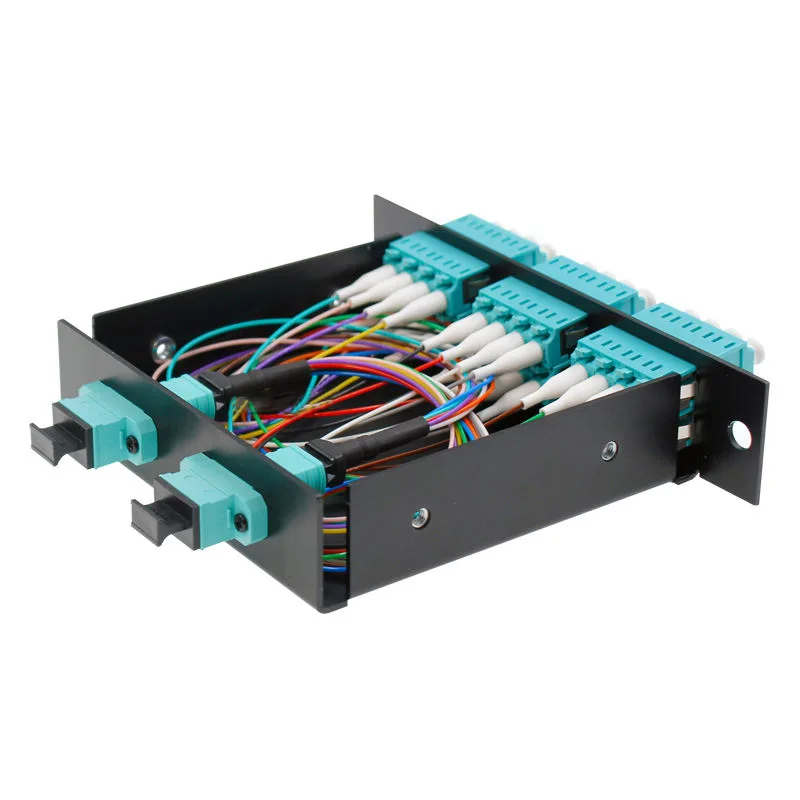

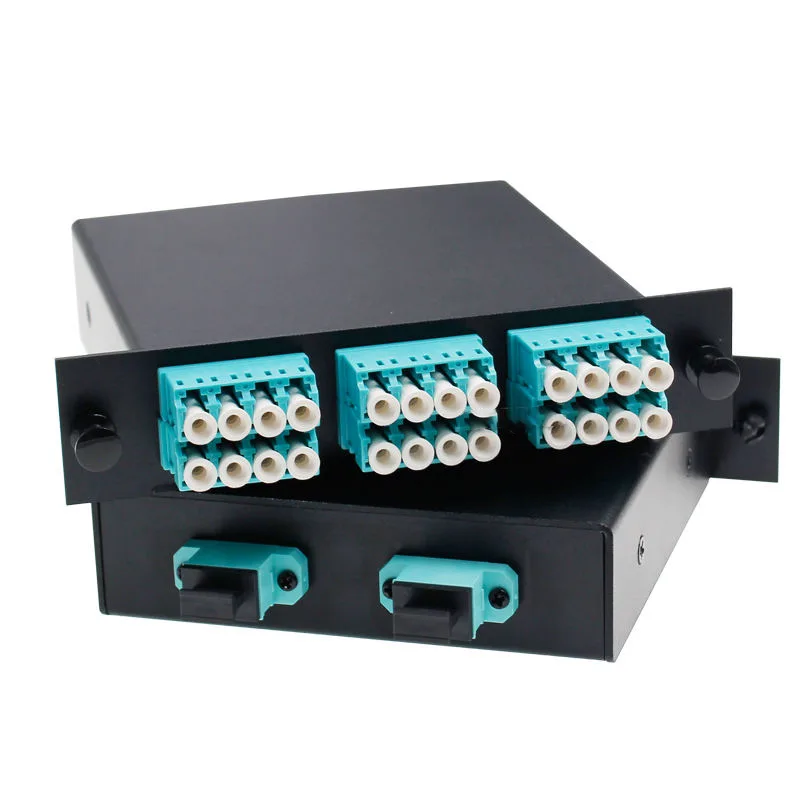

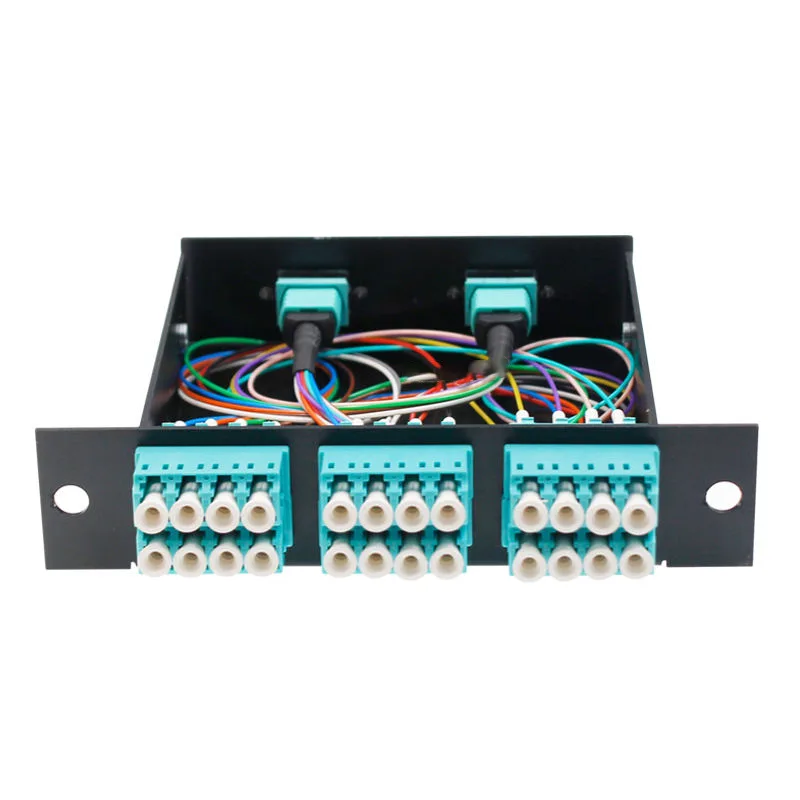

- MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors
- Versatile panel with extendable double slide rails for smooth sliding
- 1RU suitable 2-4pcs KNC standard adapter plates at different size
Spesifikasi Inti
MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching. Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 4U 19” multislot chassis.
MPO Cassettes contain factory controlled and tested MPO-LC fan-outs to deliver optical performance and reliability. Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.
Advantage:
1,Versatile panel with extendable double slide rails for smooth sliding
2,1RU suitable 2-4pcs KNC standard adapter plates at different size
3,Silkscreen printing on the front aperture for fiber identification
4,Comprehensive accessory kit for cable entry and fiber management
5,Able to hold MTP (MPO) loaded cassettes
6,Customize design available
MTP/MPO Specifications:
| Ketik | Single Mode | Single Mode | Multi Mode | |||
| (APC Polish) | (UPC Polish) | (PC Polish) | ||||
| Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. | |||
| Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. | |||
| Maximum Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| Low Loss | Low Loss | Low Loss | ||||
| ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB | |
| Return Loss | ≥60 dB | ≥60 dB | NA | |||
| Daya tahan | ≥500 times | ≥500 times | ≥500 times | |||
| Suhu Operasional | -40℃ ~ +80℃ | -40℃ ~ +80℃ | -40℃ ~ +80℃ | |||
| Test Wavelength | 1310nm | 1310nm | 1310nm | |||
Pertanyaan Umum
Ya. Kami adalah produsen nyata dengan lebih dari 500 staf.
Sejak tahun 2001.
Ya, pesanan kecil tersedia. Kami mendukung proyek baru pelanggan kami karena kami tahu bisnis selalu dimulai dari pesanan kecil.
10 tahun untuk kabel Lan, 25 tahun untuk kabel serat optik
ISO9001, SGS, UL, CPR, CE, RoHs
Biasanya dalam 10-15 hari kerja
Kabel Lan, keluaran tahunan kami adalah 500000*305m
Kabel Serat Optik Luar Ruangan/Dalam Ruangan, hasil tahunan kami adalah 8.000.000 KM;
Kabel FTTH/FTTX/FTTA, 6.000.000 KM per tahun;
Patch Cord/Pigtails, 12.400.000 Potongan per tahun.
T/T, L/C, Western Union dan Ali membayar.
Ya. Kami menyediakan layanan OEM & ODM. Anda dapat mengirimkan gambar Anda kepada kami atau kami membuat desain oleh tim profesional kami yang disesuaikan.
