Özellik
- Wholesale MPO/MTP Cassette at unbeatable price
- MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors
- Versatile panel with extendable double slide rails for smooth sliding
- 1RU suitable 2-4pcs KNC standard adapter plates at different size
Temel Özellikler

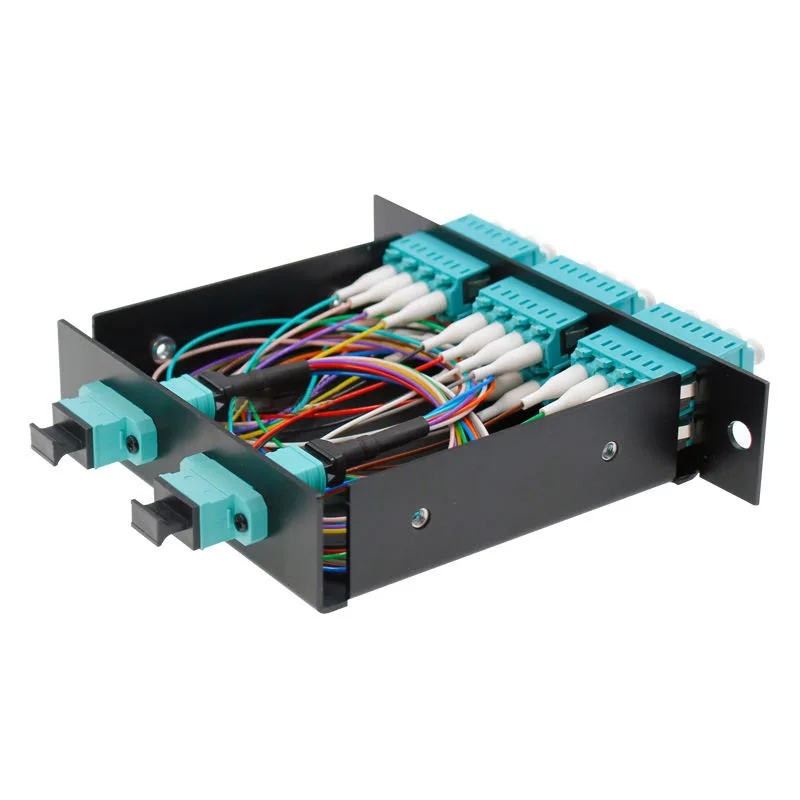

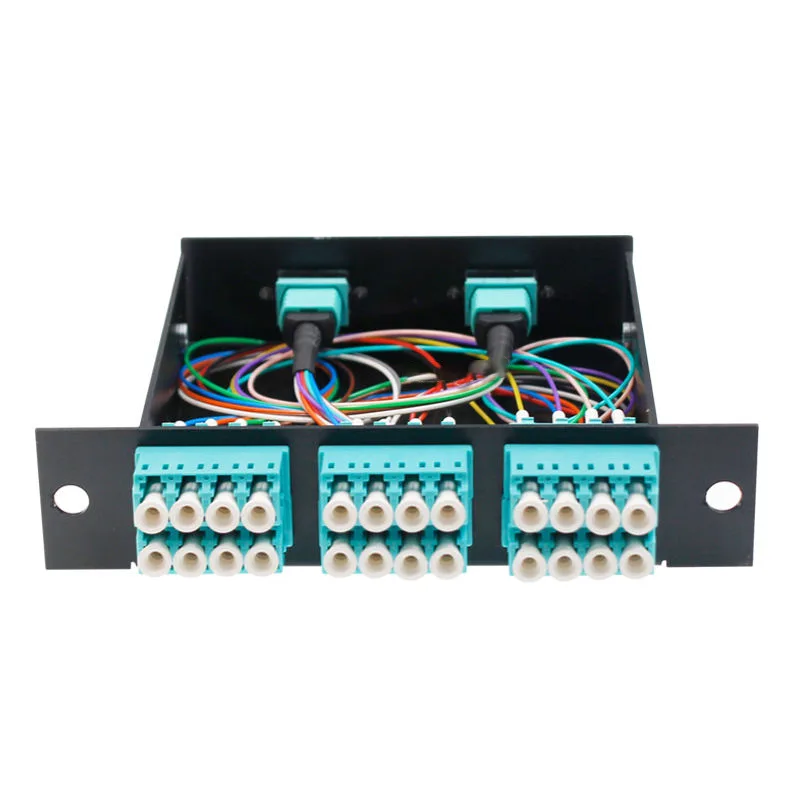

MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching. Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 4U 19” multislot chassis.
MPO Cassettes contain factory controlled and tested MPO-LC fan-outs to deliver optical performance and reliability. Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.
Advantage:
1,Versatile panel with extendable double slide rails for smooth sliding
2,1RU suitable 2-4pcs KNC standard adapter plates at different size
3,Silkscreen printing on the front aperture for fiber identification
4,Comprehensive accessory kit for cable entry and fiber management
5,Able to hold MTP (MPO) loaded cassettes
6,Customize design available
MTP/MPO Specifications:
| Tür | Single Mode | Single Mode | Multi Mode | |||
| (APC Polish) | (UPC Polish) | (PC Polish) | ||||
| Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. | |||
| Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. | |||
| Maximum Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| Low Loss | Low Loss | Low Loss | ||||
| ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB | |
| Return Loss | ≥60 dB | ≥60 dB | NA | |||
| Durability | ≥500 times | ≥500 times | ≥500 times | |||
| Operating Temperature | -40℃ ~ +80℃ | -40℃ ~ +80℃ | -40℃ ~ +80℃ | |||
| Test Wavelength | 1310nm | 1310nm | 1310nm | |||
SSS
Evet. 500'den fazla çalışanımızla gerçek üreticiyiz.
Evet, küçük siparişler mevcuttur. İşin her zaman küçük siparişlerden oluştuğunu bildiğimiz için müşterilerimizin yeni projelerini destekliyoruz.
Lan kablosu için 10 yıl, fiber optik kablo için 25 yıl
ISO9001, SGS, UL, CPR, CE, RoHs
Genellikle 10-15 iş günü içinde
Lan Kablosu, yıllık üretimimiz 500000*305m
Dış Mekan/İç Mekan Fiber Optik Kablo, yıllık üretimimiz 8.000.000 KM;
FTTH/FTTX/FTTA Kablosu, yılda 6.000.000 KM'dir;
Patch Cord/Pigtails, yılda 12.400.000 Adettir.
T/T, L/C, Western Union ve Ali ödeme yapar.
Evet. OEM ve ODM hizmeti veriyoruz. Çiziminizi bize gönderebilir veya profesyonel özelleştirilmiş ekibimiz tarafından tasarım yapabiliriz.
