Feature
- Wholesale MPO/MTP Cassette at unbeatable price
- MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors
- Versatile panel with extendable double slide rails for smooth sliding
- 1RU suitable 2-4pcs KNC standard adapter plates at different size
Core Specifications

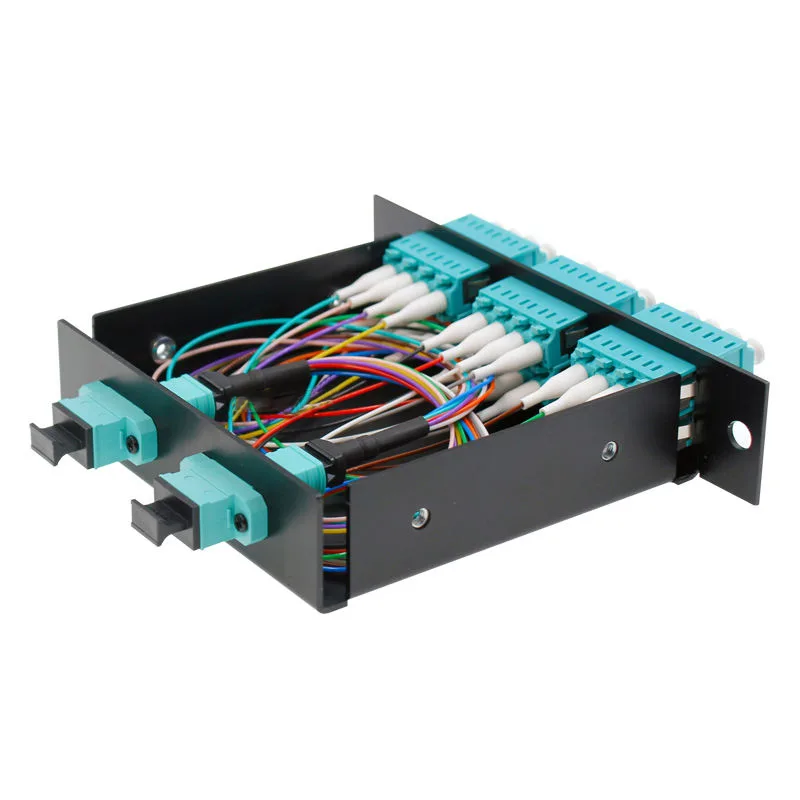

MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching. Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 4U 19” multislot chassis.
MPO Cassettes contain factory controlled and tested MPO-LC fan-outs to deliver optical performance and reliability. Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.
Advantage:
1,Versatile panel with extendable double slide rails for smooth sliding
2,1RU suitable 2-4pcs KNC standard adapter plates at different size
3,Silkscreen printing on the front aperture for fiber identification
4,Comprehensive accessory kit for cable entry and fiber management
5,Able to hold MTP (MPO) loaded cassettes
6,Customize design available
MTP/MPO Specifications:
| 类型 | Single Mode | Single Mode | Multi Mode | |||
| (APC Polish) | (UPC Polish) | (PC Polish) | ||||
| Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. | |||
| Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. | |||
| Maximum Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| Low Loss | Low Loss | Low Loss | ||||
| ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB | |
| Return Loss | ≥60 dB | ≥60 dB | NA | |||
| Durability | ≥500 times | ≥500 times | ≥500 times | |||
| Operating Temperature | -40℃ ~ +80℃ | -40℃ ~ +80℃ | -40℃ ~ +80℃ | |||
| Test Wavelength | 1310nm | 1310nm | 1310nm | |||
FAQ
Yes. We are the real manufacturer with more than 500 staff.
Yes, small order is available .We support new project of our customers as we know business is always from small order.
10 years for Lan cable , 25 years for fiber optic cable
ISO9001, SGS, UL, CPR, CE, RoHs
Usually within 10-15 working days
Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
T/T, L/C, Western Union and Ali pay.
Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
