Funkcja
- we can custom fiber cable structure, fiber count, length, package for you.
- cena bezkonkurencyjna
- Shortest delivery time for you, we produce 2000KM / day
- Can be installed without shutting off the power
- Excellent AT performance.The maximum inductive at the operating point of AT sheath can reach 25kV
- Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
- Good performance of tensile strength and temperature
- The design life span is over 30 years
Podstawowe specyfikacje
Fiber core can be customized.

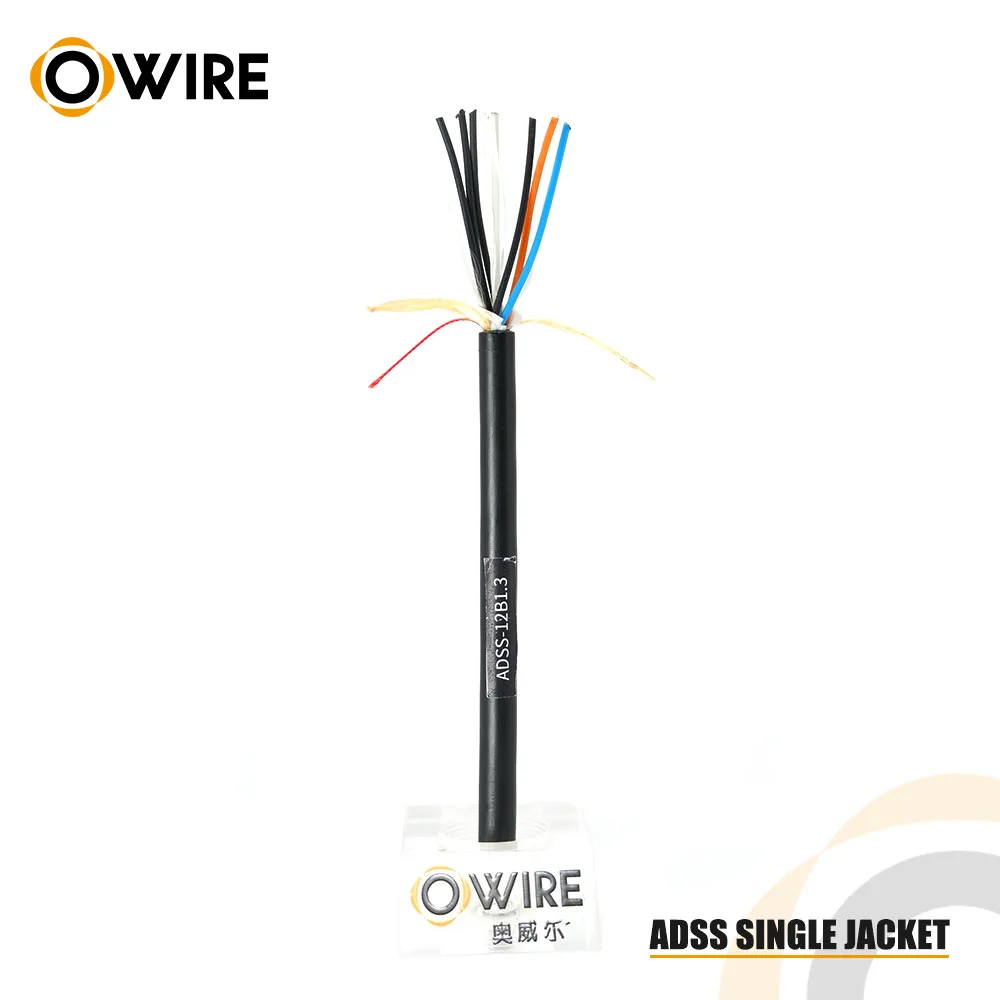

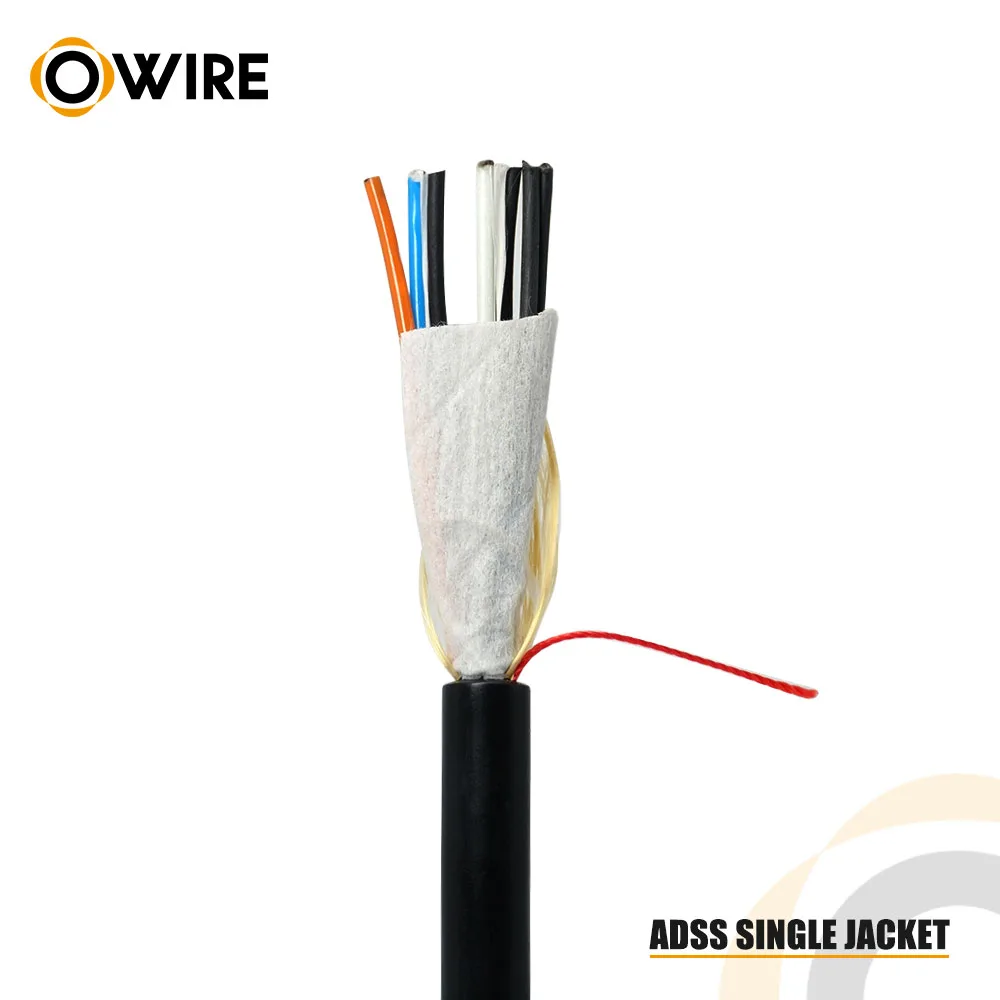

ADSS cable is loose tube stranded.The 250μm fibers are positioned into a loose tube made of high modulus plastics.The tubes are filled with a water-resistant filling compound.The tubes and possible fillers are stranded around a FRP (fiber Reinforced Plastic)as a non-metallic central strength member into a compact and circular cable core.After the cable core is filled with filling compound,it is can be covered with thin PE(polyethylene)inner sheath.After stranded layer of aramid yarns are applied over the cable core or inner sheath as strength member,the cable is sheathed by PE or AT(anti-tracking)material.
Characteristics
- Can be installed without shutting off the power
- Excellent AT performance.The maximum inductive at the operating point of AT sheath can reach 25kV
- Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
- Large span lengths and the largest span is over 1000m
- Good performance of tensile strength and temperature
- The design life span is over 30 years
Aplikacje
Self-supporting aerial,especially applicable for installation on the same pole as 220V and below power transmission lines

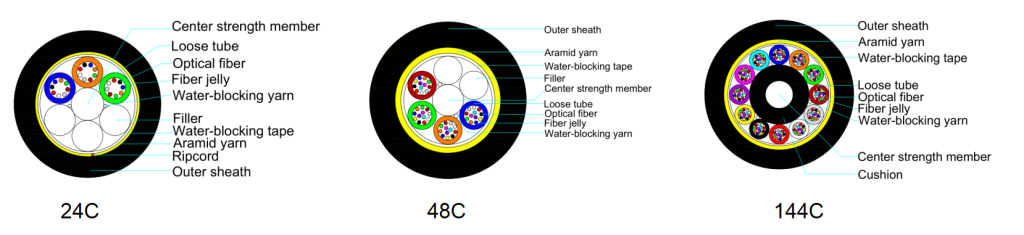

Structure
Items | Descriptions | |
Optical fiber | Kategoria | SM / MM |
Counts | 2-288 | |
Kolor | Blue 、Orange、Green、Brown、Gray、White、Red、Black、Yellow、Violet、Pink、Aqua | |
Loose tube | Material | PBT |
Kolor | Blue 、Orange、Green、Brown、Gray、White、Red、Black、Yellow、Violet、Pink、Aqua | |
Infilling | Fiber jelly | |
Center strength member | Material | FRP |
Red ripcord | 2*3000D(Red) | |
Water-blocking material | Water-blocking yarn and Water-blocking tape | |
Strength member | Aramid yarn | |
Outer sheath | Thickness（mm） | 1.7±0.1 |
Material | PE | |
Kolor | Black | |
Optical fiber characteristics：
Single mode
Kategoria | G652D （1310nm/1550nm） | G657A1 （1310nm/1550nm） | G657A2 （1310nm/1550nm） | |
Attenuation | Typical | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km |
Max | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | |
Zero dispersion slope | ≤0.091ps/km·nm2 | ≤0.092ps/km·nm2 | ≤0.092ps/km·nm2 | |
Chromatic dispersion（1285-1340nm） | -3.5-3.5ps/（nm·km） | -3.5-3.5ps/（nm·km） | -3.5-3.5ps/（nm·km） | |
MFD（@1310nm） | 9.2±0.4μm | 8.8±0.4μm | 8.8±0.4μm | |
Cut-off wavelength | ≤1260nm | ≤1260nm | ≤1260nm | |
Min bending Radius | 16mm | 10mm | 7.5mm | |
Cladding diameter | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
Multi mode
Kategoria | 62.5/125μm （850nm/1300nm） | 50/125μm （850nm/1300nm） | BIOM3 （850nm/1300nm） | BIOM4 （850nm/1300nm） | |
Attenuation | Typical | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km |
Max | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | |
Bandwidth（MHz·km） | ≥200/≥500 | ≥500/≥500 | ≥1500/≥500 | ≥3500/≥500 | |
Effective mode bandwidth（MHz·km） | —-/—- | —-/—- | ≥2000/—- | ≥4700/—- | |
Min bending Radius（mm） | 30 | 30 | 7.5 | 7.5 | |
Cladding diameter | 125±1.0μm | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
Mechanical and Environmental performance：
Items | Descriptions |
MAT | 1.2kN-4kN |
Crush resistance | 2200N/100mm |
Spans | 50-200m |
Min bending radius(“D” is the diameter of the cable) | Static：12.5D |
Dynamic：20D | |
Installation temperature | -20℃～﹢60℃ |
Operating temperature | -40℃～﹢70℃ |
The mechanical properties of other optical fibers and optical cables shall meet the international standards of IEC60793 or IEC60794 | |
