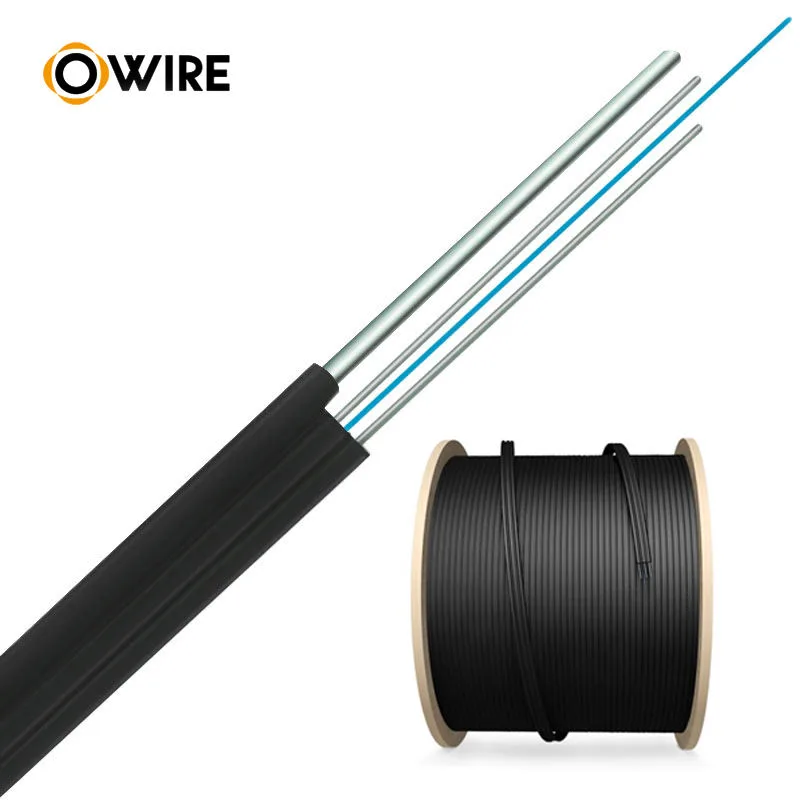

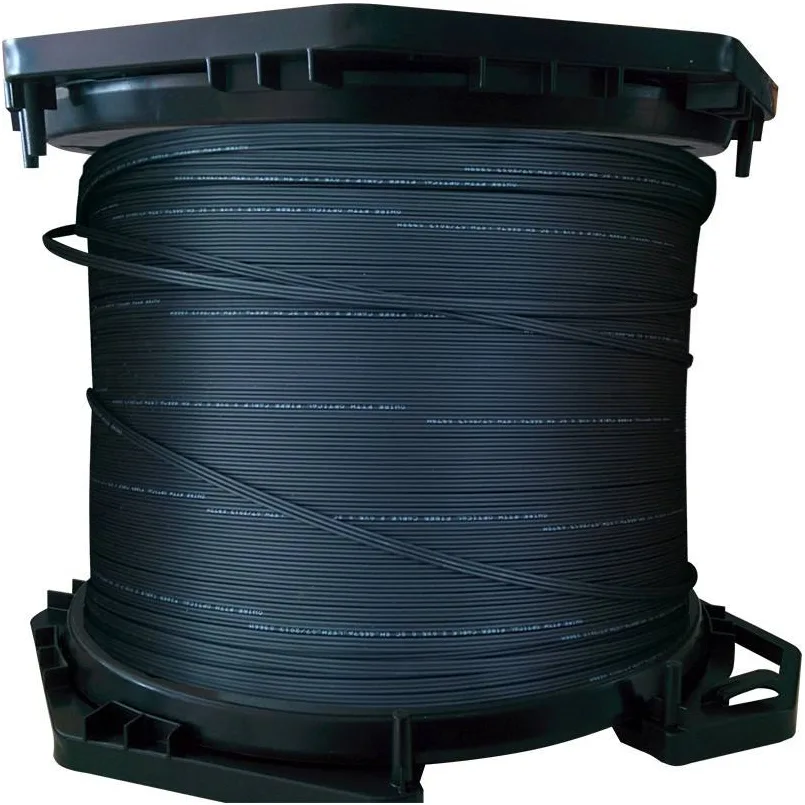

FTTH Aerial Outdoor Flat Drop Cable

FTTH Aerial Outdoor Flat Drop Cable

We are a manufacturer of FTTH fiber optic cable. We supply FTTH Cable in competitive cost and short lead time. Our factory approved ISO9001:2015, and we have UL, CE, FCC, ROHS, CCC, CPR certificates. Our FTTH fiber cable quality is excellent, price is unbeatable.
Product Attributes:
Model:
  • FTTH

Feature

FTTH Aerial Outdoor Flat Drop Cable

Core Specifications

FTTH Outdoor indoor Self-supporting Optical Fiber Drop Cable

Technical Parameters

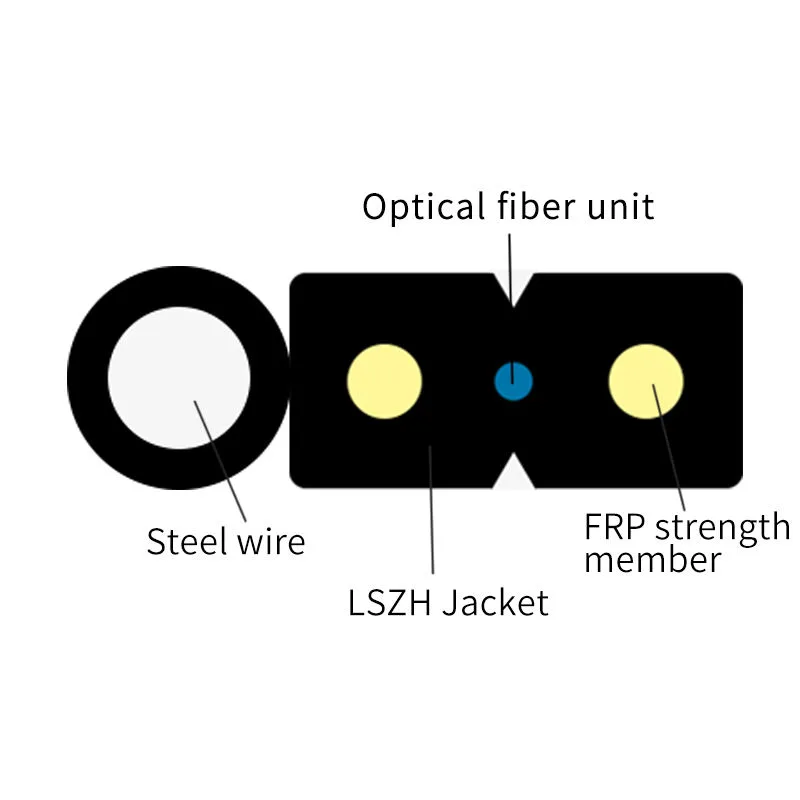

Construction
Jacket & Buffers
Jacket MaterialLSZH
Tight Buffer Fiber Diameter250μm ± 50μm
Strength MemberSteel Wire
Fiber Size9 / 125 micron
Buffer Diameters
Primary Buffer250μm ± 50μm
Cladding Diameter  (μm)125±1.0





Technical Data-Mechanical
Max. loading (IEC794-1)
Installation660N (with steel wire)
Operation300N (with steel wire)
Crush Resistance (IEC794-1)
Operation2200 N / 100mm
Min. Bend Radius (IEC794-1)
Operation15mm (without steel wire)
Temperature Rating Operation
Installation-20℃ to +60℃
Operation-20℃ to +60℃



Cable Dimensions
Fiber TypeG657A2
1310nm / 1550nm
AttenuationTypical0.36dB / 0.22dB
Maximum0.5dB / 0.4dB
Macro-bend induced attenuation (@1550nm)1 turn, 15mm diameter≤0.5dB
1 turn, 20mm diameter≤0.1dB
10 turn, 30mm diameter≤0.03dB
Zero Dispersion Slopeps/km·nm2≤0.092 ps/km·nm2
Mode Field Diameterμm8.8±0.4μm
Cutoff Wavelength Cablenm≤1260nm

FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
