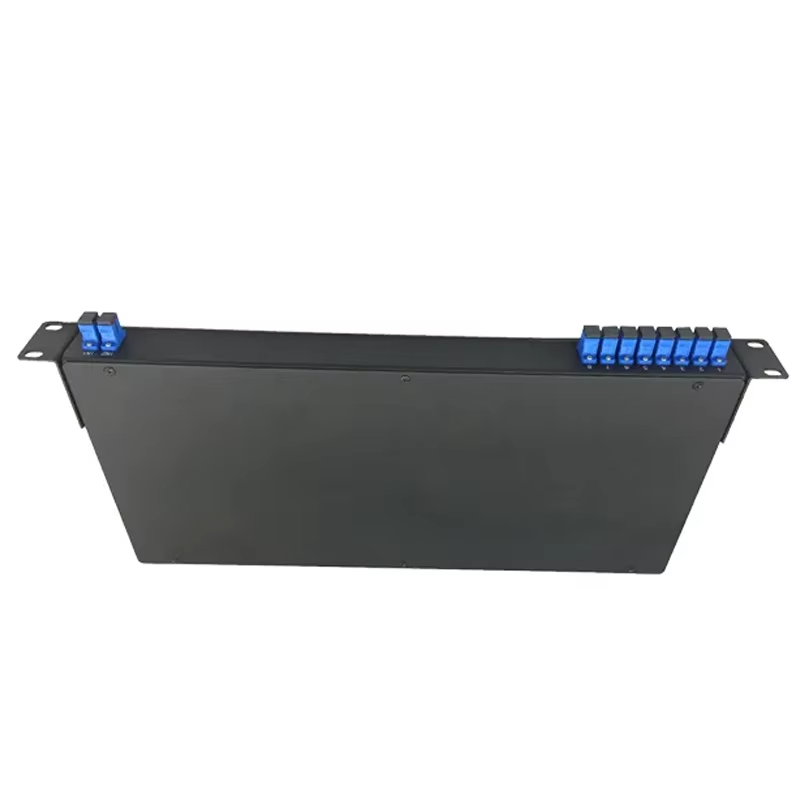

FTTH ODF Rack mount 1×8,  1×16,  1×32,  1×64,  Fiber Optic PLC Splitter

FTTH ODF Rack Mount 1×8, 1×16, 1×32, 1×64, Fiber Optic PLC Splitter

We are a manufacturer of FTTH ODF Rack Mount 1x8, 1x16, 1x32, 1x64, Fiber Optic PLC Splitter in competitive cost and short lead time. Our factory approved ISO9001:2015, and we have UL, CE, FCC, ROHS, CCC, CPR certificates. Our Optical Fiber Cable quality is excellent, price is unbeatable.

Feature

FTTH ODF Rack mount 1×8,  1×16,  1×32,  1×64,  Fiber Optic PLC Splitter

Core Specifications

Planar Lightwave Circuit (PLC) splitter is one type of optical power management device that is fabricated using silica optical waveguide technology. It features a small size, high reliability, wide operating wavelength range, and good channel-to-channel uniformity.

Also, PLC splitter is widely used in PON networks to realize optical signal power splitting.

Item1×21×41×81×161×321×641×128
Fiber TypeG.657.A
Working Wavelength1260nm~1650nm
Standard Insertion Loss (dB)≤4.4≤7.6≤10.9≤14.2≤17.4≤20.8≤24.2
Uniformity (dB)≤0.6≤0.8≤0.8≤1.0≤1.5≤2.0≤2.0
PDL (dB)≤0.2≤0.2≤0.3≤0.3≤0.3≤0.4≤0.5
Wavelength Dependent Loss≤0.6≤0.8≤0.8≤1.0≤1.5≤2.0≤2.0
(dB)
Return Loss (dB)APC≥55,UPC≥50
Directivity (dB)≥55
Operating Temp. Gange-40℃~ +85℃
Item2×22×42×82×162×322×642×128
Fiber TypeG.657.A
Working Wavelength1260nm~1650nm
Standard Insertion Loss (dB)≤4.6≤8.0≤11.1≤14.4≤17.6≤21.2≤24.6
Uniformity (dB)≤0.8≤1.0≤1.2≤1.5≤1.8≤2.0≤3.0
PDL (dB)≤0.2≤0.2≤0.3≤0.3≤0.3≤0.4≤0.5
Wavelength Dependent Loss (dB)≤0.8≤1.0≤1.2≤1.5≤1.8≤2.0≤3.0
Return Loss (dB)APC≥55,UPC≥50
Directivity (dB)≥55
Operating Temp. Gange-40℃~ +85℃
Item1×21×41×81×161×321×64
Length*Width*Height (mm)482*160*44.5482*160*89
Item2×22×42×82×162×322×64
Length*Width*Height (mm)482*160*44.5482*160*89

FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.
