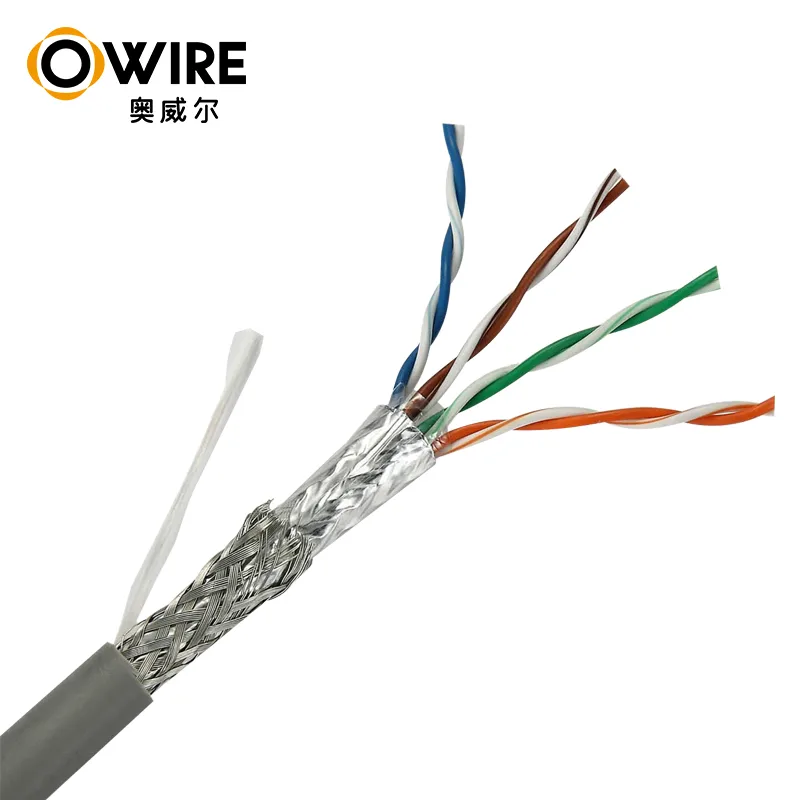

Owire Solid 26awg enhanced indoor Cat5e Cable S/FTP 305m Box

Connect your computers and peripheral equipment to the internet with this high-performance Ethernet cable. As this component is a Cat5e (category 5) type, it can transmit data at a rate of 1000Mbps (megabits per second), giving you high-speed communication. Its conductors are twisted together in pairs to prevent electromagnetic interference (EMI) for noiseless signal transmission.This cable is commonly used in both commercial and industrial settings.

Feature

2

Core Specifications

Structure:4P+MAB Twisted Pair
Conductor: Solid or stranded bare copper
Insulation:HD-PE
Inner Shielded: AL-Foil 125%(min) Coverage
Outer Shielded:Braiding 80%(min) Coverage
Jacket:PVC orLSZH
Rated Temperature:Temperature: 75C
lmpedance:100±15%Ω
Frequency:100MHz
Reference Standard: YD/T1019-2001、ISO/IEC11801 ANSI/TIA/EIA-568B、UL444
Flame Retardancy Standard:  CM、CMR

FAQ

Yes. We are the real manufacturer with more than 500 staff.

Yes, small order is available .We support new project of our customers as we know business is always from small order.

10 years for Lan cable , 25 years for fiber optic cable

ISO9001, SGS, UL, CPR, CE, RoHs

Usually within 10-15 working days

Lan Cable,our annual output is 500000*305m
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

T/T, L/C, Western Union and Ali pay.

Yes. We supply OEM&ODM service. You can send us your drawing or we make design by our professional customized team.

Related Product

We are a manufacturer of Fig8 Aerial, Central Loose Tube FTTH Fiber Optic Fiber Cable GYXTC8Y-2/4/6/8/12B1.3. We supply fiber optic Cable in competitive cost and short lead time. Our factory approved ISO9001:2015, and we have UL, CE, FCC, ROHS, CCC, CPR certificates. Our Optical Fiber Cable quality is excellent, price is unbeatable.
Solid conductor 4 pair UTP cable with PVC or LSZH outer sheath. Each cable consists of 8 colour coded polyethylene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs, together with a strong nylon rip cord are jacketed in either Purple, Orange Grey or Blue PVC/LSZH material, which complies with the requirements of IEC332-1. The printing detail on the sheath, includes the cables part number, specification details and a 305-0 reverse metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box.
We are a manufacturer of MTP PRO 8-144 Fibers MTP 12 Fibers OS2 Single Mode Trunk Cable . We supply MPO / MTP fiber optic patch cord cables. in competitive cost and short lead time. Our factory approved ISO9001:2015, and we have UL, CE, FCC, ROHS, CCC, CPR certificates. Our Optical Fiber Cable quality is excellent, price is unbeatable.
